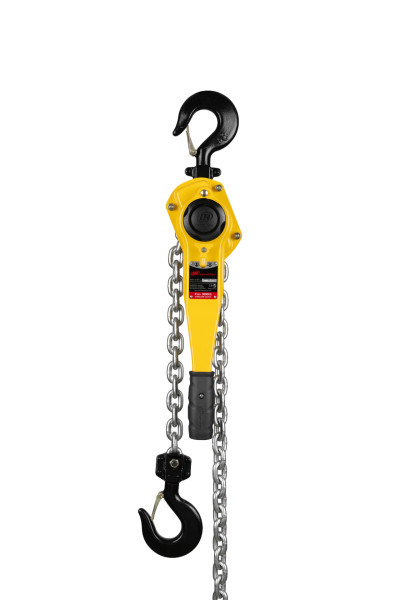

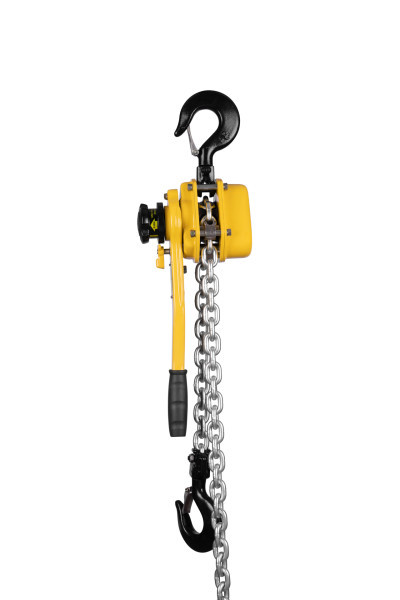

Ingersoll Rand KL300VS KL Kinetic Series Lever Chain Hoist | 3 Ton Capacity | 1 Chain Falls | Overload Protection with Shipyard Hook

Built for demanding manual lifting, pulling, positioning, tensioning, and rigging applications, the Ingersoll Rand KL300VS Kinetic Series Lever Chain Hoist provides a 3 metric ton (6,600 lb) rated capacity with 1 chain fall, overload protection, and a shipyard hook. The V designation identifies the optional overload clutch, while the S designation identifies the shipyard-hook option. Full bearing construction on the load sprocket and pinion shaft helps reduce pull effort, and the compact Kinetic Series design accommodates applications where available operating space is limited.

KL300 specifications include 83.6 lb of pull to lift the rated load and premium-grade 100 electro-galvanized load chain weighing 1.48 lb per foot. All-steel construction, a reinforced double-pawl brake with large-diameter pawl springs, heavy-duty cast hook latches, and extensive use of bearings are part of the Kinetic Series design. The base KL300VS SKU does not specify a lift length; lift is selected separately in the manufacturer's ordering format. The catalog specifically notes that the overload clutch is optional on all capacities and that shipyard hooks are available with 1.5 ton and 3.0 ton capacities only.

Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL300VS | Capacity: 3 Metric Tons (6,600 lb) | Lift: Not Specified on Base Model | Chain Falls: 1 | Overload Protection: Overload Clutch | Hook Configuration: Shipyard Hook | Pull to Lift Rated Load: 83.6 lb | Load Chain: Premium Grade 100 Electro-Galvanized | Chain Weight: 1.48 lb/ft | Shipping Weight with 10' Lift: 31.3 lb

Features:

• Overload clutch provides the overload-protection option identified by the V designation.
• Shipyard hook provides the S-designated hook configuration offered for the 3 metric ton Kinetic Series capacity.
• All-steel construction provides the specified Kinetic Series construction.
• Reinforced double-pawl brake with large-diameter pawl springs provides a highly dependable braking system.
• Single chain fall is specified through 3 metric tons.
• Full bearing construction on the load sprocket and pinion shaft reduces pull effort and supports longer service life.
• Premium-grade 100 electro-galvanized chain provides exceptional corrosion resistance for increased durability.
• Heavy-duty cast hook latches are designed for less latch replacement.
• Compact construction accommodates applications where available operating space is limited.
• CE certified; the manufacturer states that the hoists meet or exceed regional requirements including ASME B30.21 and HST-3M.

Applications:

• Industrial maintenance and MRO — manually lifting and positioning compatible machinery, components, and equipment within the 6,600 lb rated capacity.
• Rigging and material handling — controlling compatible loads during positioning, tensioning, and general manual lifting operations.
• Fabrication and shop work — positioning components where a 3 metric ton lever hoist is appropriate.
• Construction and field service — handling compatible loads where portable manual lifting equipment is required.
• Shipyard and marine-related lifting applications — using the specified shipyard-hook configuration where appropriate for the application and load.
• Restricted-space lifting — the compact Kinetic Series design accommodates applications where available operating space is limited.

FAQs:

• Q: What is the capacity of the KL300VS?
  A: The KL300VS is rated for 3 metric tons, equivalent to 6,600 lb.
• Q: What does the V designation mean?
  A: V identifies the overload-protection option. For the Kinetic Series, this option is an overload clutch.
• Q: What does the S designation mean?
  A: S identifies the shipyard-hook option. The manufacturer states that shipyard hooks are available with 1.5 ton and 3.0 ton capacities only.
• Q: Does the KL300VS include overload protection?
  A: Yes. The V designation specifies the overload clutch option for this configuration.
• Q: Does the KL300VS include a shipyard hook?
  A: Yes. The S designation identifies the shipyard-hook configuration.
• Q: How many chain falls does the KL300VS have?
  A: The KL300VS uses 1 chain fall. The manufacturer specifies single-chain-fall construction through 3 metric tons.
• Q: Does KL300VS specify a lift length?
  A: No. KL300VS identifies the KL300 with the V overload-clutch and S shipyard-hook options. A specific lift length is selected separately.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 83.6 lb of pull to lift the rated 6,600 lb load.
• Q: What type of chain does the KL300VS use?
  A: It uses premium-grade 100 electro-galvanized load chain with a listed weight of 1.48 lb per foot.
