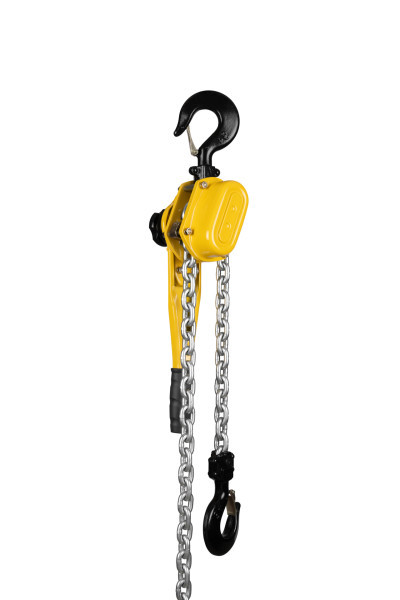

Ingersoll Rand KL300 KL Kinetic Series Lever Chain Hoist | 3 Ton Capacity | 1 Chain Falls

Built for manual lifting, pulling, positioning, tensioning, and rigging, the Ingersoll Rand KL300 Kinetic Series Lever Chain Hoist provides a 3 metric ton (6,600 lb) rated capacity with 1 chain fall. Its compact design is intended for tight working spaces, while full bearing construction on the load sprocket and pinion shaft helps reduce pull effort and support longer service life. The single-chain-fall configuration through 3 metric tons also reduces chain weight compared with higher-capacity multi-fall models.

The KL300 requires 83.6 lb of pull to lift the rated load and uses premium-grade 100 electro-galvanized load chain weighing 1.48 lb per foot. Heavy-duty cast hook latches, a corrosion-resistant finish, ergonomic handle grip, and a fused brake disc support practical manual operation. The base KL300 model does not specify a lift length or overload-clutch option; the manufacturer uses separate ordering options for lift and overload protection.

Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL300 | Capacity: 3 Metric Tons (6,600 lb) | Lift: Not Specified on Base Model | Chain Falls: 1 | Pull to Lift Rated Load: 83.6 lb | Load Chain: Premium Grade 100 Electro-Galvanized | Chain Weight: 1.48 lb/ft | Shipping Weight with 10' Lift: 31.3 lb

Features:

• Heavy-duty cast hook latches are designed for less latch replacement.
• Corrosion-resistant finish provides additional durability.
• Ergonomic handle grip helps reduce operator fatigue during manual operation.
• Single chain fall provides the specified lifting configuration through 3 metric tons.
• Full bearing construction on the load sprocket and pinion shaft reduces chain pull effort and supports longer life.
• Fused brake disc provides exceptional long brake life.
• Premium-grade 100 electro-galvanized chain provides exceptional corrosion resistance for increased durability.
• Compact design accommodates applications where available operating space is limited.
• CE certified; the manufacturer states that the hoists meet or exceed regional requirements including ASME B30.21 and HST-3M.

Applications:

• Industrial maintenance and MRO — manually lifting and positioning machinery, components, and equipment within the 6,600 lb rated capacity.
• Rigging and material handling — controlling compatible loads during positioning, tensioning, and general manual lifting operations.
• Fabrication and shop work — positioning components where a 3 metric ton manual lever hoist is appropriate.
• Construction and field service — handling compatible loads where portable manual lifting equipment is required.
• Restricted-space lifting — the compact Kinetic Series design accommodates applications where available operating space is limited.

FAQs:

• Q: What is the capacity of the KL300?
  A: The KL300 is rated for 3 metric tons, equivalent to 6,600 lb.
• Q: How many chain falls does the KL300 have?
  A: The KL300 uses 1 chain fall. The manufacturer specifies single-chain-fall construction through 3 metric tons.
• Q: Does the KL300 include a specific lift length?
  A: No specific lift length is identified by the base KL300 model. Lift length is selected separately using the Kinetic Series ordering format.
• Q: Does the KL300 include overload protection?
  A: The manufacturer states that the overload clutch is optional on all capacities. Because the base SKU is KL300 without the V option, overload protection has not been represented as included.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 83.6 lb of pull to lift the rated 6,600 lb load.
• Q: What type of chain does the KL300 use?
  A: It uses premium-grade 100 electro-galvanized load chain with a listed weight of 1.48 lb per foot.
• Q: What is the shipping weight of the KL300?
  A: The manufacturer lists 31.3 lb shipping weight with 10 ft of lift.
