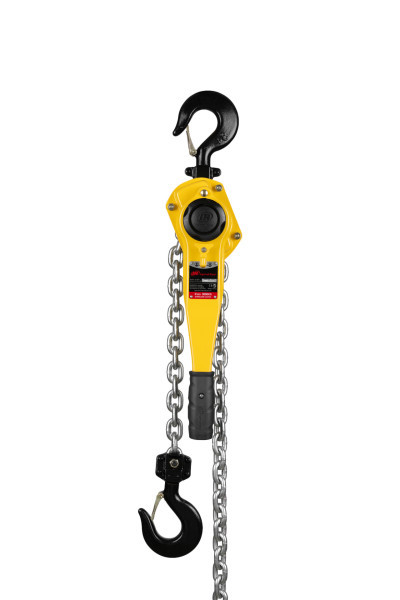

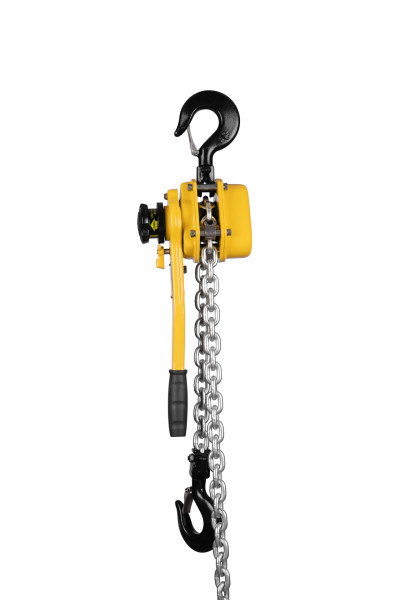

Designed for manual lifting, pulling, positioning, tensioning, and rigging, the Ingersoll Rand KL300-5 Kinetic Series Lever Chain Hoist provides a 3 metric ton (6,600 lb) rated capacity with a 5 ft lift and 1 chain fall. Its compact design is suited to tight working spaces, while full bearing construction on the load sprocket and pinion shaft helps reduce chain pull effort and support longer service life. The manufacturer specifies single-chain-fall construction through 3 metric tons, keeping the lifting configuration straightforward for this capacity.
The KL300 requires 83.6 lb of pull to lift the rated load and uses premium-grade 100 electro-galvanized load chain weighing 1.48 lb per foot. Heavy-duty cast hook latches, a corrosion-resistant finish, ergonomic handle grip, and a fused brake disc support manual operation. The 5 ft lift identifies the selected lifting distance for this SKU. An overload clutch is optional on all capacities, but the standard KL300-5 designation does not specify the overload-protection option.
Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL300-5 | Capacity: 3 Metric Tons (6,600 lb) | Lift: 5 ft | Chain Falls: 1 | Pull to Lift Rated Load: 83.6 lb | Load Chain: Premium Grade 100 Electro-Galvanized | Chain Weight: 1.48 lb/ft | Shipping Weight with 10' Lift: 31.3 lb
Features:
- Heavy-duty cast hook latches are designed to reduce latch replacements.
- Corrosion-resistant finish provides additional durability.
- Ergonomic handle grip helps reduce operator fatigue during manual operation.
- Single chain fall through 3 metric tons provides the specified lifting configuration.
- Full bearing construction on the load sprocket and pinion shaft reduces chain pull effort and supports longer service life.
- Fused brake disc provides exceptional long brake life.
- Premium-grade 100 electro-galvanized chain provides exceptional corrosion resistance for increased durability.
- Compact design accommodates applications where available operating space is limited.
- CE-certified construction meets or exceeds regional requirements including ASME B30.21 and HST-3M.
Applications:
- Industrial maintenance and MRO — manually lifting and positioning machinery, components, and equipment within the 6,600 lb rated capacity.
- Rigging and material handling — controlling compatible loads during positioning, tensioning, and general manual lifting operations.
- Fabrication and shop work — positioning components where a 3 metric ton lever hoist with a 5 ft lift is appropriate.
- Construction and field service — handling compatible loads where portable manual lifting equipment is required.
- Short-lift applications — the 5 ft configuration provides the specified vertical travel where a longer lift is unnecessary.
- Restricted-space lifting — the compact Kinetic Series design accommodates applications where available operating space is limited.
FAQs:
- Q: What is the capacity of the KL300-5?
A: The KL300-5 is rated for 3 metric tons, equivalent to 6,600 lb. - Q: What does the 5 ft lift mean?
A: The 5 ft specification identifies the lift configuration of this KL300 lever chain hoist. - Q: How many chain falls does the KL300-5 have?
A: The KL300-5 uses 1 chain fall. Ingersoll Rand specifies single-chain-fall construction through 3 metric tons. - Q: How much pull is required to lift the rated load?
A: The manufacturer specifies 83.6 lb of pull to lift the rated 6,600 lb load. - Q: What type of chain does the KL300-5 use?
A: It uses premium-grade 100 electro-galvanized load chain with a listed weight of 1.48 lb per foot. - Q: Does the KL300-5 include overload protection?
A: No overload-protection option is specified by the standard KL300-5 designation. The manufacturer identifies the overload clutch as optional on all capacities. - Q: What is the shipping weight of the KL300-5?
A: The catalog lists 31.3 lb shipping weight with 10 ft of lift. A separate shipping-weight figure for the 5 ft configuration is not provided.
| SKU | CAPACITY | NUMBER OF FALLS | PULL TO LIFT RATED LOAD | CHAIN WEIGHT | SHIPPING WEIGHT WITH 10' OF LIFT | ||||
|---|---|---|---|---|---|---|---|---|---|
| LBS | METRIC TONS | LB | KG | LB/FT | KG/FT | LB | KG | ||
| KL075 | 1,650 | 0.75 | 1 | 48.3 | 21.9 | 0.47 | 0.21 | 13.4 | 6.1 |
| KL100 | 2,200 | 1 | 1 | 66.1 | 30 | 0.47 | 0.21 | 13.9 | 6.3 |
| KL150 | 3,300 | 1.5 | 1 | 68.1 | 30.9 | 0.74 | 0.34 | 18.7 | 8.5 |
| KL300 | 6,600 | 3 | 1 | 83.6 | 37.9 | 1.48 | 0.67 | 31.3 | 14.2 |
| KL600 | 13,200 | 6 | 2 | 85.9 | 39 | 2.95 | 1.34 | 58.6 | 26.6 |
| KL900 | 19,800 | 9 | 3 | 88.1 | 40 | 4.43 | 2.01 | 102.5 | 46.5 |
Looking for more information about the Ingersoll Rand Hoist? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Hoists for your assembly application, please email info@intlairtool.com or call (800) 608-5210
