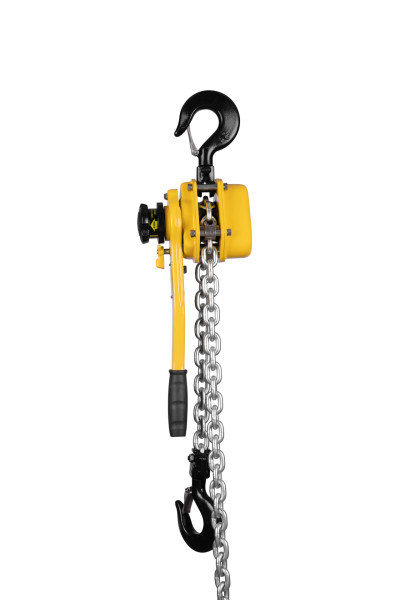

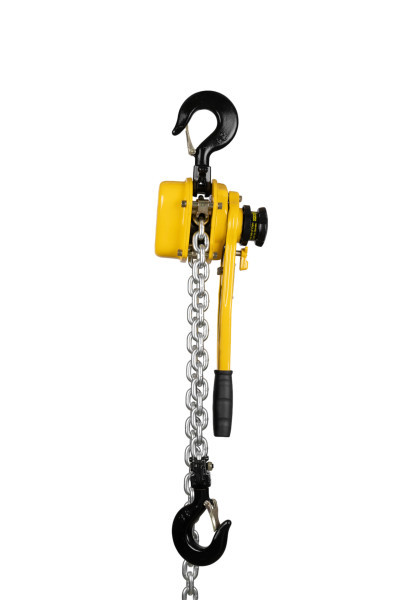

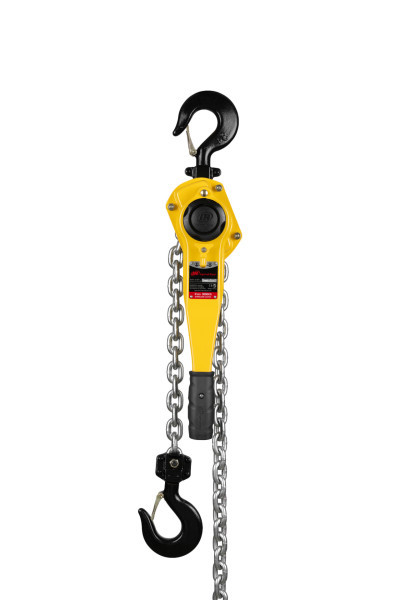

Ingersoll Rand KL300-20 KL Kinetic Series Lever Chain Hoist | 3 Ton Capacity | 20 ft Lift | 1 Chain Falls

Built for manual lifting, pulling, positioning, tensioning, and rigging, the Ingersoll Rand KL300-20 Kinetic Series Lever Chain Hoist provides a 3 metric ton (6,600 lb) rated capacity with a 20 ft lift and 1 chain fall. The single-chain-fall configuration through 3 metric tons reduces chain weight compared with multi-fall arrangements, while full bearing construction on the load sprocket and pinion shaft helps reduce pull effort. Its compact design also accommodates lifting work where available operating space is limited.

The KL300 requires 83.6 lb of pull to lift the rated load and uses premium-grade 100 electro-galvanized load chain weighing 1.48 lb per foot. Heavy-duty cast hook latches, a corrosion-resistant finish, ergonomic handle grip, and a fused brake disc support manual operation. The 20 ft lift provides the specified vertical travel for this configuration. Overload protection is optional on the Kinetic Series and is not included in the standard KL300-20 designation.

Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL300-20 | Capacity: 3 Metric Tons (6,600 lb) | Lift: 20 ft | Chain Falls: 1 | Pull to Lift Rated Load: 83.6 lb | Load Chain: Premium Grade 100 Electro-Galvanized | Chain Weight: 1.48 lb/ft | Shipping Weight with 10' Lift: 31.3 lb

Features:

• Heavy-duty cast hook latches are designed for less latch replacement.
• Corrosion-resistant finish provides additional durability.
• Ergonomic handle grip helps reduce operator fatigue during manual operation.
• Single chain fall through 3 metric tons provides the specified lifting configuration while reducing chain weight.
• Full bearing construction on the load sprocket and pinion shaft reduces chain pull effort and supports longer life.
• Fused brake disc provides exceptional long brake life.
• Premium-grade 100 electro-galvanized chain provides exceptional corrosion resistance for increased durability.
• Compact design accommodates applications where available operating space is limited.
• CE certified; the manufacturer states that the hoists meet or exceed regional requirements including ASME B30.21 and HST-3M.

Applications:

• Industrial maintenance and MRO — manually lifting and positioning machinery, components, and equipment within the 6,600 lb rated capacity.
• Rigging and material handling — controlling compatible loads during positioning, tensioning, and general lifting operations.
• Fabrication and shop work — positioning components where a 3 metric ton lever hoist with 20 ft of lift is appropriate.
• Construction and field service — handling compatible loads where portable manual lifting equipment is required.
• Extended-lift applications — the 20 ft configuration provides the specified vertical lifting distance for this SKU.
• Restricted-space lifting — the compact Kinetic Series housing accommodates applications with limited operating room.

FAQs:

• Q: What is the capacity of the KL300-20?
  A: The KL300-20 is rated for 3 metric tons, equivalent to 6,600 lb.
• Q: What does the 20 ft lift mean?
  A: The 20 ft specification identifies the lift configuration of this KL300 lever chain hoist.
• Q: How many chain falls does the KL300-20 have?
  A: The KL300-20 uses 1 chain fall. Ingersoll Rand specifies single-chain-fall construction through 3 metric tons.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 83.6 lb of pull to lift the rated 6,600 lb load.
• Q: What type of chain does the KL300-20 use?
  A: It uses premium-grade 100 electro-galvanized load chain with a listed weight of 1.48 lb per foot.
• Q: Does the KL300-20 include overload protection?
  A: No overload-protection option is specified by the standard KL300-20 designation. The manufacturer identifies the overload clutch as optional on all Kinetic Series capacities.
• Q: What is the shipping weight of the KL300-20?
  A: The catalog lists 31.3 lb shipping weight with 10 ft of lift. A separate shipping-weight figure for the 20 ft configuration is not provided.
