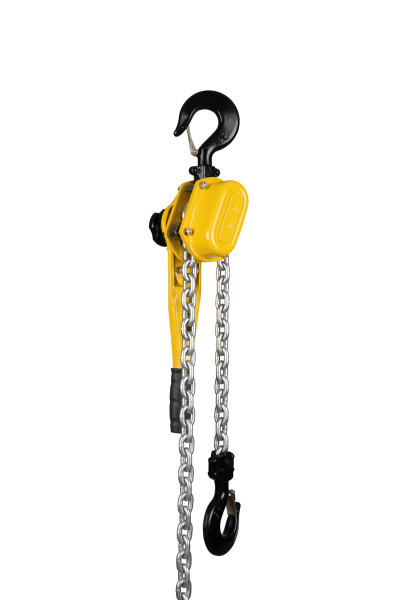

Designed for manual lifting, pulling, positioning, tensioning, and rigging, the Ingersoll Rand KL300-10 Kinetic Series Lever Chain Hoist provides a 3 metric ton (6,600 lb) rated capacity with a 10 ft lift and 1 chain fall. Its compact design is suited to applications where available operating space is limited, while full bearing construction on the load sprocket and pinion shaft helps reduce chain pull effort and support longer service life. The single-chain-fall configuration is specified through 3 metric tons, keeping the lifting arrangement relatively simple for this capacity.
The KL300 requires 83.6 lb of pull to lift the rated load and uses premium-grade 100 electro-galvanized load chain weighing 1.48 lb per foot. Heavy-duty cast hook latches, a corrosion-resistant finish, ergonomic handle grip, and a fused brake disc support practical manual operation. The 10 ft lift identifies the selected lift configuration, while the standard KL300-10 does not include the optional overload clutch unless the V option is specified.
Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL300-10 | Capacity: 3 Metric Tons (6,600 lb) | Lift: 10 ft | Chain Falls: 1 | Pull to Lift Rated Load: 83.6 lb | Load Chain: Premium Grade 100 Electro-Galvanized | Chain Weight: 1.48 lb/ft | Shipping Weight: 31.3 lb with 10' of Lift
Features:
- Heavy-duty cast hook latches are designed to reduce latch replacement.
- Corrosion-resistant finish provides additional durability.
- Ergonomic handle grip helps reduce operator fatigue during manual operation.
- Single chain fall provides the specified lifting configuration through 3 metric tons.
- Full bearing construction on the load sprocket and pinion shaft reduces chain pull effort and supports longer life.
- Fused brake disc provides exceptional long brake life.
- Premium-grade 100 electro-galvanized chain provides exceptional corrosion resistance for increased durability.
- Compact design accommodates applications where available operating space is limited.
- CE certified; the manufacturer states that the hoists meet or exceed regional requirements including ASME B30.21 and HST-3M.
Applications:
- Industrial maintenance and MRO — manually lifting and positioning machinery, components, and equipment within the 6,600 lb rated capacity.
- Rigging and material handling — controlling compatible loads during positioning, tensioning, and general manual lifting operations.
- Fabrication and shop work — positioning components where a 3 metric ton lever hoist with a 10 ft lift is appropriate.
- Construction and field service — handling compatible loads where portable manual lifting equipment is required.
- Restricted-space lifting — the compact Kinetic Series design accommodates applications where available operating space is limited.
FAQs:
- Q: What is the capacity of the KL300-10?
A: The KL300-10 is rated for 3 metric tons, equivalent to 6,600 lb. - Q: What does the 10 ft lift mean?
A: The 10 ft specification identifies the lift configuration of this KL300 lever chain hoist. - Q: How many chain falls does the KL300-10 have?
A: The KL300-10 uses 1 chain fall. The manufacturer specifies single-chain-fall construction through 3 metric tons. - Q: How much pull is required to lift the rated load?
A: The manufacturer specifies 83.6 lb of pull to lift the rated 6,600 lb load. - Q: What type of chain does the KL300-10 use?
A: It uses premium-grade 100 electro-galvanized load chain with a listed weight of 1.48 lb per foot. - Q: Does the KL300-10 include overload protection?
A: The manufacturer states that the overload clutch is optional on all capacities. Because the SKU does not include the V option, overload protection has not been represented as included. - Q: What is the shipping weight of the KL300-10?
A: The manufacturer lists 31.3 lb shipping weight with 10 ft of lift, which corresponds to this SKU's 10 ft configuration.
| SKU | CAPACITY | NUMBER OF FALLS | PULL TO LIFT RATED LOAD | CHAIN WEIGHT | SHIPPING WEIGHT WITH 10' OF LIFT | ||||
|---|---|---|---|---|---|---|---|---|---|
| LBS | METRIC TONS | LB | KG | LB/FT | KG/FT | LB | KG | ||
| KL075 | 1,650 | 0.75 | 1 | 48.3 | 21.9 | 0.47 | 0.21 | 13.4 | 6.1 |
| KL100 | 2,200 | 1 | 1 | 66.1 | 30 | 0.47 | 0.21 | 13.9 | 6.3 |
| KL150 | 3,300 | 1.5 | 1 | 68.1 | 30.9 | 0.74 | 0.34 | 18.7 | 8.5 |
| KL300 | 6,600 | 3 | 1 | 83.6 | 37.9 | 1.48 | 0.67 | 31.3 | 14.2 |
| KL600 | 13,200 | 6 | 2 | 85.9 | 39 | 2.95 | 1.34 | 58.6 | 26.6 |
| KL900 | 19,800 | 9 | 3 | 88.1 | 40 | 4.43 | 2.01 | 102.5 | 46.5 |
