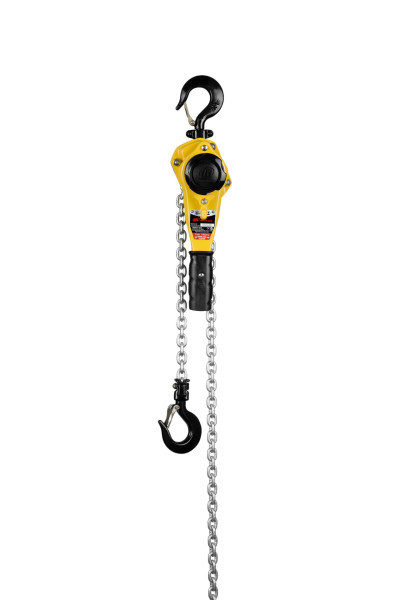

Ingersoll Rand KL150V KL Kinetic Series Lever Chain Hoist | 1 - 1/2 Ton Capacity | 1 Chain Falls | Overload Protection

Built for manual lifting, pulling, positioning, tensioning, and rigging, the Ingersoll Rand KL150V Kinetic Series Lever Chain Hoist provides a 1.5 metric ton (3,300 lb) rated capacity with 1 chain fall and the V overload-protection option. Its compact construction is suited to applications where working space is limited, while full bearing construction on the load sprocket and pinion shaft helps reduce chain pull effort. The base KL150V configuration does not specify a particular lift length; lift length is selected separately in the Kinetic Series ordering format.

The KL150 requires 68.1 lb of pull to lift the rated load and uses premium-grade 100 electro-galvanized load chain weighing 0.74 lb per foot. Heavy-duty cast hook latches, a corrosion-resistant finish, ergonomic handle grip, and a fused brake disc support practical manual operation. The V designation specifies the optional overload clutch, while the manufacturer identifies single-chain-fall construction through 3 metric tons.

Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL150V | Capacity: 1.5 Metric Tons (3,300 lb) | Lift: Not Specified on Base Model | Chain Falls: 1 | Overload Protection: Overload Clutch | Pull to Lift Rated Load: 68.1 lb | Load Chain: Premium Grade 100 Electro-Galvanized | Chain Weight: 0.74 lb/ft | Shipping Weight with 10' Lift: 18.7 lb

Features:

• Heavy-duty cast hook latches are designed for less latch replacement.
• Corrosion-resistant finish provides additional durability.
• Ergonomic handle grip helps reduce fatigue during manual operation.
• Single chain fall provides the specified lifting configuration for capacities through 3 metric tons.
• Full bearing construction on the load sprocket and pinion shaft reduces chain pull effort and supports longer life.
• Fused brake disc provides exceptional long brake life.
• Premium-grade 100 electro-galvanized chain provides exceptional corrosion resistance for increased durability.
• Compact design accommodates applications where available operating space is limited.
• CE certified; the manufacturer states that the hoists meet or exceed regional requirements including ASME B30.21 and HST-3M.
• The overload clutch is available as an option on all capacities; the V designation specifies this option for KL150V.

Applications:

• Industrial maintenance and MRO — manually lifting and positioning machinery, components, and equipment within the 3,300 lb rated capacity.
• Rigging and material handling — controlling compatible loads during positioning, tensioning, and general manual lifting operations.
• Fabrication and shop work — positioning components where a portable manual lever hoist is appropriate.
• Construction and field service — handling compatible loads where manual lifting equipment is required.
• Restricted-space lifting — the compact Kinetic Series design accommodates applications where available operating space is limited.

FAQs:

• Q: What is the capacity of the KL150V?
  A: The KL150V is rated for 1.5 metric tons, equivalent to 3,300 lb.
• Q: What does the “V” indicate?
  A: V identifies the overload-protection option. In the Kinetic Series ordering system, V specifies the overload clutch.
• Q: Does the KL150V include overload protection?
  A: Yes. The V designation specifies the optional overload clutch for this configuration.
• Q: How many chain falls does the KL150V have?
  A: The KL150V uses 1 chain fall. Ingersoll Rand specifies single-chain-fall construction through 3 metric tons.
• Q: Does KL150V specify a lift length?
  A: No. KL150V is the base model with the overload-protection option. A specific lift is selected separately using the Kinetic Series ordering format.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 68.1 lb of pull to lift the rated 3,300 lb load.
• Q: What type of chain does the KL150V use?
  A: It uses premium-grade 100 electro-galvanized load chain with a listed weight of 0.74 lb per foot.
