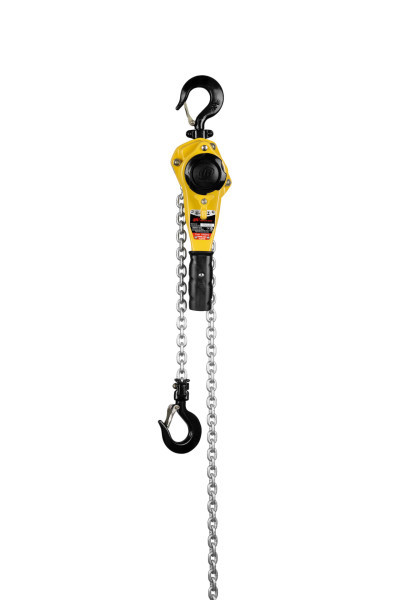

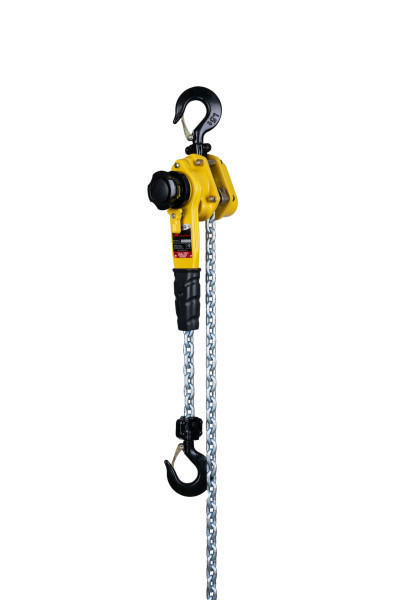

Ingersoll Rand KL150V-5 KL Kinetic Series Lever Chain Hoist | 1 - 1/2 Ton Capacity | 5 ft Lift | 1 Chain Falls | Overload Protection

Built for manual lifting, pulling, positioning, and rigging, the Ingersoll Rand KL150V-5 Kinetic Series Lever Chain Hoist provides a 1.5 metric ton (3,300 lb) rated capacity with a 5 ft lift, 1 chain fall, and V overload-protection option. The 5 ft configuration suits applications where a shorter lifting distance is sufficient, while the compact Kinetic Series design supports work in restricted spaces. Full bearing construction on the load sprocket and pinion shaft reduces chain pull effort for manual load handling.

A specified 68.1 lb pull to lift the rated load gives operators the manufacturer-rated manual effort for the 3,300 lb capacity. The KL150 uses premium-grade 100 electro-galvanized load chain weighing 0.74 lb per foot, providing exceptional corrosion resistance. Heavy-duty cast hook latches, a corrosion-resistant finish, ergonomic handle grip, and a fused brake disc are part of the Kinetic Series feature set. The V designation identifies the optional overload clutch.

Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL150V-5 | Capacity: 1.5 Metric Tons (3,300 lb) | Lift: 5 ft | Chain Falls: 1 | Overload Protection: Overload Clutch | Pull to Lift Rated Load: 68.1 lb | Load Chain: Premium Grade 100 Electro-Galvanized | Chain Weight: 0.74 lb/ft | Shipping Weight with 10' of Lift: 18.7 lbs

Features:

• Heavy-duty cast hook latches are designed for less latch replacement.
• Corrosion-resistant finish provides additional durability.
• Ergonomic handle grip helps reduce fatigue during manual operation.
• Single chain fall provides the specified lifting configuration through the 3 metric ton capacity range.
• Full bearing construction on the load sprocket and pinion shaft reduces chain pull effort.
• Fused brake disc provides the specified braking design.
• Premium-grade 100 electro-galvanized chain provides exceptional corrosion resistance for increased durability.
• Compact design accommodates applications where available operating space is limited.
• CE certified; hoists meet or exceed regional requirements including ASME B30.21 and HST-3M.

Applications:

• Industrial maintenance and MRO — manually lifting and positioning machinery, components, and equipment within the 3,300 lb rated capacity.
• Rigging and material handling — controlling loads during positioning, tensioning, and general lifting operations.
• Fabrication and shop work — moving components where a manually operated lever hoist with a short 5 ft lift is appropriate.
• Construction and field service — positioning equipment and loads where portable manual lifting is required.
• Restricted-space lifting — the compact Kinetic Series configuration helps accommodate areas with limited operating room.

FAQs:

• Q: What is the capacity of the KL150V-5?
  A: The KL150V-5 is rated for 1.5 metric tons, equivalent to 3,300 lb.
• Q: What does the 5 ft lift mean?
  A: The 5 ft specification identifies the lifting-distance configuration of this KL150 lever hoist.
• Q: What does the “V” indicate?
  A: V identifies the overload-protection option. In the Kinetic Series, the overload clutch is optional on all capacities.
• Q: How many chain falls does the KL150V-5 use?
  A: It uses 1 chain fall. Ingersoll Rand specifies single-chain-fall construction through 3 metric tons.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 68.1 lb of pull to lift the KL150's rated 3,300 lb load.
