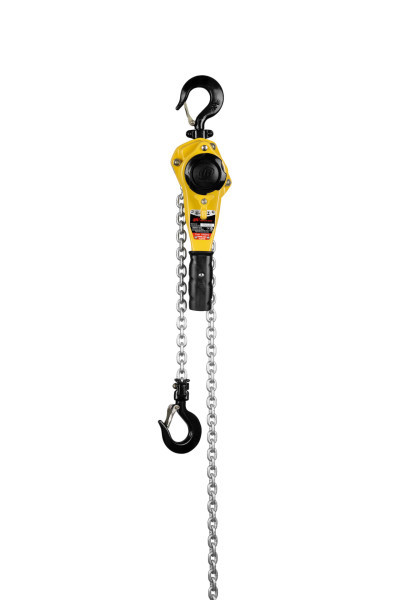

Ingersoll Rand KL150V-20 KL Kinetic Series Lever Chain Hoist | 1 - 1/2 Ton Capacity | 20 ft Lift | 1 Chain Falls | Overload Protection

Built for manual lifting, pulling, positioning, and rigging, the Ingersoll Rand KL150V-20 Kinetic Series Lever Chain Hoist provides a 1.5 metric ton (3,300 lb) rated capacity with a 20 ft lift, 1 chain fall, and V overload-protection option. The single-chain-fall configuration keeps the lifting arrangement straightforward, while the compact Kinetic Series housing supports work in tight spaces. Full bearing construction on the load sprocket and pinion shaft reduces chain pull effort, making the hoist practical for manual load positioning in maintenance, rigging, and industrial lifting work.

A 68.1 lb pull to lift the rated load provides the manufacturer-specified manual operating effort for the 3,300 lb capacity. The hoist uses premium-grade 100 electro-galvanized load chain at 0.74 lb per foot, providing corrosion resistance for increased durability. Heavy-duty cast hook latches, a corrosion-resistant finish, ergonomic handle grip, and a fused brake disc round out the Kinetic Series configuration. The V option identifies the overload clutch, which is optional across Kinetic Series capacities.

Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL150V-20 | Capacity: 1.5 Metric Tons (3,300 lb) | Lift: 20 ft | Chain Falls: 1 | Overload Protection: Overload Clutch | Pull to Lift Rated Load: 68.1 lb | Load Chain: Premium Grade 100 Electro-Galvanized | Chain Weight: 0.74 lb/ft | Shipping Weight with 10' of Lift: 18.7 lb

Features:

• Heavy-duty cast hook latches are designed for less latch replacement.
• Corrosion-resistant finish provides additional durability.
• Ergonomic handle grip helps reduce fatigue during manual operation.
• Single chain fall provides the specified lifting configuration for the 1.5 metric ton capacity.
• Full bearing construction on the load sprocket and pinion shaft reduces chain pull effort and supports longer life.
• Fused brake disc provides exceptional brake life.
• Premium-grade 100 electro-galvanized chain provides exceptional corrosion resistance for increased durability.
• Compact design accommodates applications where available operating space is limited.
• CE certified; hoists meet or exceed regional requirements including ASME B30.21 and HST-3M.
• Overload clutch is available as an option on all capacities.

Applications:

• Industrial maintenance and MRO — manually lifting and positioning machinery, components, and equipment within the rated capacity.
• Rigging and material handling — controlling loads during positioning, tensioning, and general lifting work.
• Fabrication and shop work — handling components where a manually operated lever hoist and 20 ft lift are appropriate.
• Construction and field service — positioning equipment and loads where portable manual lifting is required.
• Space-limited lifting — the compact Kinetic Series configuration accommodates work where available operating space is restricted.

FAQs:

• Q: What is the capacity of the KL150V-20?
  A: The KL150V-20 is rated for 1.5 metric tons, equivalent to 3,300 lb.
• Q: What does the 20 ft lift mean?
  A: The 20 ft specification identifies the available lifting distance for this KL150 configuration.
• Q: What does the V indicate in KL150V-20?
  A: V identifies the overload-protection option. In the Kinetic Series, the overload clutch is optional on all capacities.
• Q: How many chain falls does this hoist use?
  A: The KL150 uses 1 chain fall. The manufacturer specifies single-chain-fall construction through 3 metric tons.
• Q: What is the pull required to lift the rated load?
  A: Ingersoll Rand specifies 68.1 lb of pull to lift the KL150's rated 3,300 lb load.
