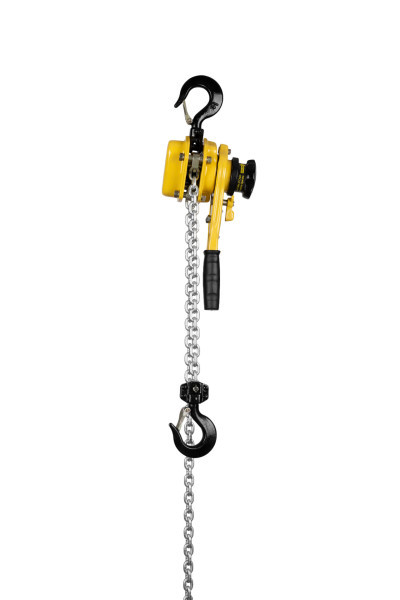

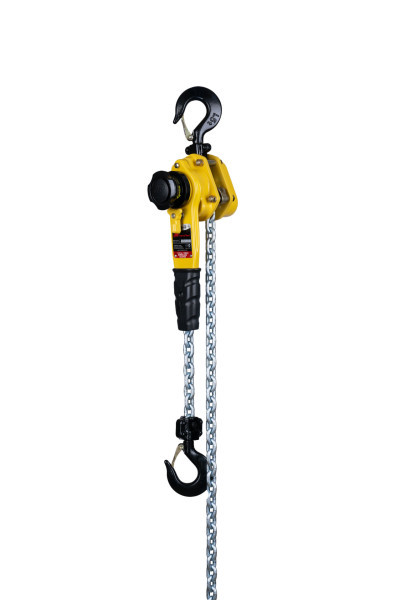

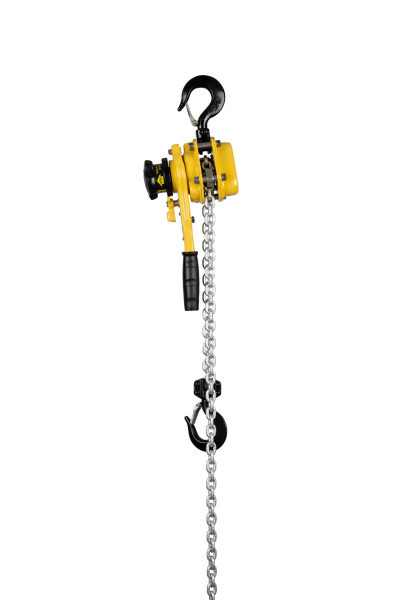

Ingersoll Rand KL150V-15 KL Kinetic Series Lever Chain Hoist | 1 - 1/2 Ton Capacity | 15 ft Lift | 1 Chain Falls | Overload Protection

Built for controlled manual lifting, pulling, positioning, and rigging, the Ingersoll Rand KL150V-15 Kinetic Series Lever Chain Hoist provides a 1.5 metric ton (3,300 lb) rated capacity with a 15 ft lift, 1 chain fall, and V overload-clutch option. All-steel construction, full bearing construction on the load sprocket and pinion shaft, and a compact design support manual lifting applications where reduced pull effort and maneuverability are important.

The KL150 requires 68.1 lb of pull to lift the rated load and uses premium-grade 100 electro-galvanized load chain weighing 1.41 lb per foot. Full bearing construction helps reduce pull effort and support longer service life, while the reinforced double-pawl brake with large-diameter pawl springs provides the specified braking system. Heavy-duty cast hook latches, corrosion-resistant chain, and the compact Kinetic Series design further support practical operation. The V designation identifies the optional overload clutch specified by the manufacturer.

Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL150V-15 | Capacity: 1.5 Metric Tons (3,300 lb) | Lift: 15 ft | Chain Falls: 1 | Overload Protection: Overload Clutch | Pull to Lift Rated Load: 68.1 lb | Load Chain Type: Premium Grade 100 Electro-Galvanized | Chain Weight: 1.41 lb/ft | Shipping Weight with 10' Lift: 18.7 lb

Features:

• All-steel construction provides the specified Kinetic Series construction for durability and reduced weight.
• Reinforced double-pawl brake with large-diameter pawl springs provides a dependable brake system.
• Full bearing construction on the load sprocket and pinion shaft reduces pull effort and supports longer service life.
• Premium-grade 100 electro-galvanized chain provides exceptional corrosion resistance and increased durability.
• Heavy-duty cast hook latches are designed to reduce latch replacement.
• Single chain fall provides the specified lifting configuration for the 1.5 metric ton KL150.
• The V configuration provides the optional overload clutch specified by the manufacturer.
• Compact design accommodates applications where available operating space is limited.
• CE-certified construction meets or exceeds regional requirements including ASME B30.16 and HST-2M.

Applications:

• Manual load positioning — provides controlled lifting and positioning for loads within the 3,300 lb rated capacity.
• Maintenance and repair — suitable for positioning equipment, components, and machinery where a manual lever hoist is appropriate.
• Rigging operations — the single-chain-fall configuration provides the specified lifting arrangement for this capacity.
• 15 ft lift applications — provides the specified vertical travel for applications requiring a 15 ft lifting distance.
• Manual lifting with overload protection — the V configuration specifies the optional overload clutch for this SKU.
• Space-limited lifting — the compact Kinetic Series design is suited to applications where available operating space is restricted.

FAQs:

• Q: What is the capacity of the KL150V-15?
  A: The KL150V-15 is rated for 1.5 metric tons, equivalent to 3,300 lb.
• Q: What does the 15 ft lift indicate?
  A: The 15 in the SKU identifies this KL150 configuration with a 15 ft lift.
• Q: What does the “V” in KL150V-15 indicate?
  A: The V identifies the optional overload clutch in the Kinetic Series ordering system.
• Q: Does the KL150V-15 include overload protection?
  A: Yes. The V designation specifies the overload clutch option.
• Q: How many chain falls does the KL150V-15 have?
  A: The KL150 uses 1 chain fall.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 68.1 lb of pull to lift the rated load.
• Q: What type of load chain does the KL150V-15 use?
  A: It uses premium-grade 100 electro-galvanized load chain designed for exceptional corrosion resistance and increased durability.
• Q: What is the load-chain weight?
  A: The manufacturer lists the KL150 load chain at 1.41 lb per foot.
• Q: What is the shipping weight of the KL150V-15?
  A: The manufacturer lists 18.7 lb shipping weight with 10 ft of lift. A separate shipping-weight figure for the 15 ft configuration is not provided in the catalog.
• Q: Is the overload clutch standard on the KL150?
  A: The manufacturer identifies the overload clutch as an optional feature on all Kinetic Series capacities. The V designation specifies that option for this SKU.
