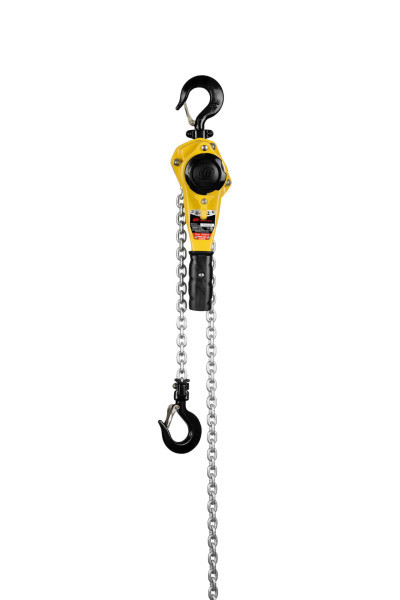

Ingersoll Rand KL150 KL Kinetic Series Lever Chain Hoist | 1 - 1/2 Ton Capacity | 1 Chain Falls

Built for manual lifting, pulling, positioning, tensioning, and rigging, the Ingersoll Rand KL150 Kinetic Series Lever Chain Hoist provides a 1.5 metric ton (3,300 lb) rated capacity with 1 chain fall. Its compact configuration is suited to applications where a portable manual lever hoist must handle substantial loads while fitting into restricted working spaces. Full bearing construction on the load sprocket and pinion shaft reduces chain pull effort, while the ergonomic handle grip helps reduce fatigue during manual operation.

The KL150 requires 68.1 lb of pull to lift the rated load and uses premium-grade 100 electro-galvanized load chain weighing 0.74 lb per foot. A fused brake disc provides the specified braking system, while heavy-duty cast hook latches and a corrosion-resistant finish add durability for regular lifting work. This base KL150 model does not specify a particular lift length; lift options are ordered separately according to the manufacturer's Kinetic Series ordering format.

Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL150 | Capacity: 1.5 Metric Tons (3,300 lb) | Chain Falls: 1 | Pull to Lift Rated Load: 68.1 lb | Load Chain: Premium Grade 100 Electro-Galvanized | Chain Weight: 0.74 lb/ft | Shipping Weight with 10' of Lift: 18.7 lb

Features:

• Heavy-duty cast hook latches are designed for less latch replacement.
• Corrosion-resistant finish provides additional durability.
• Ergonomic handle grip helps reduce fatigue during manual operation.
• Single chain fall provides the specified lifting configuration for the 1.5 metric ton capacity.
• Full bearing construction on the load sprocket and pinion shaft reduces chain pull effort and supports longer life.
• Fused brake disc provides exceptional brake life.
• Premium-grade 100 electro-galvanized chain provides exceptional corrosion resistance for increased durability.
• Compact design accommodates applications where available operating space is limited.
• CE certified; hoists meet or exceed regional requirements including ASME B30.21 and HST-3M.

Applications:

• Industrial maintenance and MRO — manually lifting and positioning machinery, components, and equipment within the 3,300 lb rated capacity.
• Rigging and material handling — controlling loads during positioning, tensioning, and general manual lifting operations.
• Fabrication and shop work — positioning components where a portable lever chain hoist is appropriate.
• Construction and field service — handling compatible loads where manual lifting equipment is required.
• Restricted-space lifting — the compact Kinetic Series design accommodates applications where available operating space is limited.

FAQs:

• Q: What is the capacity of the KL150?
  A: The KL150 is rated for 1.5 metric tons, equivalent to 3,300 lb.
• Q: How many chain falls does the KL150 have?
  A: The KL150 uses 1 chain fall. Ingersoll Rand specifies single-chain-fall construction through 3 metric tons.
• Q: Does the KL150 include a specific lift length?
  A: No specific lift length is identified by the base KL150 model. The manufacturer uses a separate lift option when ordering a particular lift configuration.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 68.1 lb of pull to lift the rated 3,300 lb load.
• Q: What type of chain does the KL150 use?
  A: The KL150 uses premium-grade 100 electro-galvanized load chain with a listed weight of 0.74 lb per foot.
• Q: Does the KL150 include overload protection?
  A: The manufacturer states that an overload clutch is optional on all Kinetic Series capacities. Because the base SKU is KL150 rather than a V-designated configuration, overload protection has not been represented as included.
