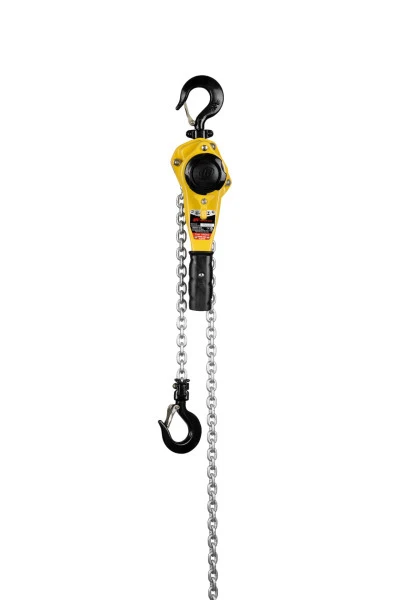

Ingersoll Rand KL150-5 KL Kinetic Series Lever Chain Hoist | 1 - 1/2 Ton Capacity | 5 ft Lift | 1 Chain Falls

Built for manual lifting, pulling, positioning, tensioning, and rigging, the Ingersoll Rand KL150-5 Kinetic Series Lever Chain Hoist provides a 1.5 metric ton (3,300 lb) rated capacity with a 5 ft lift and 1 chain fall. Its compact Kinetic Series configuration accommodates applications where working space is limited, while full bearing construction on the load sprocket and pinion shaft helps reduce chain pull effort during manual load handling.

The KL150 requires 68.1 lb of pull to lift the rated load and uses premium-grade 100 electro-galvanized load chain weighing 0.74 lb per foot. Heavy-duty cast hook latches, a corrosion-resistant finish, ergonomic handle grip, and a fused brake disc support practical manual operation. The 5 ft configuration provides the shorter lift distance specified for this SKU. An overload clutch is available as an option on Kinetic Series capacities, but the standard KL150-5 designation does not specify the overload-protection option.

Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL150-5 | Capacity: 1.5 Metric Tons (3,300 lb) | Lift: 5 ft | Chain Falls: 1 | Pull to Lift Rated Load: 68.1 lb | Load Chain: Premium Grade 100 Electro-Galvanized | Chain Weight: 0.74 lb/ft | Shipping Weight with 10' Lift: 18.7 lb

Features:

• All-steel construction provides the specified Kinetic Series construction.
• Reinforced double-pawl brake with large-diameter pawl springs provides a dependable braking system.
• Full bearing construction on the load sprocket and pinion shaft reduces chain pull effort and supports longer service life.
• Premium-grade 100 electro-galvanized chain provides exceptional corrosion resistance and increased durability.
• Heavy-duty cast hook latches are designed to reduce latch replacement.
• Single chain fall provides the specified lifting configuration for the 1.5 metric ton capacity.
• Corrosion-resistant finish provides additional durability.
• Ergonomic handle grip helps reduce fatigue during manual operation.
• Fused brake disc provides the specified braking design.
• Compact construction accommodates applications where available operating space is limited.
• CE certified; the manufacturer states that the hoists meet or exceed regional requirements including ASME B30.21 and HST-3M.

Applications:

• Industrial maintenance and MRO — manually lifting and positioning machinery, components, and equipment within the 3,300 lb rated capacity.
• Rigging and material handling — controlling compatible loads during positioning, tensioning, and general manual lifting operations.
• Fabrication and shop work — positioning components where a manual lever hoist with a short 5 ft lift is appropriate.
• Construction and field service — handling compatible loads where portable manual lifting equipment is required.
• Restricted-space lifting — the compact Kinetic Series configuration accommodates applications where available operating space is limited.

FAQs:

• Q: What is the capacity of the KL150-5?
  A: The KL150-5 is rated for 1.5 metric tons, equivalent to 3,300 lb.
• Q: What does the 5 ft lift mean?
  A: The 5 ft specification identifies the lift configuration of this KL150 lever chain hoist.
• Q: How many chain falls does the KL150-5 have?
  A: The KL150-5 uses 1 chain fall. The manufacturer specifies single-chain-fall construction through the 3 metric ton capacity range.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 68.1 lb of pull to lift the rated 3,300 lb load.
• Q: What type of chain does the KL150-5 use?
  A: It uses premium-grade 100 electro-galvanized load chain with a listed weight of 0.74 lb per foot.
• Q: Does the KL150-5 include overload protection?
  A: The manufacturer states that an overload clutch is optional on Kinetic Series capacities. Because the SKU does not include the V option, overload protection has not been represented as included.
• Q: What is the shipping weight of the KL150-5?
  A: The catalog lists 18.7 lb shipping weight with 10 ft of lift. A separate shipping-weight figure for the 5 ft configuration is not provided.
