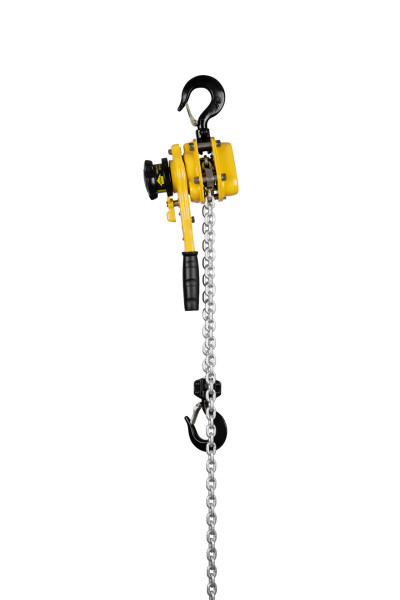

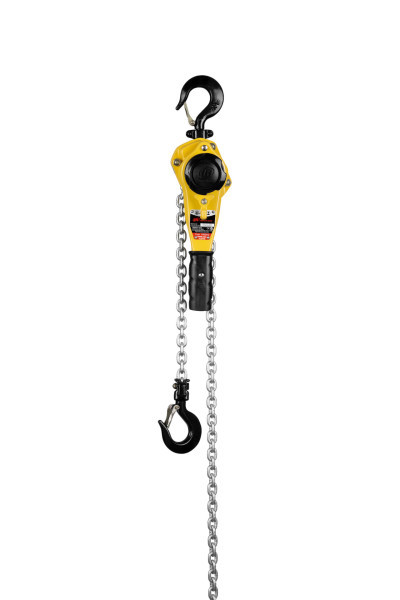

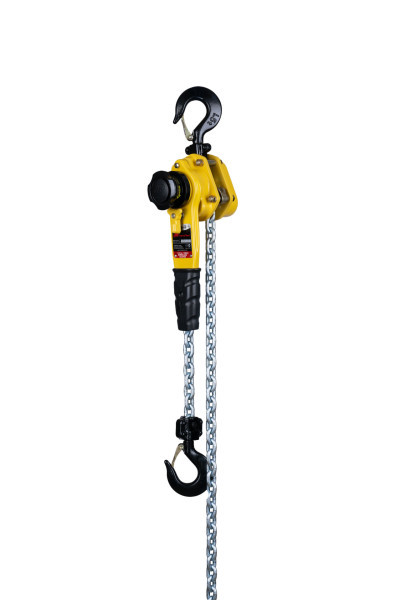

Ingersoll Rand KL100V-15 KL Kinetic Series Lever Chain Hoist | 1 Ton Capacity | 15 ft Lift | 1 Chain Falls | Overload Protection

Built for controlled manual lifting, pulling, positioning, and rigging, the Ingersoll Rand KL100V-15 Kinetic Series Lever Chain Hoist provides a 1 metric ton (2,200 lb) rated capacity with a 15 ft lift, 1 chain fall, and a V overload clutch option. All-steel construction, extensive use of bearings, and a compact design make this hoist suitable for manual lifting applications where reduced pull effort and dependable load control are important.

The KL100 requires 66.1 lb of pull to lift the rated load and uses premium-grade 100 electro-galvanized load chain weighing 1.21 lb per foot. Full bearing construction on the load sprocket and pinion shaft helps reduce pull effort and support longer service life, while the reinforced double-pawl brake with large-diameter pawl springs provides a dependable braking system. Heavy-duty cast hook latches and the corrosion-resistant chain finish further support use in demanding manual lifting applications. The V designation specifies the optional overload clutch.

Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL100V-15 | Capacity: 1 Metric Ton (2,200 lb) | Lift: 15 ft | Chain Falls: 1 | Overload Protection: Overload Clutch | Pull to Lift Rated Load: 66.1 lb | Load Chain Type: Premium Grade 100 Electro-Galvanized | Chain Weight: 1.21 lb/ft | Shipping Weight with 10' Lift: 13.9 lb

Features:

• All-steel construction provides the specified Kinetic Series construction.
• Reinforced double-pawl brake with large-diameter pawl springs provides a dependable brake system.
• Single chain fall provides the specified lifting configuration through the 3 metric ton Kinetic Series capacity range.
• Full bearing construction on the load sprocket and pinion shaft reduces pull effort and supports longer service life.
• Premium-grade 100 electro-galvanized chain is designed for exceptional corrosion resistance and increased durability.
• Heavy-duty cast hook latches are designed to reduce latch replacement.
• The V configuration specifies the optional overload clutch.
• Compact construction helps accommodate applications where available operating space is limited.
• CE-certified construction meets or exceeds regional requirements including ASME B30.16 and HST-2M.

Applications:

• Manual load positioning — provides controlled lifting and positioning for loads within the 2,200 lb rated capacity.
• Maintenance and repair — suitable for positioning equipment, components, and machinery where a manual lever hoist is appropriate.
• Rigging operations — the single-chain-fall configuration provides the specified lifting arrangement for the 1 metric ton capacity.
• 15 ft lift applications — provides the specified vertical travel for applications requiring a 15 ft lifting distance.
• Manual lifting with overload protection — the V configuration specifies the optional overload clutch for this SKU.
• Space-limited lifting — the compact Kinetic Series design is suited to applications where operating space is restricted.

FAQs:

• Q: What is the capacity of the KL100V-15?
  A: The KL100V-15 is rated for 1 metric ton, equivalent to 2,200 lb.
• Q: What does the 15 ft lift indicate?
  A: The 15 in the SKU identifies this KL100 configuration with a 15 ft lift.
• Q: What does the “V” in KL100V-15 indicate?
  A: The V identifies the optional overload clutch in the Kinetic Series ordering system.
• Q: Does the KL100V-15 include overload protection?
  A: Yes. The V designation specifies the overload clutch option.
• Q: How many chain falls does the KL100V-15 have?
  A: The KL100 uses 1 chain fall.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 66.1 lb of pull to lift the rated load.
• Q: What type of load chain does the KL100V-15 use?
  A: It uses premium-grade 100 electro-galvanized load chain designed for exceptional corrosion resistance and increased durability.
• Q: What is the load-chain weight?
  A: The manufacturer lists the KL100 load chain at 1.21 lb per foot.
• Q: What is the shipping weight of the KL100V-15?
  A: The manufacturer lists 13.9 lb shipping weight with 10 ft of lift. A separate shipping-weight figure for the 15 ft configuration is not provided in the catalog.
• Q: Is the overload clutch standard on the KL100?
  A: No. The manufacturer identifies the overload clutch as an optional feature. The V designation specifies that option for this SKU.
