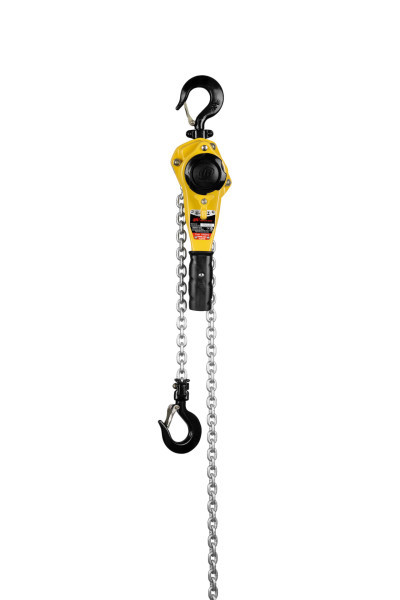

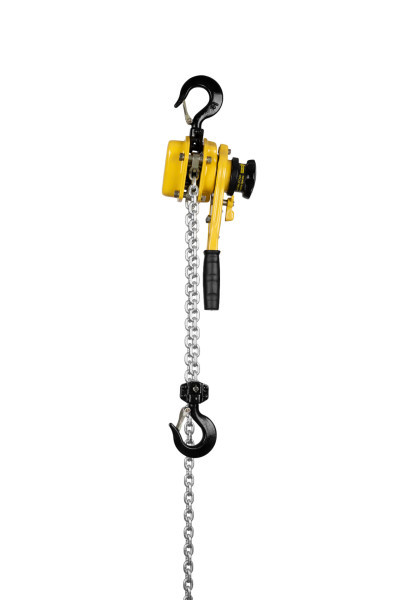

Ingersoll Rand KL100V-10 KL Kinetic Series Lever Chain Hoist | 1 Ton Capacity | 10 ft Lift | 1 Chain Falls | Overload Protection

Built for controlled manual lifting, pulling, positioning, and rigging, the Ingersoll Rand KL100V-10 Kinetic Series Lever Chain Hoist provides a 1 metric ton (2,200 lb) rated capacity with a 10 ft lift, 1 chain fall, and V overload-protection option. Its compact Kinetic Series design combines full bearing construction on the load sprocket and pinion shaft with an ergonomic handle grip and corrosion-resistant finish for manual lifting applications where reduced chain pull effort and maneuverability are important.

The KL100 requires 66.1 lb of pull to lift the rated load and uses premium-grade 100 electro-galvanized load chain weighing 0.47 lb per foot. Full bearing construction helps reduce chain pull effort and support longer life, while the fused brake disc provides the specified braking system. Heavy-duty cast hook latches and the compact design support practical operation in space-limited applications. The V designation identifies the optional overload clutch specified by the manufacturer.

Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL100V-10 | Capacity: 1 Metric Ton (2,200 lb) | Lift: 10 ft | Chain Falls: 1 | Overload Protection: Overload Clutch | Pull to Lift Rated Load: 66.1 lb | Load Chain Type: Premium Grade 100 Electro-Galvanized | Chain Weight: 0.47 lb/ft | Shipping Weight with 10' Lift: 13.9 lb

Features:

• Heavy-duty cast hook latches are designed to reduce the need for latch replacement.
• Corrosion-resistant finish provides additional durability.
• Ergonomic handle grip helps reduce operator fatigue during manual operation.
• Single chain fall provides the specified lifting configuration for the 1 metric ton KL100.
• Full bearing construction on the load sprocket and pinion shaft reduces chain pull effort and supports longer life.
• Fused brake disc provides the specified braking design for extended brake life.
• Premium-grade 100 electro-galvanized chain provides corrosion resistance and increased durability.
• Compact design accommodates applications where available operating space is limited.
• The V configuration provides the optional overload clutch specified by the manufacturer.
• CE-certified construction meets or exceeds regional requirements including ASME B30.21 and HST-3M.

Applications:

• Manual load positioning — provides controlled lifting and positioning for loads within the 2,200 lb rated capacity.
• Maintenance and repair — suitable for positioning equipment, components, and machinery where a manual lever hoist is appropriate.
• Rigging operations — the single-chain-fall configuration provides the specified lifting arrangement for this capacity.
• 10 ft lift applications — provides the specified vertical travel for applications requiring this lift length.
• Manual lifting with overload protection — the V configuration provides the optional overload clutch specified for this SKU.
• Confined-space work — the compact design helps accommodate applications where available operating space is limited.

FAQs:

• Q: What is the capacity of the KL100V-10?
  A: The KL100V-10 is rated for 1 metric ton, equivalent to 2,200 lb.
• Q: What does the “V” in KL100V-10 indicate?
  A: The V identifies the optional overload protection in the Kinetic Series ordering system.
• Q: Does the KL100V-10 include overload protection?
  A: Yes. The V designation specifies the optional overload clutch.
• Q: What does the 10 ft lift indicate?
  A: The 10 in the SKU identifies this KL100 configuration with a 10 ft lift.
• Q: How many chain falls does the KL100V-10 have?
  A: The KL100 uses 1 chain fall.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 66.1 lb of pull to lift the rated load.
• Q: What type of load chain does the KL100V-10 use?
  A: The Kinetic Series uses premium-grade 100 electro-galvanized load chain designed for corrosion resistance and increased durability.
• Q: What is the load-chain weight?
  A: The manufacturer lists the KL100 load chain at 0.47 lb per foot.
• Q: What is the shipping weight of the KL100V-10?
  A: The manufacturer lists 13.9 lb shipping weight with 10 ft of lift, which corresponds to this SKU's 10 ft configuration.
• Q: Can the KL100V-10 be used in tight spaces?
  A: Yes. The manufacturer describes the Kinetic Series as having a compact design for tight spaces.
