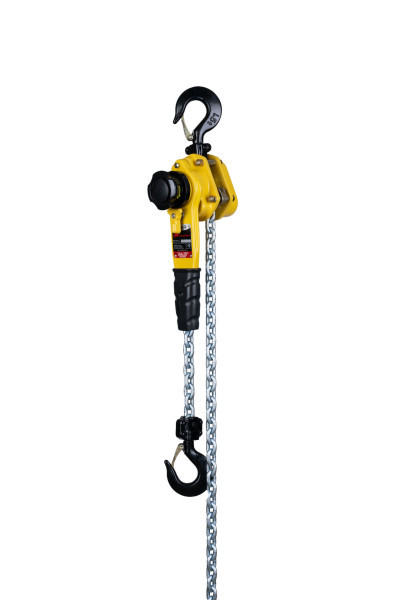

Built for controlled manual lifting, pulling, positioning, and rigging, the Ingersoll Rand KL100 Kinetic Series Lever Chain Hoist provides a 1 metric ton (2,200 lb) rated capacity with 1 chain fall. All-steel construction, full bearing construction on the load sprocket and pinion shaft, and a compact design make this hoist suitable for manual lifting applications where reduced pull effort and maneuverability are important.
The KL100 requires 66.1 lb of pull to lift the rated load and uses premium-grade 100 electro-galvanized load chain weighing 1.21 lb per foot. Full bearing construction helps reduce pull effort and support longer service life, while the reinforced double-pawl brake with large-diameter pawl springs provides the specified brake system. Heavy-duty cast hook latches and the Kinetic Series compact design further support practical operation in demanding and space-limited lifting applications.
Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL100 | Capacity: 1 Metric Ton (2,200 lb) | Chain Falls: 1 | Pull to Lift Rated Load: 66.1 lb | Load Chain Type: Premium Grade 100 Electro-Galvanized | Chain Weight: 1.21 lb/ft | Shipping Weight with 10' Lift: 13.9 lb
Features:
- All-steel construction provides exceptional durability with reduced weight.
- Reinforced double-pawl brake with large-diameter pawl springs provides a dependable braking system.
- Full bearing construction on the load sprocket and pinion shaft reduces pull effort and supports longer service life.
- Premium-grade 100 electro-galvanized chain is designed for corrosion resistance and increased durability.
- Heavy-duty cast hook latches are designed to reduce latch replacement.
- Corrosion-resistant finish provides additional durability.
- Single chain fall provides the specified lifting configuration for the 1 metric ton KL100.
- Compact design accommodates applications where available operating space is limited.
- Overload clutch is available as an option on all Kinetic Series capacities.
- CE-certified construction meets or exceeds regional requirements including ASME B30.16 and HST-2M, according to the manufacturer catalog.
Applications:
- Manual load positioning — provides controlled lifting and positioning for loads within the 2,200 lb rated capacity.
- Maintenance and repair — suitable for positioning equipment, components, and machinery where a compact manual lever hoist is appropriate.
- Rigging operations — the single-chain-fall configuration provides the specified lifting arrangement for this capacity.
- Material handling — provides a 1 metric ton lifting capacity for compatible manual lifting applications.
- Confined-space work — the compact Kinetic Series design accommodates applications where operating space is limited.
FAQs:
- Q: What is the capacity of the KL100?
A: The KL100 is rated for 1 metric ton, equivalent to 2,200 lb. - Q: How many chain falls does the KL100 have?
A: The KL100 uses 1 chain fall. - Q: How much pull is required to lift the rated load?
A: The manufacturer specifies 66.1 lb of pull to lift the rated load. - Q: What type of load chain does the KL100 use?
A: The Kinetic Series uses premium-grade 100 electro-galvanized load chain designed for corrosion resistance and increased durability. - Q: What is the load-chain weight for the KL100?
A: The manufacturer lists the KL100 chain at 1.21 lb per foot. - Q: What is the shipping weight of the KL100?
A: The manufacturer lists 13.9 lb shipping weight with 10 ft of lift. - Q: Does the KL100 include an overload clutch?
A: The manufacturer identifies the overload clutch as an optional feature on all Kinetic Series capacities. The base KL100 designation does not identify the optional V configuration. - Q: Can the KL100 be used in tight spaces?
A: Yes. The manufacturer describes the Kinetic Series as having a compact design suitable for tight spaces.
| SKU | CAPACITY | NUMBER OF FALLS | PULL TO LIFT RATED LOAD | CHAIN WEIGHT | SHIPPING WEIGHT WITH 10' OF LIFT | ||||
|---|---|---|---|---|---|---|---|---|---|
| LBS | METRIC TONS | LB | KG | LB/FT | KG/FT | LB | KG | ||
| KL075 | 1,650 | 0.75 | 1 | 48.3 | 21.9 | 0.47 | 0.21 | 13.4 | 6.1 |
| KL100 | 2,200 | 1 | 1 | 66.1 | 30 | 0.47 | 0.21 | 13.9 | 6.3 |
| KL150 | 3,300 | 1.5 | 1 | 68.1 | 30.9 | 0.74 | 0.34 | 18.7 | 8.5 |
| KL300 | 6,600 | 3 | 1 | 83.6 | 37.9 | 1.48 | 0.67 | 31.3 | 14.2 |
| KL600 | 13,200 | 6 | 2 | 85.9 | 39 | 2.95 | 1.34 | 58.6 | 26.6 |
| KL900 | 19,800 | 9 | 3 | 88.1 | 40 | 4.43 | 2.01 | 102.5 | 46.5 |
Looking for more information about the Ingersoll Rand Hoist? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Hoists for your assembly application, please email info@intlairtool.com or call (800) 608-5210
