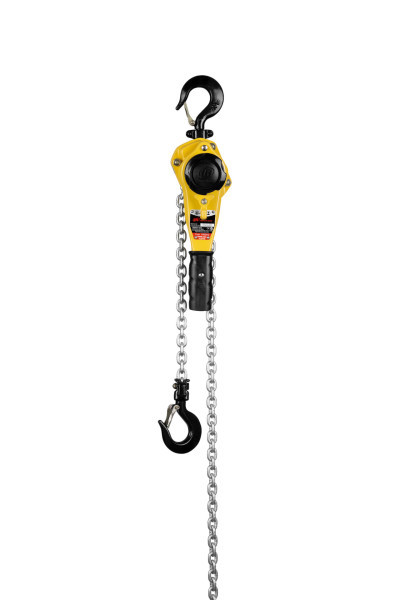

Ingersoll Rand KL100-5 KL Kinetic Series Lever Chain Hoist | 1 Ton Capacity | 5 ft Lift | 1 Chain Falls

Built for controlled manual lifting, pulling, positioning, and rigging, the Ingersoll Rand KL100-5 Kinetic Series Lever Chain Hoist provides a 1 metric ton (2,200 lb) rated capacity with a 5 ft lift and 1 chain fall. All-steel construction, full bearing construction on the load sprocket and pinion shaft, and a compact design support manual lifting applications where reduced pull effort and maneuverability are important.

The KL100 requires 66.1 lb of pull to lift the rated load and uses premium-grade 100 electro-galvanized load chain weighing 1.21 lb per foot. Full bearing construction helps reduce pull effort and support longer life, while the reinforced double-pawl brake with large-diameter pawl springs provides the specified braking system. Heavy-duty cast hook latches and the compact Kinetic Series design further support practical operation in applications where available space is limited.

Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL100-5 | Capacity: 1 Metric Ton (2,200 lb) | Lift: 5 ft | Chain Falls: 1 | Pull to Lift Rated Load: 66.1 lb | Load Chain Type: Premium Grade 100 Electro-Galvanized | Chain Weight: 1.21 lb/ft | Shipping Weight with 10' Lift: 13.9 lb

Features:

• All-steel construction provides exceptional durability and light weight.
• Reinforced double-pawl brake with large-diameter pawl springs provides a highly dependable brake system.
• Full bearing construction on the load sprocket and pinion shaft reduces pull effort and supports longer life.
• Premium-grade 100 electro-galvanized chain is designed for exceptional corrosion resistance and increased durability.
• Heavy-duty cast hook latches are designed to reduce latch replacement.
• Single chain fall provides the specified lifting configuration for the 1 metric ton KL100.
• Compact design accommodates applications where available operating space is limited.
• CE-certified construction meets or exceeds regional requirements including ASME B30.16 and HST-2M.
• An overload clutch is available on all Kinetic Series capacities as an option.

Applications:

• Manual load positioning — provides controlled lifting and positioning for loads within the 2,200 lb rated capacity.
• Maintenance and repair — suitable for positioning equipment, components, and machinery where a manual lever hoist is appropriate.
• Rigging operations — the single-chain-fall configuration provides the specified lifting arrangement for this capacity.
• Short-lift material handling — the 5 ft lift provides a shorter vertical travel option for applications that do not require a longer lift.
• Confined-space work — the compact Kinetic Series design accommodates applications where operating space is limited.

FAQs:

• Q: What is the capacity of the KL100-5?
  A: The KL100-5 is rated for 1 metric ton, equivalent to 2,200 lb.
• Q: What does the 5 ft lift indicate?
  A: The 5 in the SKU identifies this KL100 configuration with a 5 ft lift.
• Q: How many chain falls does the KL100-5 have?
  A: The KL100 uses 1 chain fall.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 66.1 lb of pull to lift the rated load.
• Q: What type of load chain does the KL100-5 use?
  A: The Kinetic Series uses premium-grade 100 electro-galvanized load chain designed for corrosion resistance and increased durability.
• Q: What is the load-chain weight?
  A: The manufacturer lists the KL100 load chain at 1.21 lb per foot.
• Q: What is the shipping weight of the KL100-5?
  A: The manufacturer lists 13.9 lb shipping weight with 10 ft of lift. The catalog does not provide a separate shipping-weight figure for the 5 ft configuration.
• Q: Does the KL100-5 include an overload clutch?
  A: The manufacturer states that an overload clutch is available on all Kinetic Series capacities as an option. The KL100-5 designation does not identify the optional V configuration, so the clutch has not been represented as included.
• Q: Can the KL100-5 be used in tight spaces?
  A: Yes. The manufacturer describes the Kinetic Series as compact and suitable for applications where operating space is limited.
