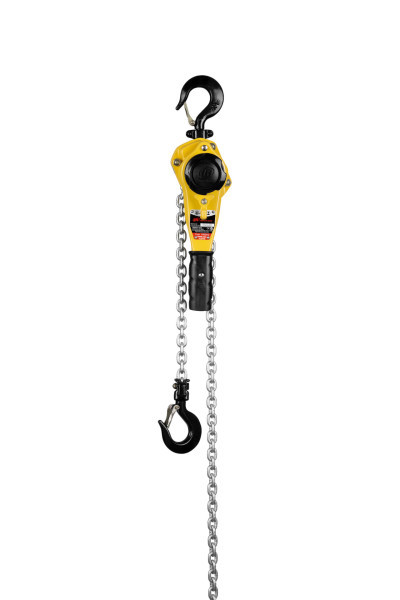

Built for controlled manual lifting, pulling, positioning, and rigging, the Ingersoll Rand KL100-10 Kinetic Series Lever Chain Hoist provides a 1 metric ton (2,200 lb) rated capacity with a 10 ft lift and 1 chain fall. All-steel construction, full bearing construction on the load sprocket and pinion shaft, and a compact design make this hoist suitable for manual lifting applications where reduced pull effort and maneuverability are important.
The KL100 requires 66.1 lb of pull to lift the rated load and uses premium-grade 100 electro-galvanized load chain weighing 0.47 lb per foot. Full bearing construction helps reduce chain pull effort and support longer service life, while the fused brake disc provides the specified braking system. Heavy-duty cast hook latches, an ergonomic handle grip, and a corrosion-resistant finish further support practical operation. The 10 ft configuration provides the specified lift length for this SKU.
Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL100-10 | Capacity: 1 Metric Ton (2,200 lb) | Lift: 10 ft | Chain Falls: 1 | Pull to Lift Rated Load: 66.1 lb | Load Chain Type: Premium Grade 100 Electro-Galvanized | Chain Weight: 0.47 lb/ft | Shipping Weight: 13.9 lb
Features:
- All-steel construction provides the specified Kinetic Series construction for durability and reduced weight.
- Heavy-duty cast hook latches are designed to reduce latch replacement.
- Corrosion-resistant finish provides additional durability.
- Ergonomic handle grip helps reduce operator fatigue during manual operation.
- Single chain fall provides the specified lifting configuration for the 1 metric ton KL100.
- Full bearing construction on the load sprocket and pinion shaft reduces pull effort and supports longer service life.
- Fused brake disc provides the specified brake design for extended brake life.
- Premium-grade 100 electro-galvanized chain provides corrosion resistance and increased durability.
- Compact design accommodates applications where available operating space is limited.
- Overload clutch is available as an option on all Kinetic Series capacities.
- CE-certified construction meets or exceeds regional requirements including ASME B30.21 and HST-3M, according to the manufacturer catalog.
Applications:
- Manual load positioning — provides controlled lifting and positioning for loads within the 2,200 lb rated capacity.
- Maintenance and repair — suitable for positioning equipment, components, and machinery where a manual lever hoist is appropriate.
- Rigging operations — the single-chain-fall configuration provides the specified lifting arrangement for this capacity.
- 10 ft lift applications — provides the specified vertical travel for applications requiring this lift length.
- Confined-space work — the compact Kinetic Series design accommodates applications where available operating space is limited.
FAQs:
- Q: What is the capacity of the KL100-10?
A: The KL100-10 is rated for 1 metric ton, equivalent to 2,200 lb. - Q: What does the 10 ft lift indicate?
A: The 10 in the SKU identifies this KL100 configuration with a 10 ft lift. - Q: How many chain falls does the KL100-10 have?
A: The KL100 uses 1 chain fall. - Q: How much pull is required to lift the rated load?
A: The manufacturer specifies 66.1 lb of pull to lift the rated load. - Q: What type of load chain does the KL100-10 use?
A: The Kinetic Series uses premium-grade 100 electro-galvanized load chain designed for corrosion resistance and increased durability. - Q: What is the load-chain weight?
A: The manufacturer lists the KL100 load chain at 0.47 lb per foot. - Q: What is the shipping weight of the KL100-10?
A: The manufacturer lists 13.9 lb shipping weight with 10 ft of lift, corresponding to this SKU's 10 ft configuration. - Q: Does the KL100-10 include an overload clutch?
A: The manufacturer identifies the overload clutch as optional on all Kinetic Series capacities. The KL100-10 designation does not include the V overload-protection option. - Q: Can the KL100-10 be used in tight spaces?
A: Yes. The manufacturer describes the Kinetic Series as having a compact design for tight spaces.
| SKU | CAPACITY | NUMBER OF FALLS | PULL TO LIFT RATED LOAD | CHAIN WEIGHT | SHIPPING WEIGHT WITH 10' OF LIFT | ||||
|---|---|---|---|---|---|---|---|---|---|
| LBS | METRIC TONS | LB | KG | LB/FT | KG/FT | LB | KG | ||
| KL075 | 1,650 | 0.75 | 1 | 48.3 | 21.9 | 0.47 | 0.21 | 13.4 | 6.1 |
| KL100 | 2,200 | 1 | 1 | 66.1 | 30 | 0.47 | 0.21 | 13.9 | 6.3 |
| KL150 | 3,300 | 1.5 | 1 | 68.1 | 30.9 | 0.74 | 0.34 | 18.7 | 8.5 |
| KL300 | 6,600 | 3 | 1 | 83.6 | 37.9 | 1.48 | 0.67 | 31.3 | 14.2 |
| KL600 | 13,200 | 6 | 2 | 85.9 | 39 | 2.95 | 1.34 | 58.6 | 26.6 |
| KL900 | 19,800 | 9 | 3 | 88.1 | 40 | 4.43 | 2.01 | 102.5 | 46.5 |
