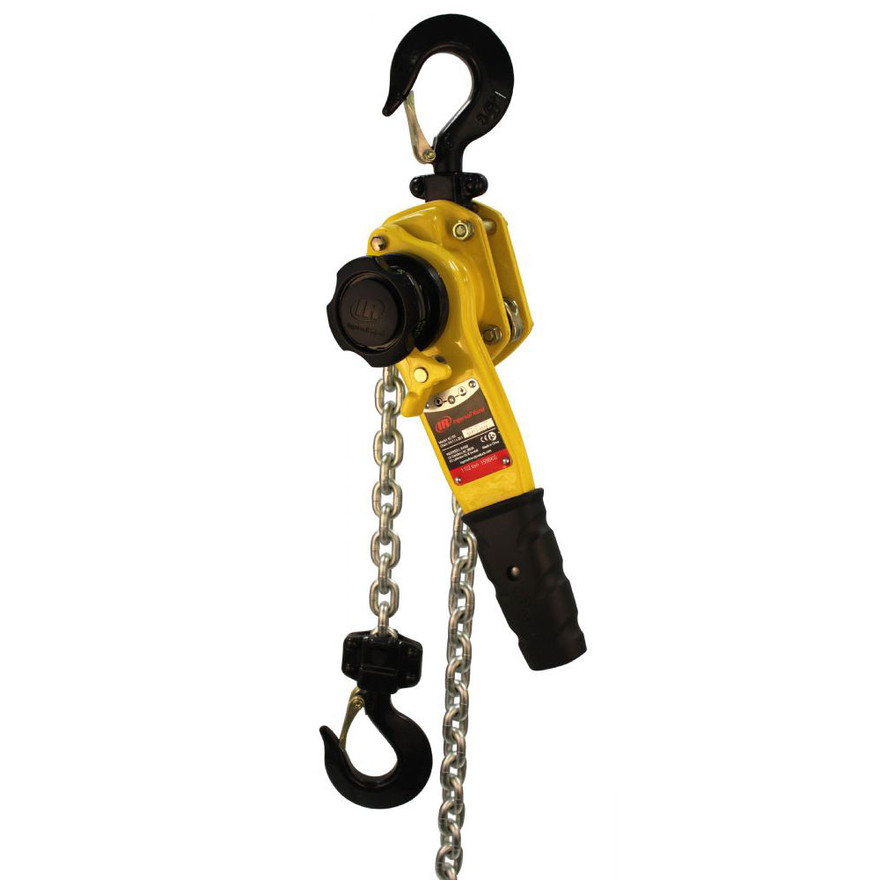

Ingersoll Rand KL075V KL Kinetic Series Lever Chain Hoist | 0.75 Ton Capacity | 1 Chain Falls | Overload Protection

Designed for controlled manual lifting, pulling, positioning, and rigging, the Ingersoll Rand KL075V Kinetic Series Lever Chain Hoist provides a 0.75 metric ton (1,650 lb) rated capacity with 1 chain fall and the V overload-clutch option. Its all-steel construction, compact design, and extensive use of bearings support manual lifting applications where reduced pull effort and maneuverability are important.

The KL075 requires 48.3 lb of pull to lift the rated load and uses premium-grade 100 electro-galvanized load chain weighing 0.47 lb per foot. Full bearing construction on the load sprocket and pinion shaft helps reduce pull effort and support longer service life, while the reinforced double-pawl brake provides the specified braking system. The V overload clutch provides the specified overload-protection option, while the compact housing and ergonomic handle support operation where space is limited.

Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL075V | Capacity: 0.75 Metric Tons (1,650 lb) | Chain Falls: 1 | Overload Protection: Overload Clutch | Pull to Lift Rated Load: 48.3 lb | Load Chain Type: Premium Grade 100 Electro-Galvanized | Chain Weight: 0.47 lb/ft | Shipping Weight with 10' Lift: 13.4 lb

Features:

• All-steel construction provides the specified Kinetic Series construction.
• Reinforced double-pawl brake with large-diameter pawl springs provides a dependable braking system.
• Full bearing construction on the load sprocket and pinion shaft reduces pull effort and supports longer service life.
• Premium-grade 100 electro-galvanized chain provides corrosion resistance for increased durability.
• Heavy-duty cast hook latches are designed for less latch replacement.
• Corrosion-resistant finish provides additional durability.
• Ergonomic handle grip helps reduce operator fatigue during manual operation.
• Single chain fall provides the specified lifting configuration for the 0.75 metric ton KL075.
• V overload clutch provides the specified overload-protection option for this configuration.
• Compact design accommodates applications where available operating space is limited.
• CE-certified construction meets or exceeds regional requirements including ASME B30.16 and HST-2M, according to the manufacturer catalog.

Applications:

• Manual load positioning — provides controlled lifting and positioning for loads within the 1,650 lb rated capacity.
• Maintenance and repair — suitable for positioning equipment, components, and machinery where a compact manual lever hoist is appropriate.
• Rigging operations — the single-chain-fall configuration provides the specified lifting arrangement for this capacity.
• Confined-space work — the compact design helps accommodate applications where available operating space is limited.
• Manual lifting with overload protection — the V configuration adds the manufacturer-specified overload clutch option for applications where that protection is required.

FAQs:

• Q: What is the capacity of the KL075V?
  A: The KL075V is rated for 0.75 metric ton, equivalent to 1,650 lb.
• Q: What does the “V” in KL075V mean?
  A: The V identifies the overload clutch option in the Kinetic Series ordering system.
• Q: Does the KL075V have overload protection?
  A: Yes. The V configuration specifies the optional overload clutch.
• Q: How many chain falls does the KL075V have?
  A: The KL075 uses 1 chain fall.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 48.3 lb of pull to lift the rated load.
• Q: What type of load chain does the KL075V use?
  A: The Kinetic Series uses premium-grade 100 electro-galvanized load chain designed for corrosion resistance and increased durability.
• Q: What is the chain weight?
  A: The manufacturer lists the KL075 load chain at 0.47 lb per foot.
• Q: Is a specific lift length included with KL075V?
  A: The supplied SKU identifies the base KL075 with the V overload-clutch option and does not specify a lift suffix. No particular lift length has therefore been added.
• Q: What is the shipping weight of the KL075V?
  A: The manufacturer lists 13.4 lb shipping weight with 10 ft of lift for the KL075. The source does not provide a separate shipping-weight figure for the V configuration.
