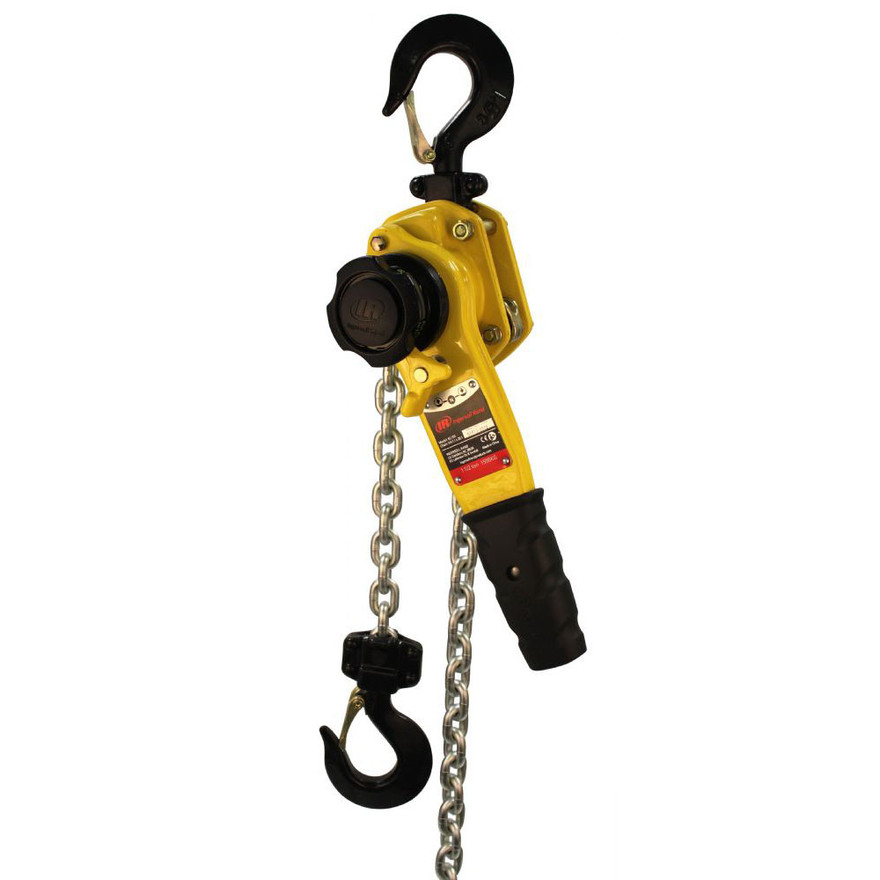

Ingersoll Rand KL075V-20 KL Kinetic Series Lever Chain Hoist | 0.75 Ton Capacity | 20 ft Lift | 1 Chain Falls | Overload Protection

Designed for controlled manual lifting, pulling, positioning, and rigging, the Ingersoll Rand KL075V-20 Kinetic Series Lever Chain Hoist provides a 0.75 metric ton (1,650 lb) rated capacity with a 20 ft lift, 1 chain fall, and the V overload-clutch option. All-steel construction, extensive use of bearings, and a compact design support manual lifting applications where reduced pull effort and maneuverability are important.

The KL075 requires 48.3 lb of pull to lift the rated load and uses premium-grade 100 electro-galvanized load chain weighing 0.47 lb per foot. Full bearing construction on the load sprocket and pinion shaft helps reduce chain pull effort and support longer service life, while the fused brake disc provides the specified braking system. Heavy-duty cast hook latches, an ergonomic handle grip, and the compact housing further support operation in space-limited applications. The V configuration adds the manufacturer-specified optional overload clutch.

Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL075V-20 | Capacity: 0.75 Metric Tons (1,650 lb) | Lift: 20 ft | Chain Falls: 1 | Overload Protection: Overload Clutch | Pull to Lift Rated Load: 48.3 lb | Load Chain Type: Premium Grade 100 Electro-Galvanized | Chain Weight: 0.47 lb/ft | Shipping Weight with 10' Lift: 13.4 lb

Features:

• All-steel construction provides the specified Kinetic Series construction.
• Heavy-duty cast hook latches are designed for less latch replacement.
• Corrosion-resistant finish provides additional durability.
• Ergonomic handle grip helps reduce operator fatigue during manual operation.
• Single chain fall provides the specified lifting configuration for the 0.75 metric ton KL075.
• Full bearing construction on the load sprocket and pinion shaft reduces chain pull effort and supports longer service life.
• Fused brake disc provides the specified brake design for extended brake life.
• Premium-grade 100 electro-galvanized chain provides the specified corrosion-resistant load-chain construction.
• Compact design accommodates applications where available operating space is limited.
• The V configuration provides the optional overload clutch specified by the manufacturer.
• CE-certified construction meets or exceeds regional requirements including ASME B30.21 and HST-3M, according to the manufacturer catalog.

Applications:

• Manual load positioning — provides controlled lifting and positioning for loads within the 1,650 lb rated capacity.
• Maintenance and repair — suitable for positioning equipment, components, and machinery where a compact manual lever hoist is appropriate.
• Rigging operations — the single-chain-fall configuration provides the specified lifting arrangement for this capacity.
• Extended-lift material handling — the 20 ft lift provides additional vertical travel for applications requiring a longer lifting range.
• Manual lifting with overload protection — the V configuration provides the optional overload clutch for applications where that feature is selected.
• Confined-space work — the compact design helps accommodate applications where available operating space is limited.

FAQs:

• Q: What is the capacity of the KL075V-20?
  A: The KL075V-20 is rated for 0.75 metric ton, equivalent to 1,650 lb.
• Q: What does the 20 ft lift indicate?
  A: The 20 in the SKU identifies this KL075 configuration with a 20 ft lift.
• Q: What does the “V” in KL075V-20 indicate?
  A: The V identifies the optional overload clutch in the Kinetic Series ordering system.
• Q: Does the KL075V-20 include overload protection?
  A: Yes. The V configuration identifies the optional overload clutch.
• Q: How many chain falls does the KL075V-20 have?
  A: The KL075 uses 1 chain fall.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 48.3 lb of pull to lift the rated load.
• Q: What type of load chain does the KL075V-20 use?
  A: The Kinetic Series uses premium-grade 100 electro-galvanized load chain designed for corrosion resistance and increased durability.
• Q: What is the chain weight?
  A: The manufacturer lists the KL075 load chain at 0.47 lb per foot.
• Q: What is the shipping weight of the KL075V-20?
  A: The manufacturer lists 13.4 lb shipping weight with 10 ft of lift for the KL075. The catalog does not provide a separate shipping-weight figure for the 20 ft configuration.
• Q: Can the KL075V-20 be used in tight spaces?
  A: Yes. The manufacturer describes the Kinetic Series as having a compact design for tight spaces.
