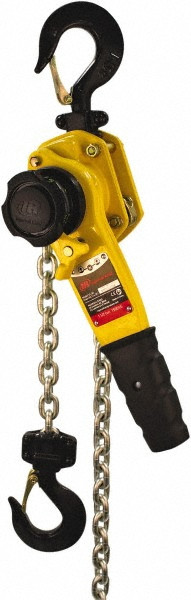

Ingersoll Rand KL075-5 KL Kinetic Series Lever Chain Hoist | 0.75 Ton Capacity | 5 ft Lift | 1 Chain Falls

Designed for controlled manual lifting, pulling, positioning, and rigging, the Ingersoll Rand KL075-5 Kinetic Series Lever Chain Hoist provides a 0.75 metric ton (1,650 lb) rated capacity with a 5 ft lift and 1 chain fall. Its compact Kinetic Series design combines all-steel construction, bearing-supported load-sprocket and pinion-shaft operation, and a corrosion-resistant finish for manual lifting applications where a lightweight, compact hoist is required.

The KL075 requires 48.3 lb of pull to lift the rated load and uses premium-grade 100 electro-galvanized load chain designed for corrosion resistance. Full bearing construction on the load sprocket and pinion shaft helps reduce chain pull effort and support longer service life, while the ergonomic handle grip is designed to reduce operator fatigue. A fused brake disc provides the specified braking design, and the compact housing is suited to work in tight spaces.

Type: Lever Chain Hoist | Series: Kinetic Series | Model: KL075-5 | Capacity: 0.75 Metric Tons (1,650 lb) | Lift: 5 ft | Chain Falls: 1 | Pull to Lift Rated Load: 48.3 lb | Chain Weight: 0.47 lb/ft | Shipping Weight with 10 ft Lift: 13.4 lb

Features:

• Heavy-duty cast hook latches are designed to reduce the need for latch replacement.
• Corrosion-resistant finish provides additional durability.
• Ergonomic handle grip is designed to reduce operator fatigue during manual operation.
• Single chain fall provides the specified lifting configuration for the 0.75 metric ton KL075.
• Full bearing construction on the load sprocket and pinion shaft reduces chain pull effort and supports longer service life.
• Fused brake disc provides the specified brake design for extended brake life.
• Premium-grade 100 electro-galvanized chain provides increased corrosion resistance and durability.
• Compact design allows operation in tight spaces.
• CE-certified construction meets or exceeds regional requirements including ASME B30.21 and HST-3M, according to the manufacturer catalog.
• Overload clutch is available as an option on Kinetic Series capacities; the supplied KL075-5 SKU does not include the V option in its model designation.

Applications:

• Manual load positioning — provides controlled lifting and positioning for loads within the 1,650 lb rated capacity.
• Maintenance and repair — suitable for positioning equipment, components, and machinery where a compact manual lever hoist is appropriate.
• Rigging operations — the single-chain-fall configuration provides the specified lifting arrangement for this capacity.
• Confined-space work — the compact design helps accommodate applications where available operating space is limited.
• Material handling — the 5 ft lift provides short vertical travel for applications that do not require a longer lift.

FAQs:

• Q: What is the capacity of the KL075-5?
  A: The KL075-5 is rated for 0.75 metric ton, equivalent to 1,650 lb.
• Q: What does the 5 ft lift indicate?
  A: The SKU identifies the KL075 configured with a 5 ft lift.
• Q: How many chain falls does the KL075-5 have?
  A: The KL075 uses 1 chain fall.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 48.3 lb of pull to lift the rated load.
• Q: What type of load chain does the Kinetic Series use?
  A: The manufacturer specifies premium-grade 100 electro-galvanized chain designed for corrosion resistance and increased durability.
• Q: How much does the KL075 weigh?
  A: The manufacturer lists 13.4 lb shipping weight for the KL075 with 10 ft of lift. The source does not provide a separate shipping weight for the 5 ft configuration.
• Q: Does the KL075-5 include an overload clutch?
  A: The overload clutch is an optional Kinetic Series feature. The KL075-5 SKU does not include the V overload-protection option in its model designation, so an overload clutch has not been represented as included.
• Q: Can the KL075-5 be used in tight spaces?
  A: Yes. The manufacturer describes the Kinetic Series as having a compact design for tight spaces.

Looking for more information about the Ingersoll Rand Hoist? Click here to view the Catalog

For help choosing the proper Ingersoll Rand Hoists for your assembly application, please email info@intlairtool.com or call (800) 608-5210
