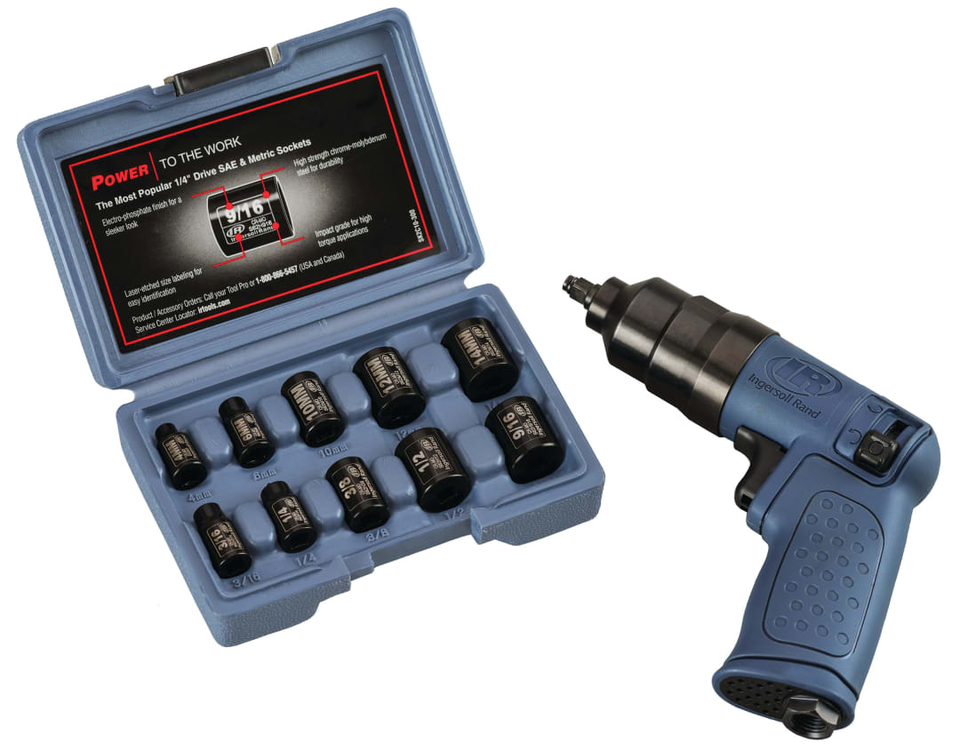

Ingersoll Rand Mini Air Impact Wrench Kit | 2101KA | 55 (ft-lbs) Torque | 1/4" Square Drive

For small fasteners in confined spaces, the Ingersoll Rand 2101KA Mini Air Impact Wrench Kit combines compact pneumatic fastening performance with a convenient socket set for vehicle repair and general maintenance work. The kit includes the 2101XPA Mini Air Impact Wrench featuring a 1/4" square drive and up to 55 ft-lbs of maximum reverse torque for loosening small nuts and bolts. Its rocking dog impact mechanism (which uses a rotating hammer to deliver short, powerful impacts) works with a finely tuned five-vane motor to provide responsive fastening power. With a 14,500 RPM free speed and 3,650 blows per minute, the wrench supports quick fastener rundown during repair and assembly tasks.

The included 2101XPA wrench weighs just 1.5 lbs and measures 6.9" in overall length, making it suitable for reaching fasteners around vehicle components, equipment housings, and compact assemblies. Its pistol-grip configuration and trigger actuation provide straightforward tool operation, while the accessible forward/reverse switch allows convenient direction changes. The composite housing keeps the tool lightweight, and the rocking dog mechanism provides reliable impact action with relatively low air requirements. Supplied with 10 standard sockets, the 2101KA kit offers a practical fastening solution for automotive repair shops, maintenance technicians, and workshop users handling smaller threaded fasteners.

Type: Mini Air Impact Wrench Kit | Model: 2101KA | SKU: 2101KA | Included Wrench: 2101XPA | Drive Size: 1/4" Square | Impact Mechanism: Rocking Dog | Max Forward Torque: 50 ft-lbs (68 Nm) | Max Reverse Torque: 55 ft-lbs (75 Nm) | Free Speed: 14,500 RPM | Blows Per Minute: 3,650 BPM | Operating Pressure: 90 PSI (6.2 bar) | Air Inlet: 1/4" NPT | Minimum Hose Size: 3/8" | Configuration: Pistol Grip | Actuation: Trigger | Exhaust Location: Bottom | Tool Weight: 1.5 lbs (0.7 kg) | Tool Length: 6.9" (175 mm) | Vibration Level: 3 m/s² | Free Speed Sound Pressure: 83.5 dB(A)

Features:

• Rocking dog impact mechanism delivers powerful impact action for small fastening tasks and is straightforward to maintain.
• Five-vane air motor provides responsive pneumatic performance in a compact tool configuration.
• Maximum reverse torque of 55 ft-lbs supports loosening small threaded fasteners during repair and assembly work.
• 14,500 RPM free speed allows rapid fastener rundown when operating without load.
• Compact pistol-grip construction improves access to fasteners in narrow or restricted working spaces.
• Lightweight composite housing reduces the weight operators handle during repeated fastening operations.
• Accessible forward/reverse switch allows convenient direction changes with one hand.
• Kit includes 10 standard sockets for use with the supplied mini impact wrench.

Kit Includes:

• One Ingersoll Rand 2101XPA 1/4" Square Drive Mini Air Impact Wrench.
• One set of 10 standard sockets.

Applications:

• Automotive repair shops - removing and installing small fasteners around vehicle components and assemblies.
• Vehicle body shops - working with accessible light fastening points during vehicle repair and component servicing.
• Industrial maintenance and MRO - servicing small threaded fasteners on equipment and mechanical assemblies.
• General workshop repairs - loosening and tightening nuts and bolts where a compact impact wrench is appropriate.
• Equipment servicing - reaching small fasteners in restricted spaces where larger impact wrenches are difficult to position.

FAQs:

• Q: What is the maximum torque of the 2101KA?
  A: The included wrench delivers up to 55 ft-lbs of reverse torque.
• Q: What comes in the 2101KA kit?
  A: One 2101XPA Mini Impact Wrench and 10 standard sockets.
• Q: What size drive does the wrench use?
  A: It has a 1/4" square drive.
• Q: Is this kit suitable for automotive repairs?
  A: Yes, for small fasteners and light automotive repair tasks.
• Q: What air pressure does the wrench require?
  A: Its rated operating pressure is 90 PSI.
