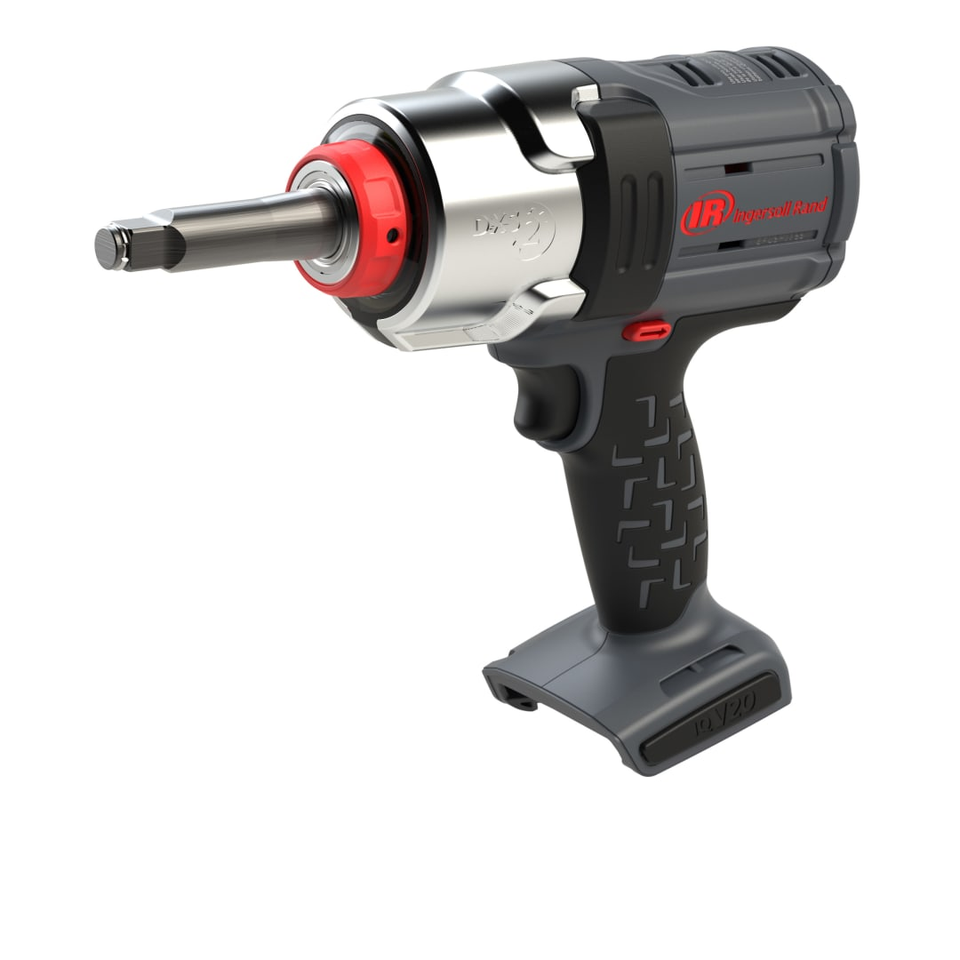

Ingersoll Rand DXS2 Cordless Torque-Limited Impact Wrench | W7253-TL | 2" Ext Anvil | 1/2" Square Drive | (Bare Tool Only, Battery Not Included)

For passenger car tire service where controlling wheel nut tightening torque is essential, the Ingersoll Rand W7253-TL DXS2 Cordless Torque-Limited Impact Wrench combines powerful fastener removal with controlled tightening. Featuring a 1/2" square drive and 2" extended anvil, this cordless impact wrench provides additional reach for accessing recessed wheel fasteners. Its forward torque-limiting system is factory-set to 76 ft-lbs (103 Nm), helping reduce accidental overtightening of lug nuts that could damage wheel and brake components. For removal operations, the tool delivers up to 1,600 ft-lbs of breakaway torque when used with compatible 3/4" DXS drive accessories, providing substantial loosening power for stubborn fasteners.

Powered by the 20V IQV20 cordless battery platform, the W7253-TL features Ingersoll Rand's DXS Drive Xchange System, which allows compatible anvils and direct-drive sockets to be exchanged without conventional socket adapters. Its 1,900 RPM maximum free speed and 2,450 impacts per minute support efficient fastener removal, while IQV Power Control provides full-power reverse and one fixed forward tightening mode. The patented 360° shadowless LED light ring illuminates the work area, and a variable-speed trigger with electronic brake improves control. A steel-reinforced frame, chemical- and impact-resistant housing, and IPX6 environmental rating provide protection against challenging workshop conditions. Weighing 6.3 lbs without a battery, the wrench is suited to passenger vehicle tire shops, automotive repair facilities, and mobile tire service operations.

Note: The above product image is for illustration purposes only. This product is a Bare Tool only and does not include any batteries and chargers. Please note this before ordering.

Type: Cordless Forward Torque-Limited Impact Wrench | Model: W7253-TL | SKU: W7253-TL | Series: DXS2 | Battery Platform: IQV20 | Voltage: 20V DC | Drive Size: 1/2" Square | Drive System: DXS Drive Xchange System | Included Anvil: EA42H, 2" Extended Friction Ring | Forward Torque Limit: 76 ft-lbs (103 Nm) | Maximum Breakaway Torque: 1,600 ft-lbs (2,170 Nm), with 3/4" DXS Drive Accessories | Maximum Free Speed: 1,900 RPM | Forward No-Load Speed: 1,000 RPM | Impacts Per Minute: 2,450 BPM | Motor: Brushless | Power Control: Full-Power Reverse, Fixed Forward Torque-Limited Mode | Lighting: 360° LED Light Ring | Environmental Rating: IPX6 | Bare Tool Weight: 6.3 lbs (2.86 kg) | Overall Length: 10.2" (259 mm) | Impacting Sound Level: 95 dB(A) | Vibration Level: 17.0 m/s²

Features:

• Factory-set forward tightening limit of 76 ft-lbs helps reduce accidental overtightening of passenger vehicle wheel nuts.
• Delivers up to 1,600 ft-lbs of breakaway torque when paired with compatible 3/4" DXS drive accessories for stubborn fastener removal.
• Includes a 1/2" square-drive, 2" extended friction-ring anvil for improved access to recessed wheel fasteners.
• DXS Drive Xchange System supports interchangeable anvils and direct-drive sockets without requiring conventional socket adapters.
• IQV Power Control provides full-power reverse operation and a single forward torque-limited tightening mode.
• Patented 360° shadowless LED light ring improves visibility around wheel nuts and fasteners in poorly illuminated areas.
• Variable-speed trigger and electronic brake help control operation and stop drive rotation when the trigger is released.
• Steel-reinforced frame, chemical- and impact-resistant housing, premium overmold grip, and IPX6 environmental rating support use in busy repair environments.

Applications:

• Passenger vehicle tire service - removing wheel nuts and performing controlled preliminary tightening before final torque verification.
• Automotive repair shops - supporting tire rotations, wheel removal, and vehicle wheel assembly maintenance.
• Tire installation centers - helping reduce accidental overtightening during repeated passenger vehicle wheel service.
• Mobile tire service - providing cordless wheel nut removal and preliminary tightening without an air compressor or hose.
• Automotive dealership service departments - performing routine passenger vehicle tire and wheel maintenance.

FAQs:

• Q: What is the forward torque limit?
  A: It is factory-set to 76 ft-lbs.
• Q: What is the maximum breakaway torque?
  A: Up to 1,600 ft-lbs with compatible 3/4" DXS accessories.
• Q: What anvil comes with the wrench?
  A: A 1/2" square-drive, 2" extended friction-ring anvil.
• Q: Does this tool use IQV20 batteries?
  A: Yes, it is compatible with Ingersoll Rand IQV20 batteries.
• Q: Is a torque wrench still required?
  A: Yes. Always verify final wheel nut torque with a calibrated torque wrench.
