Ingersoll Rand Cordless Torque-Limited Kit | W9691TL-K4 | 2200 (ft-lbs) Torque | 1" Square Drive

For heavy truck wheel service, bus maintenance, and roadside tire repairs, the Ingersoll Rand W9691TL-K4 Cordless Torque-Limited Impact Wrench Kit combines powerful fastener removal with controlled wheel nut tightening. Part of the IQV20 W9000 Series, this cordless impact wrench delivers up to 3,000 ft-lbs of nut-busting torque (loosening force for stubborn fasteners) and 2,200 ft-lbs of maximum reverse torque. Its forward torque-limiting system provides up to 550 ft-lbs of tightening torque, with automatic shut-off settings that help reduce the risk of overtightening Class 8 truck wheel fasteners. The 1" square drive with 6" extended anvil provides additional reach for recessed wheel nuts and deep wheel assemblies.

Powered by two 20V IQV20 lithium-ion batteries, the W9691TL provides cordless mobility without air hoses, compressors, or hydraulic power equipment. Its torque-limited power regulator offers Snug and MID forward modes, automatically stopping tightening near the selected torque level. The tool delivers up to 890 RPM free speed in reverse and is rated for up to 250 fasteners per charge under manufacturer test conditions. An IP56-rated housing provides protection against dust and water ingress in challenging roadside conditions, while the D-handle and 360° adjustable auxiliary handle allow flexible positioning. The kit configuration includes four batteries and a dual-bay charger to support extended maintenance operations.

Type: Cordless Torque-Limited Impact Wrench Kit | Brand: Ingersoll Rand | Model: W9691TL-K4 | Series: W9000 / IQV20 | Drive Size: 1" | Drive Type: Square | Anvil: 6" Extended | Configuration: D-Handle | Motor: Brushless | Battery System: 2 × 20V IQV20 | Nut-Busting Torque: 3,000 ft-lbs | Maximum Reverse Torque: 2,200 ft-lbs | Maximum Forward Torque: 550 ft-lbs (746 Nm) | Snug Mode: 450 ft-lbs | MID Mode: 550 ft-lbs | Maximum Free Speed: 890 RPM | Forward Mode Speed: 540 RPM | Fasteners Per Charge: Up to 250 | Protection Rating: IP56 | Length: 26.1" (664 mm) | Weight With Batteries: 27.5 lbs (12.5 kg) | Battery Model: BL2022 | Battery Capacity: 5.0Ah | Kit Configuration: Four Batteries and Dual-Bay Charger

Features:

• Delivers 3,000 ft-lbs of nut-busting torque for stubborn fastener removal.
• Provides up to 2,200 ft-lbs of reverse operating torque.
• Torque-limited forward modes provide 450 and 550 ft-lbs settings.
• Automatic forward shut-off helps prevent wheel nut overtightening.

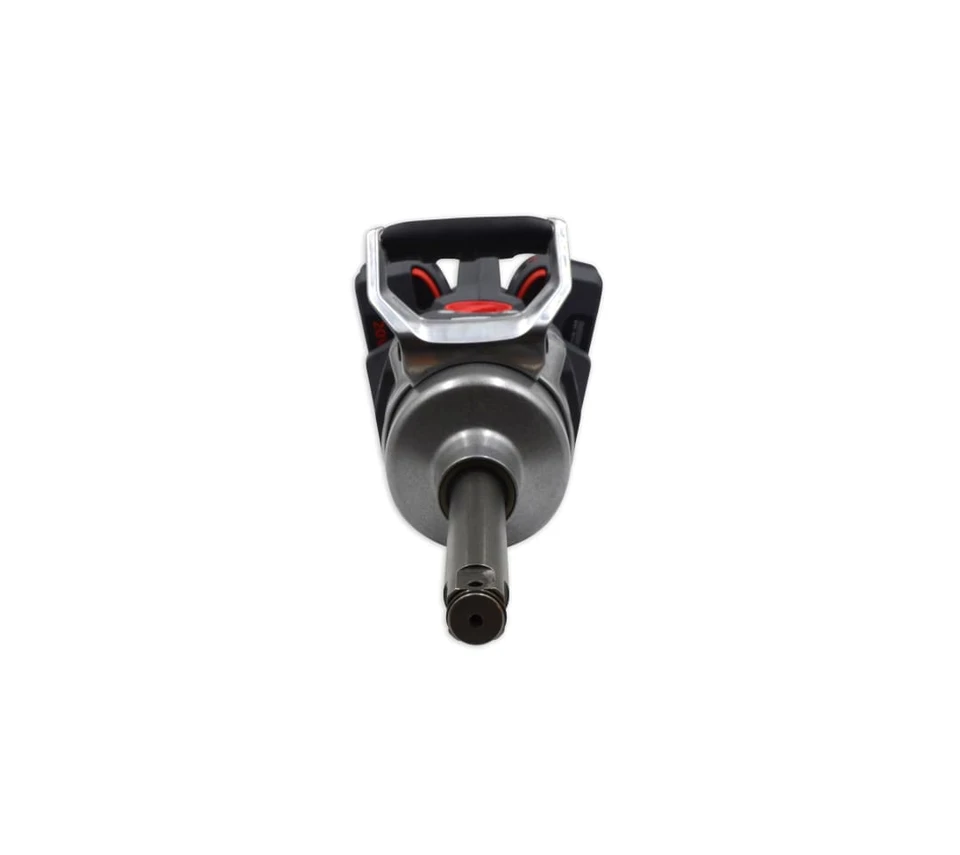

• 1" square drive with 6" extended anvil reaches recessed wheel fasteners.
• Brushless motor and IP56-rated housing support harsh working conditions.
• 360° adjustable auxiliary handle improves tool positioning.
• Cordless operation eliminates air hoses and compressor connections.

Kit Includes:

• One W9691TL 1" cordless torque-limited impact wrench with 6" extended anvil.
• Four BL2022 20V, 5.0Ah lithium-ion batteries.

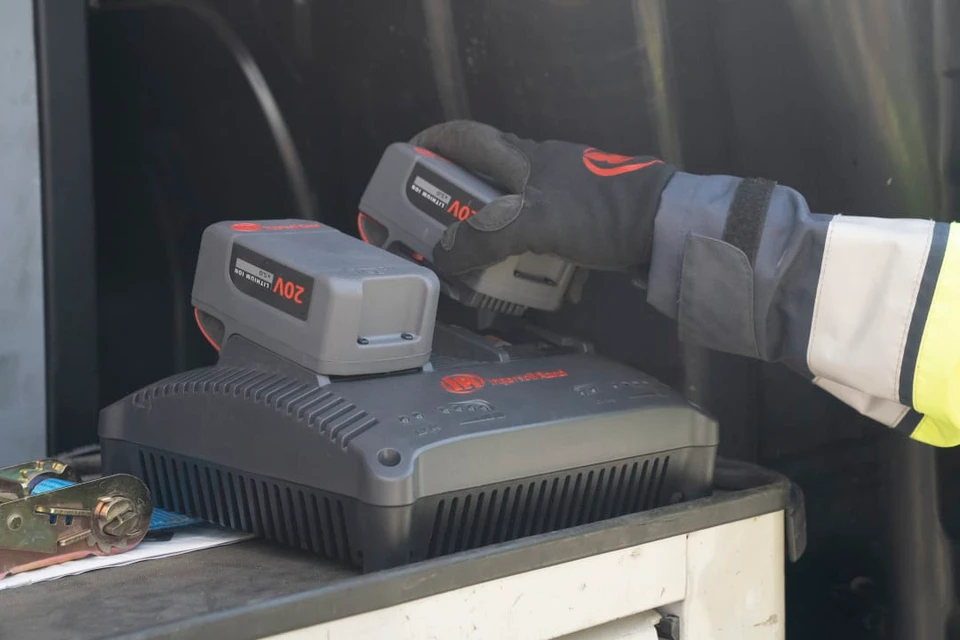

• One dual-bay battery charger.

Applications:

• Class 8 truck wheel installation and removal.
• Commercial bus and fleet tire maintenance.
• Roadside truck wheel service and repairs.
• Heavy vehicle maintenance workshops.
• Commercial transportation equipment servicing.

FAQs:

• Q: What is the maximum torque of the W9691TL?
  A: It delivers 3,000 ft-lbs of nut-busting torque, 2,200 ft-lbs of maximum reverse torque, and 550 ft-lbs of maximum forward torque.
• Q: How does the torque-limiting feature work?
  A: Snug and MID modes automatically stop forward tightening near their respective 450 and 550 ft-lbs settings.
• Q: What is included in the W9691TL kit?
  A: The four-battery kit includes the impact wrench, four BL2022 batteries, and a dual-bay charger.
• Q: Can this wrench fully torque truck wheel nuts?
  A: Final wheel nut torque must be verified using a calibrated torque wrench according to the vehicle manufacturer's specifications.
• Q: Does this impact wrench require an air compressor?
  A: No. It operates using two 20V IQV20 lithium-ion batteries.
