Ingersoll Rand Air Impact Wrench Kit | 131K-LA | 600 (ft-lbs) Torque | 1/2" Square Drive

For automotive repairs, fleet maintenance, and everyday workshop fastening, the Ingersoll Rand 131K-LA Air Impact Wrench Kit combines reliable pneumatic power with a convenient socket and storage package. This 1/2" square drive impact wrench delivers up to 600 ft-lbs of maximum breakaway torque (loosening force for stubborn fasteners), making it suitable for tire service, suspension repairs, and general mechanical maintenance. Its twin-hammer clutch mechanism uses two balanced hammers to deliver consistent impacts while reducing harsh vibration. A steel front hammer case protects the impact mechanism, while the lightweight composite rear housing makes the wrench practical for repeated shop use.

With a working torque range of 25–350 ft-lbs and 8,000 RPM free speed, the 131K-LA supports efficient tightening and removal of common automotive and equipment fasteners. The multi-position forward/reverse throttle configuration provides adjustable power control, helping technicians match tool output to the task. Operating at 90 PSI with an average air consumption of 4.2 CFM, the wrench works with an appropriately sized compressed-air system. Weighing 5.8 lbs and measuring 7.3" long, it offers manageable handling for professional service work. The kit includes four deep impact sockets and a blow-molded carrying case for convenient organization and transport.

Type: Pneumatic Impact Wrench Kit | Brand: Ingersoll Rand | Model: 131K-LA | Drive Size: 1/2" | Drive Type: Square with Friction Ring | Impact Mechanism: Twin-Hammer Clutch | Maximum Breakaway Torque: 600 ft-lbs (813 Nm) | Working Torque Range: 25–350 ft-lbs | Free Speed: 8,000 RPM | Blows Per Minute: 1,150 BPM | Average Air Consumption: 4.2 CFM | Air Consumption at Full Load: 22 CFM | Operating Pressure: 90 PSI (6.2 bar) | Air Inlet: 1/4" NPT | Minimum Hose Size: 3/8" | Length: 7.3" | Tool Weight: 5.8 lbs | Kit: Four Deep Impact Sockets and Carrying Case

Features:

• Delivers 600 ft-lbs of breakaway torque for stubborn fastener removal.
• 1/2" square drive with friction ring holds compatible impact sockets.
• Twin-hammer clutch provides balanced, consistent impacts.
• Steel hammer case protects internal impact components.
• Composite rear housing reduces weight and resists chemicals.
• Adjustable forward/reverse throttle provides fastening control.
• 8,000 RPM free speed supports fast bolt removal and installation.

Kit Includes:

• One Ingersoll Rand 1/2" air impact wrench.
• Four deep impact sockets: 11/16", 3/4", 13/16", and 7/8".

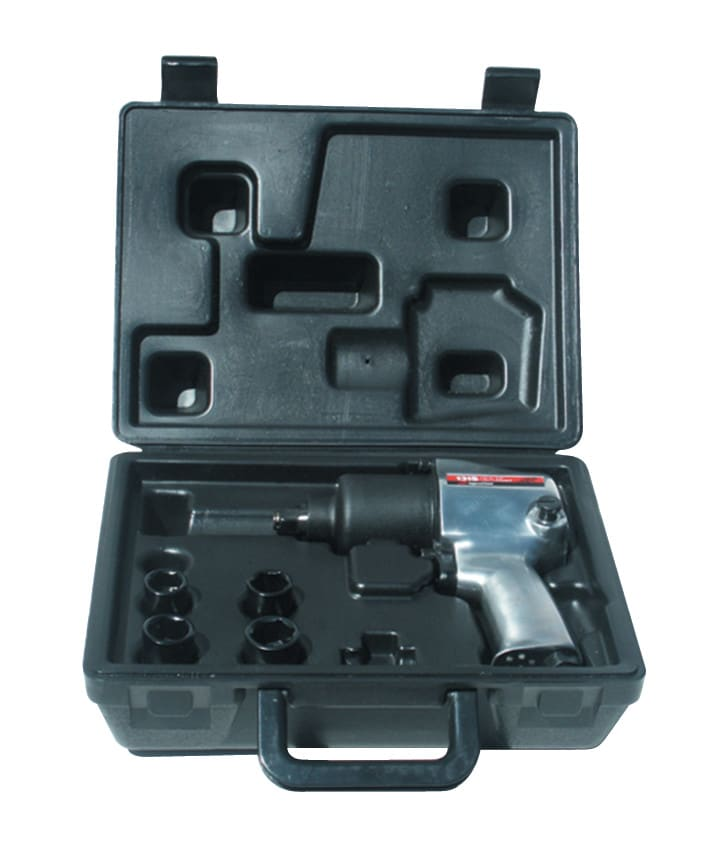

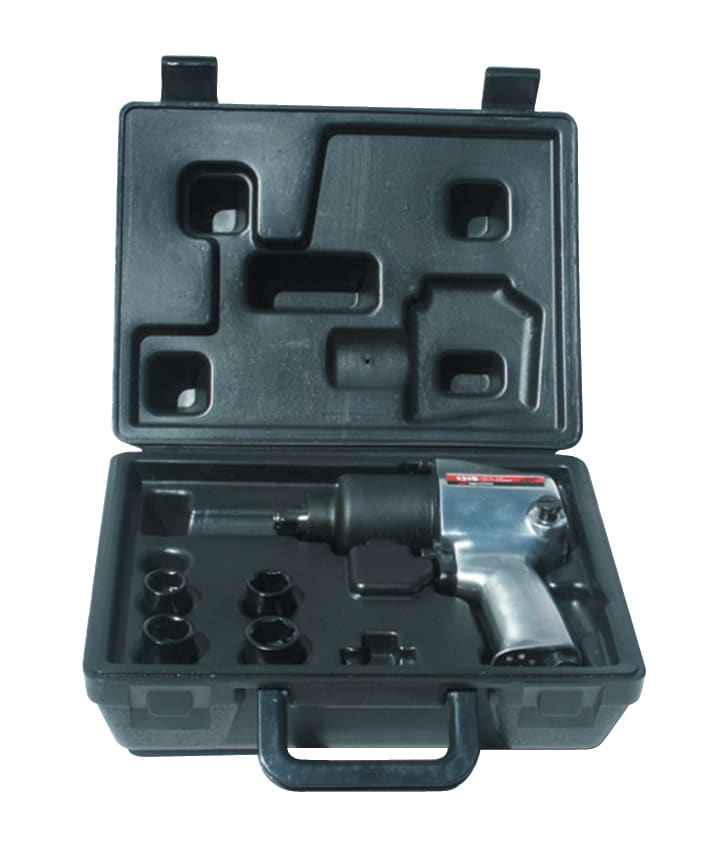

• One blow-molded carrying case.

Applications:

• Automotive tire and wheel maintenance.
• Brake and suspension repairs.
• Commercial vehicle and fleet servicing.
• Agricultural equipment maintenance.
• Industrial machinery assembly and repair.

FAQs:

• Q: What is the maximum torque of the 131K-LA?
  A: It delivers 600 ft-lbs of breakaway torque, with a working range of 25–350 ft-lbs.
• Q: What comes with the 131K-LA kit?
  A: The kit includes the impact wrench, four deep impact sockets, and a carrying case.
• Q: What air supply does this wrench require?
  A: It operates at 90 PSI, consuming 4.2 CFM on average and 22 CFM at full load.
• Q: What type of sockets does it accept?
  A: It accepts compatible 1/2" square-drive impact sockets with friction ring retention.
• Q: Can this kit be used for automotive repairs?
  A: Yes. It supports tire service, brake repairs, suspension work, and general vehicle maintenance.
