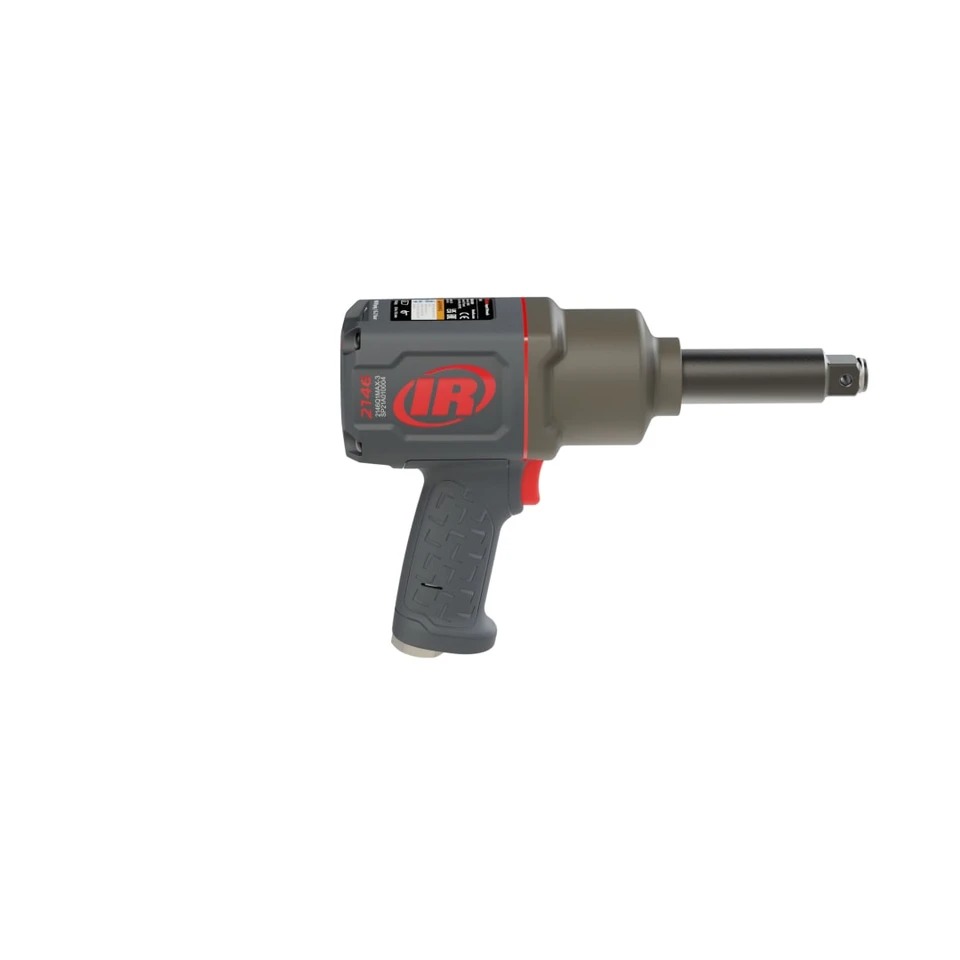

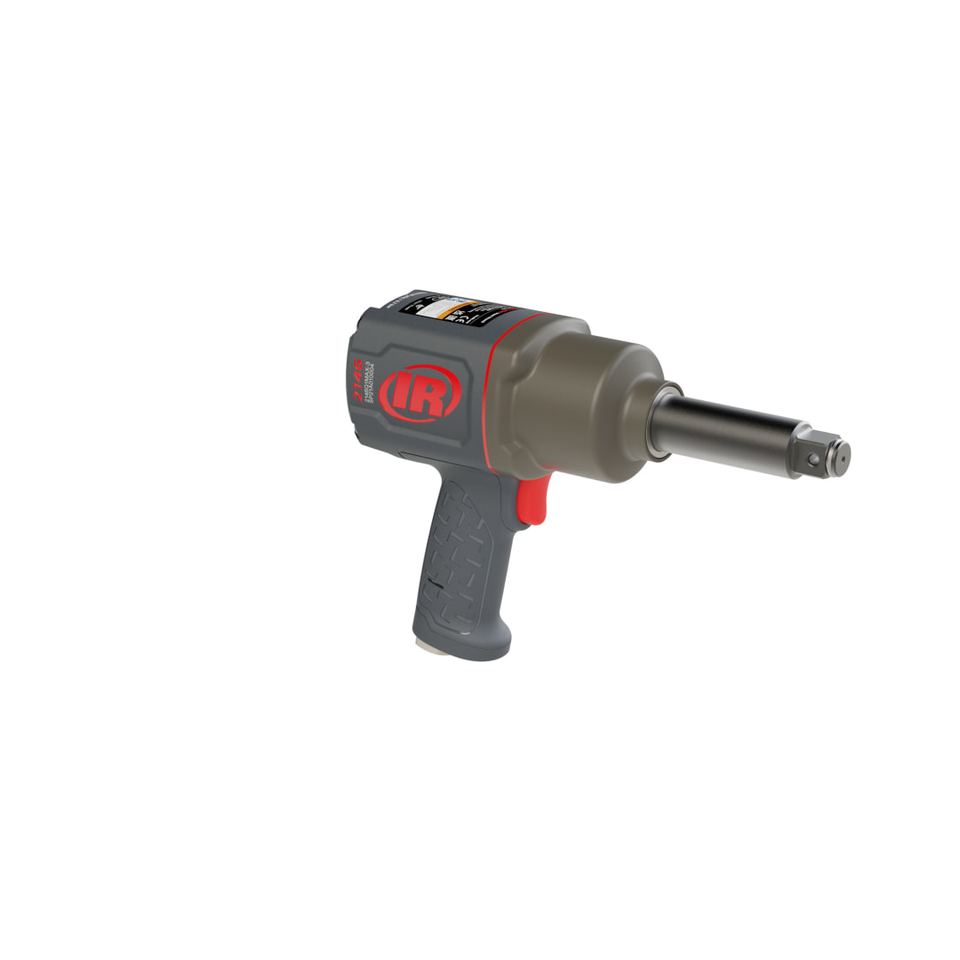

Ingersoll Rand Air Impact Wrench | 2146Q1MAX-3 | 2000 (ft-lbs) Torque | 3/4" Square Drive

For technicians working around recessed wheel fasteners, machinery housings, and hard-to-reach mechanical connections, the Ingersoll Rand 2146Q1MAX-3 Air Impact Wrench delivers powerful fastening performance with improved access. Equipped with a 3/4" square drive and 3" extended anvil, this pneumatic impact wrench provides additional reach without the length of a six-inch extended-anvil model. Its 2,000 ft-lbs of nut-busting torque helps break loose stubborn fasteners, while 1,450 ft-lbs of maximum reverse torque and 1,300 ft-lbs of maximum forward torque support demanding removal and fastening operations. The cold-forged twin-hammer impact mechanism (two hammers delivering repeated rotational impacts) transfers power to large threaded connections during vehicle service, heavy equipment repair, and industrial maintenance.

The 2146Q1MAX-3 is part of Ingersoll Rand's 2146MAX Series and features an integrated pressure gauge to help maintain the recommended 90 PSI operating pressure. Its 5,500 RPM free speed and 1,075 blows per minute support efficient bolt removal, while Quiet Technology reduces operating noise. The steel hammer case, anodized end plate, and composite housing help protect the tool during regular workshop use. Weighing 8.8 lbs and measuring 11.5 inches in overall length, this pistol-grip wrench offers a middle-ground option between standard and six-inch extended-anvil configurations, making it useful for fleet workshops, equipment service teams, and industrial maintenance departments.

Type: Pneumatic Impact Wrench | Brand: Ingersoll Rand | Model: 2146Q1MAX-3 | Series: 2146MAX Series | Drive Size: 3/4" | Drive Type: Square Drive | Anvil: 3" Extended | Retainer Type: Ring/Thru-Hole | Configuration: Pistol Grip | Nut-Busting Torque: 2,000 ft-lbs (2,700 Nm) | Maximum Reverse Torque: 1,450 ft-lbs (1,970 Nm) | Maximum Forward Torque: 1,300 ft-lbs (1,700 Nm) | Free Speed: 5,500 RPM | Blows Per Minute: 1,075 | Impact Mechanism: Cold-Forged Twin Hammer | Free-Speed Sound Pressure: 88.8 dB(A) | Impacting Sound Pressure: 94.3 dB(A) | Weight: 8.8 lbs (4.0 kg) | Overall Length: 11.5" (292 mm) | Air Inlet: 3/8" NPTF | Minimum Hose Size: 1/2" | Average Air Consumption: 14 CFM | Air Consumption at Load: 36 CFM | Recommended Operating Pressure: 90 PSI

Features:

• 2,000 ft-lbs of nut-busting torque provides substantial breakaway force for stubborn bolts on commercial vehicles and industrial equipment.
• 3-inch extended anvil improves access to recessed fasteners while maintaining a shorter overall length than the six-inch extended-anvil configuration.
• 3/4-inch square drive with ring/thru-hole retainer supports secure attachment of compatible impact sockets.
• Cold-forged twin-hammer impact mechanism and 6-vane motor deliver powerful rotational impacts for demanding fastening operations.
• Built-in pressure gauge helps operators monitor air pressure and maintain recommended operating conditions for consistent performance.
• Quiet Technology reduces tool noise without sacrificing power, while the patented one-hand forward/reverse control and feather-touch trigger provide responsive operation.
• Steel hammer case and anodized end plate help withstand everyday workshop impacts and wear.
• Innovative power control and accessible grease fitting support convenient operation and routine tool maintenance.

Applications:

• Heavy truck and fleet maintenance: reaching recessed wheel fasteners, suspension bolts, and other mechanical connections on commercial vehicles.
• Construction equipment repair: removing stubborn bolts from heavy machinery, agricultural equipment, and recessed service assemblies.
• Industrial maintenance and MRO: servicing threaded connections on production equipment, mechanical housings, and plant machinery.
• Rail and transportation service: performing fastening and removal tasks where additional socket reach improves access to equipment components.
• Shipyard and mechanical workshops: loosening large fasteners on suitable machinery assemblies during scheduled repairs and component replacement.

FAQs:

• Q: What is the maximum torque of the 2146Q1MAX-3?
  A: It delivers 2,000 ft-lbs of nut-busting torque and 1,450 ft-lbs of maximum reverse torque.
• Q: What is the benefit of the 3-inch extended anvil?
  A: It provides extra reach for recessed fasteners without the additional length of a six-inch anvil.
• Q: What type of socket connection does it use?
  A: It uses a 3/4" square drive with a ring/thru-hole retainer.
• Q: What are its air requirements?
  A: It operates at 90 PSI and consumes 14 CFM on average and 36 CFM under load.
