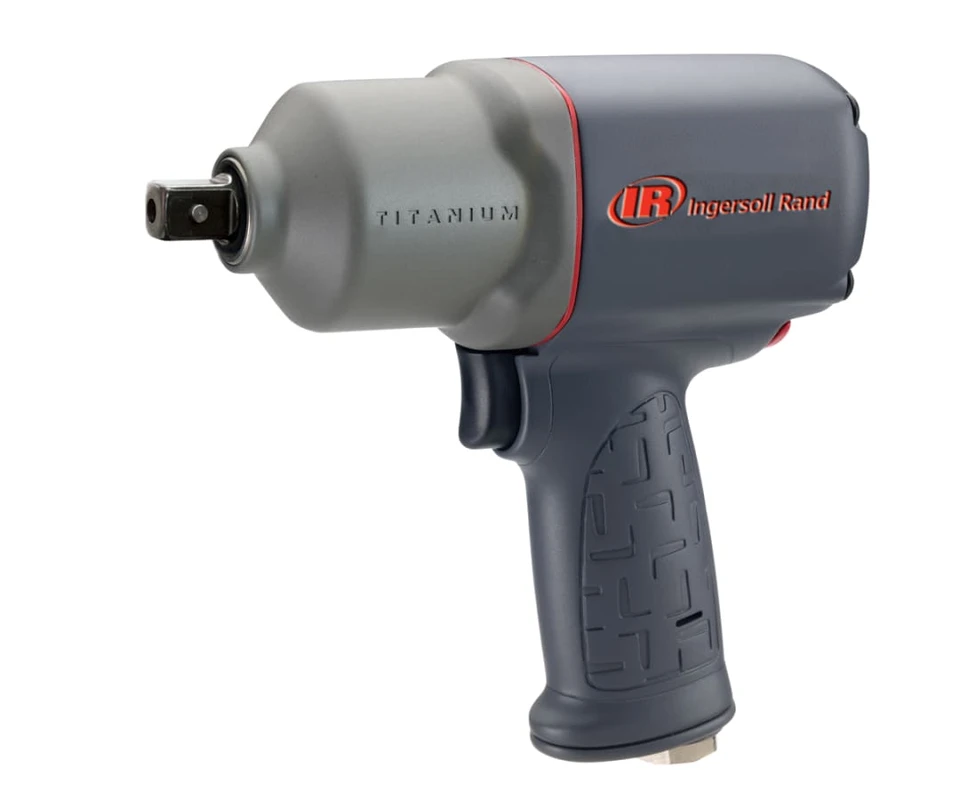

Ingersoll Rand Air Impact Wrench | 2135PTIMAX-A | 1100 (ft-lbs) Torque | 1/2" Square Drive

For automotive repairs, fleet maintenance, and industrial fastening work, the Ingersoll Rand 2135PTiMAX-A Air Impact Wrench delivers powerful fastening and removal performance in a lightweight, easy-to-handle design. Featuring a 1/2" square drive with pin retainer, this pneumatic impact wrench provides up to 1,100 ft-lbs of nut-busting torque (the force used to loosen stubborn or seized fasteners), making it suitable for suspension repairs, equipment maintenance, and general mechanical assembly. Its twin-hammer impact mechanism uses two rotating hammers to deliver balanced impacts, while the titanium hammer case protects internal components against repeated impacts and demanding workshop conditions.

With a maximum reverse torque of 780 ft-lbs, 550 ft-lbs of forward fastening torque, and 11,000 RPM free speed, the 2135PTiMAX-A supports efficient bolt removal and fastening. The four-position power regulator allows users to adjust power output for different tasks, while the pin detent retainer helps prevent accidental socket release during operation. Its composite housing keeps tool weight at just 3.95 lbs, reducing the burden of repetitive fastening work. Operating at 90 PSI with an average air consumption of 5 CFM, this wrench combines strong torque output with manageable compressed-air requirements for properly equipped workshops.

Type: Pneumatic Impact Wrench | Model: 2135PTiMAX-A | Drive Size: 1/2" | Drive Type: Square with Pin Retainer | Configuration: Pistol Grip | Impact Mechanism: Twin Hammer | Nut-Busting Torque: 1,100 ft-lbs (1,490 Nm) | Max Reverse Torque: 780 ft-lbs (1,057 Nm) | Forward Torque: 550 ft-lbs (746 Nm) | Free Speed: 11,000 RPM | Blows Per Minute: 1,250 BPM | Average Air Consumption: 5 CFM | Operating Pressure: 90 PSI (6.2 bar) | Air Inlet: 1/4" NPT | Minimum Hose Size: 3/8" | Length: 7.5" | Weight: 3.95 lbs

Features:

• Delivers 1,100 ft-lbs of nut-busting torque for stubborn fastener removal.
• 1/2" square drive with pin detent provides secure socket retention.
• Twin-hammer mechanism delivers balanced, powerful impacts.
• Titanium hammer case protects against drops and impact damage.
• Lightweight composite housing reduces tool weight to 3.95 lbs.
• Four-position power regulator allows adjustable fastening control.
• 11,000 RPM free speed supports fast bolt removal and installation.

Applications:

• Automotive suspension and undercarriage repairs.
• Truck and fleet maintenance operations.
• Industrial machinery assembly and servicing.
• Workshop bolt tightening and removal.
• Facility maintenance and equipment repairs.

FAQs:

• Q: What is the maximum torque of the 2135PTiMAX-A?
  A: It delivers 1,100 ft-lbs of nut-busting torque and 780 ft-lbs of maximum reverse torque.
• Q: What air pressure does this impact wrench require?
  A: It operates at 90 PSI with an average air consumption of 5 CFM.
• Q: What sockets fit the 2135PTiMAX-A?
  A: It accepts compatible 1/2" square-drive impact sockets with pin detent retention.
• Q: Does this wrench have adjustable power settings?
  A: Yes. Its four-position power regulator allows users to adjust output.
• Q: Is this wrench suitable for automotive repair?
  A: Yes. It is suitable for suspension repairs, vehicle maintenance, and general fastening tasks.
