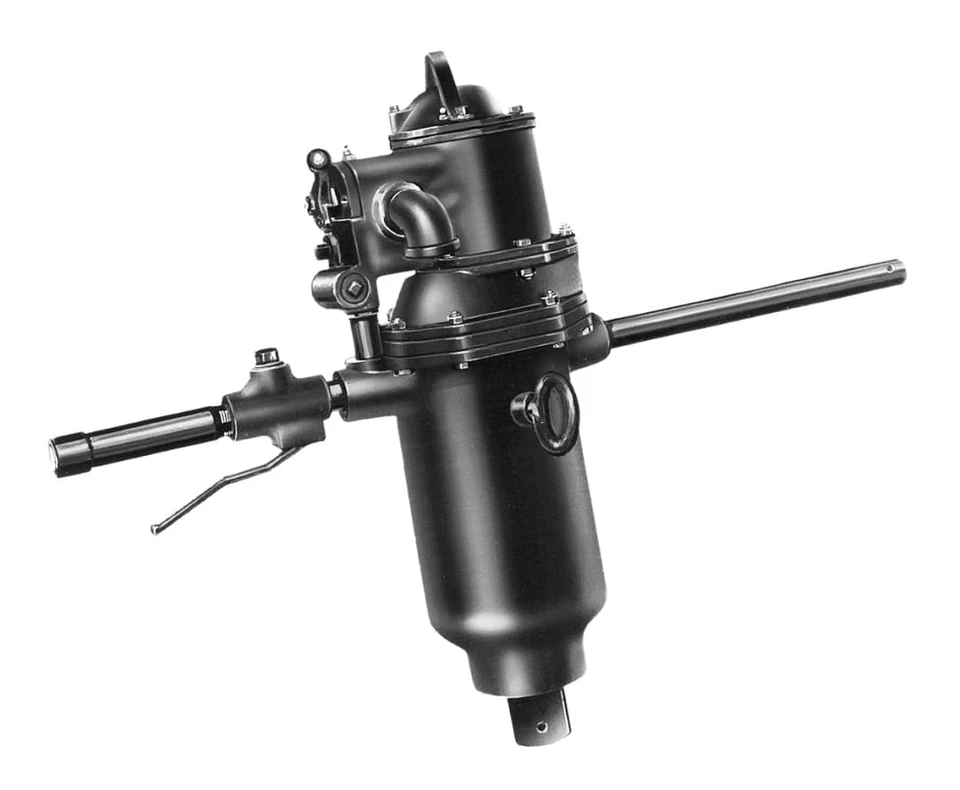

Ingersoll Rand 2-Super-Duty Air Impact Wrench | 588A1 | 50,000 (ft-lbs) Torque | 2-1/2" Square Drive

When removing or tightening exceptionally large fasteners on mining machinery, steel mill equipment, and heavy industrial installations, the Ingersoll Rand 588A1 Super-Duty Air Impact Wrench delivers the torque capacity required for high-load bolting operations. Part of the 5000 Series, this pneumatic impact wrench produces up to 50,000 ft-lbs of maximum reverse torque for loosening highly resistant fasteners, with a 12,000–25,000 ft-lbs recommended working torque range for controlled selection of heavy fastening applications. Its 2-1/2" square drive features a thru-hole socket retainer for securing compatible large-format impact sockets. The T-handle configuration provides multiple gripping positions, while lever throttle actuation allows the operating team to control tool engagement during demanding bolting tasks.

Operating at 355 RPM free speed and delivering 550 impacts per minute, the 588A1 combines relatively low rotational speed with exceptionally high torque output for large threaded connections. Its precision ball and cam impact mechanism transfers repeated rotational impacts to the fastener, while the cast iron hammer case and bronze end-plate provide resistance to wear and corrosion in challenging environments. A built-in lubricator supports lubrication of internal components, and the multi-vane air motor provides smooth, consistent operation. With a 1" NPT air inlet and an air consumption rating of 155 CFM at load, this wrench requires a properly sized industrial compressed-air supply. At 215 lbs, the tool is intended for supported operation by a minimum of two people, as specified by Ingersoll Rand.

Type: Pneumatic Impact Wrench | Brand: Ingersoll Rand | Model: 588A1 | Series: 5000 Super-Duty | Configuration: T-Handle | Drive Size: 2-1/2" | Drive Type: Square, Thru-Hole | Actuation: Lever Throttle | Impact Mechanism: Precision Ball and Cam | Recommended Torque Range: 12,000–25,000 ft-lbs (16,270–33,900 Nm) | Max Reverse Torque: 50,000 ft-lbs (67,800 Nm) | Free Speed: 355 RPM | Impacts Per Minute: 550 | Air Consumption at Load: 155 CFM | Air Inlet: 1" NPT | Minimum Hose Size: 1" | Operating Pressure: 90 PSI (6.2 bar) | Length: 26.63" (676 mm) | Weight: 215 lbs (97.5 kg) | Sound Pressure: 110 dB(A) | Sound Power: 121 dB(A)

Features:

• Delivers up to 50,000 ft-lbs of maximum reverse torque for large, stubborn fasteners.
• 2-1/2" square drive with thru-hole socket retention for secure socket attachment.
• Precision ball and cam impact mechanism delivers powerful, repeated impacts.
• Cast iron hammer case and bronze end-plate resist wear and corrosion.
• Multi-vane air motor provides smooth, consistent operation.
• Built-in lubricator supports internal component lubrication.
• T-handle and lever throttle provide controlled operation.
• Supports horizontal and vertical suspension for easier positioning.

Applications:

• Mining equipment maintenance and large fastener removal.
• Steel mill machinery installation and repair.
• Shipyard and marine equipment bolting.
• Refinery and chemical plant machinery maintenance.
• Heavy industrial construction and equipment assembly.

FAQs:

• Q: What is the maximum torque of the 588A1?
  A: It delivers up to 50,000 ft-lbs of maximum reverse torque, with a recommended working range of 12,000–25,000 ft-lbs.
• Q: What air supply does this tool require?
  A: It operates at 90 PSI and consumes 155 CFM at load. A properly sized industrial air system is required.
• Q: What socket size fits the 588A1?
  A: It accepts compatible 2-1/2" square-drive impact sockets with thru-hole retention.
• Q: Can one person operate this impact wrench?
  A: No. Ingersoll Rand specifies a minimum of two operators.
• Q: Is the 588A1 suitable for automotive repairs?
  A: No. It is intended for large industrial fasteners and heavy machinery applications.
