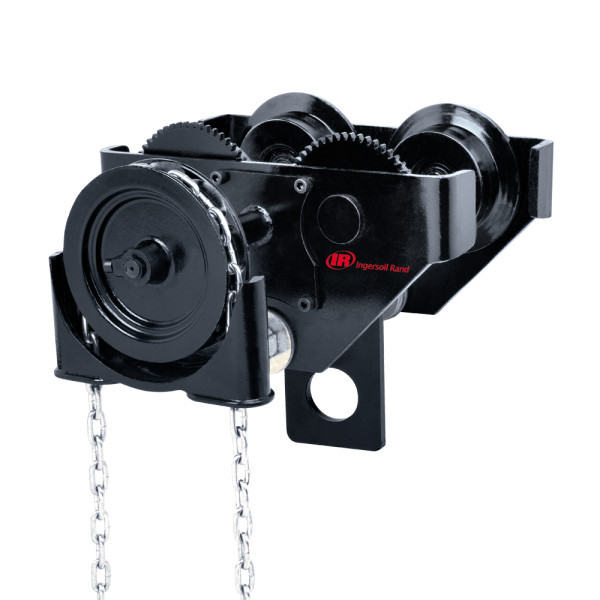

Ingersoll Rand GT200-12-10 is a 20 metric ton (44,000 lb capacity) GT Series Hand-Geared Hook-On Trolley built for controlled movement of very heavy suspended loads along compatible overhead beams. The 20-ton GT configuration uses additional gearing that allows operation by one hand chain, providing controlled trolley travel without requiring separate push operation. It accommodates a 7–13 in. flange adjustment, requires a 12 in. minimum beam height, and has a 138 in. minimum curve radius.
The GT200-12-10 uses cast iron wheels with a Universal tread for either flat or tapered beams. Sealed, Lube-for-Life ball bearings support smoother rolling with less effort and maintenance, while cold-formed steel side plates incorporate rail sweeps and drop stops for strength and even load distribution. Rivet-locked wheel axles help prevent loosening during operation. This model has a 10 ft hand chain drop and a manufacturer-listed 540 lb weight. The GT Series uses a 5:1 design factor and is rated for use with both manual and powered hoists.
Type: Hand-Geared Hook-On Trolley | Series: GT Series | Model: GT200-12-10 | Capacity: 20 Metric Tons (44,000 lb) | Wheel Type: Cast Iron | Flange Adjustment: 7–13 in. | Minimum Beam Height: 12 in. | Minimum Curve Radius: 138 in. | Hand Chain Drop: 10 ft | Design Factor: 5:1 | Weight: 540 lb
Features:
- The hand-geared configuration provides controlled trolley travel for positioning very heavy suspended loads along compatible overhead beams.
- Additional gearing in the 20-ton trolley allows operation by one hand chain.
- The 5:1 design factor allows use with both manual and powered hoists.
- Cold-formed steel side plates provide strength, durability, and even load distribution.
- Rail sweeps and drop stops are incorporated into the side-plate construction.
- Rivet-locked wheel axles help prevent the axles from coming loose during operation.
- Cast iron wheels use a Universal tread suitable for either flat or tapered beams.
- Sealed, Lube-for-Life ball bearings provide smoother rolling with less effort and maintenance.
- Wide hanger shaft assemblies allow the trolley to fit compatible I-beams, H-beams, and patented track beams within the specified flange range.
- The trolley is painted black for universal coordination with compatible hoists.
Made in USA:
Applications:
- Heavy industrial material handling — positioning compatible loads up to 44,000 lb along properly sized overhead beam systems.
- Heavy equipment installation — moving and positioning large machinery, assemblies, and components where the beam structure meets the trolley requirements.
- Industrial maintenance and MRO — providing controlled trolley travel for very heavy suspended equipment during service and maintenance work.
- Manufacturing and fabrication — moving large assemblies and fabricated components along compatible overhead beams.
- Heavy lifting systems — pairing the trolley with compatible manual or powered hoists where the 20 metric ton capacity and 7–13 in. flange range are appropriate.
FAQs:
- Q: What is the capacity of the GT200-12-10?
A: The GT200-12-10 is rated for 20 metric tons, equivalent to 44,000 lb. - Q: What does the “10” in GT200-12-10 indicate?
A: The final number identifies the hand chain drop for the GT Series. This configuration has a 10 ft hand chain drop. - Q: What beam flange width can the GT200-12-10 accommodate?
A: The specified flange adjustment is 7–13 in. - Q: What is the minimum beam height for this trolley?
A: The minimum specified beam height is 12 in. - Q: What is the minimum curve radius?
A: The specified minimum curve radius is 138 in. - Q: What type of wheels does the GT200-12-10 use?
A: The standard trolley uses cast iron wheels with a Universal tread for either flat or tapered beams. - Q: Can the GT200-12-10 be used with a powered hoist?
A: Yes. The GT Series is rated for use with both manual and powered hoists and uses a 5:1 design factor.
| SKU | CAPACITY | FLANGE ADJUSTMENT IN |
MIN. BEAM HEIGHT IN |
MIN. CURVE RADIUS IN |
WEIGHT LB |
WIDE FLANGE KIT NO. (ORDER SEPARATE) |
FLANGE ADJUSTMENT IN |
WEIGHT LB |
|
|---|---|---|---|---|---|---|---|---|---|
| LB | METRIC TONS | ||||||||
| STANDARD SERIES | |||||||||
| PT005-8 | 1,100 | 0.50 | 2.6 - 8 | 4 | 36 | 19.7 | PT005-WFK | 8 - 13 | 5.5 |
| PT010-8 | 2,200 | 1 | 3 - 8 | 5 | 36 | 30.7 | PT010-WFK | 8 - 13 | 9.5 |
| PT020-8 | 4,400 | 2 | 3.3 - 8 | 6 | 48 | 60.5 | PT020-WFK | 8 - 13 | 10 |
| PT030-8 | 6,600 | 3 | 3.9 - 8 | 7 | 42 | 73.2 | PT030-WFK | 8 - 13 | 16.3 |
| PT050-8 | 11,000 | 5 | 4.6 - 8 | 8 | 60 | 110.3 | PT050-WFK | 8 - 13 | 24.8 |
| PT100-12 | 22,000 | 10 | 7 - 13 | 10 | 83 | 205 | NA | NA | NA |
| GT010-8-10 | 2,200 | 1 | 3 - 8 | 5 | 36 | 43.7 | PT010-WFK | 8 - 13 | 9.5 |
| GT020-8-10 | 4,400 | 2 | 3.3 - 8 | 6 | 48 | 73.5 | PT020-WFK | 8 - 13 | 10 |
| GT030-8-10 | 6,600 | 3 | 3.9 - 8 | 7 | 42 | 86.2 | PT030-WFK | 8 - 13 | 16.3 |
| GT-050-8-10 | 11,000 | 5 | 4.6 - 8 | 8 | 60 | 123.3 | PT050-WFK | 8 - 13 | 24.8 |
| GT100-12-10 | 22,000 | 10 | 7 - 13 | 10 | 83 | 227 | NA | NA | NA |
| GT200-12 | 44,000 | 20 | 7 - 13 | 12 | 138 | 540 | NA | NA | NA |
Looking for more information about Ingersoll Rand Trolley? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Trolleys for your assembly application, please email info@intlairtool.com or call (800) 608-5210
