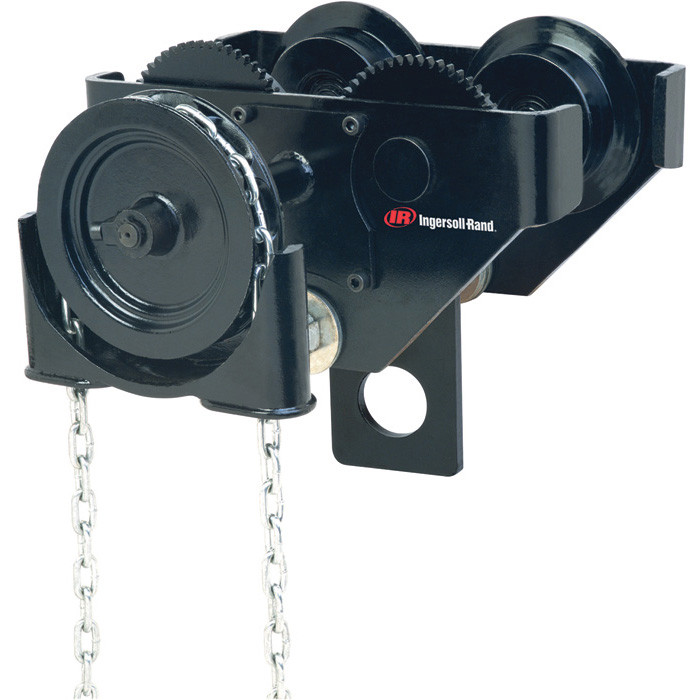

Ingersoll Rand GT030-8-20 Hand-Geared Hook-On Trolley | GT Series | 3 Metric Ton Capacity

Ingersoll Rand GT030-8-20 is a 3 metric ton (6,600 lb capacity) GT Series Hand-Geared Hook-On Trolley designed for controlled movement and positioning of suspended loads along compatible overhead beams. The hand-geared configuration allows the operator to move the trolley using the hand chain. This model accommodates a 3.9–8 in. flange adjustment, requires a 7 in. minimum beam height, and has a 42 in. minimum curve radius. The manufacturer specifies the GT Series for use with both manual and powered hoists.

The GT030-8-20 uses cast iron wheels with a Universal tread for either flat or tapered beams. Sealed, “Lube-for-Life” ball bearings provide smoother rolling with less effort and maintenance, while cold-formed steel side plates incorporate rail sweeps and drop stops for strength and even load distribution. The wheel axles are rivet-locked in place to resist loosening during operation. This configuration has a 20 ft hand chain drop. The GT030 trolley has a 5:1 design factor and is rated for use with both manual and powered hoists.

Type: Hand-Geared Hook-On Trolley | Series: GT Series | Model: GT030-8-20 | Capacity: 3 Metric Tons (6,600 lb) | Wheel Type: Cast Iron | Flange Adjustment: 3.9–8 in. | Minimum Beam Height: 7 in. | Minimum Curve Radius: 42 in. | Hand Chain Drop: 20 ft | Design Factor: 5:1 | Weight: 86.2 lb

Features:

• The hand-geared configuration provides controlled trolley travel for positioning suspended loads along compatible overhead beams.
• The 5:1 design factor allows use with both manual and powered hoists.
• Cold-formed steel side plates provide strength, durability, and even load distribution.
• Rail sweeps and drop stops are incorporated into the side-plate construction.
• Rivet-locked wheel axles help prevent the axles from loosening during operation.
• Cast iron wheels use a Universal tread suitable for either flat or tapered beams.
• Sealed, Lube-for-Life ball bearings provide smoother rolling with less effort and maintenance.
• Wide hanger shaft assemblies allow the standard trolley to fit almost any compatible I-beam, H-beam, or patented track beam within the specified configuration.
• Extension shaft kits are available separately for applications requiring wider flange adjustment.
• The trolley is painted black for coordination with compatible hoists.

Made in USA:

Applications:

• Industrial material handling — positioning compatible loads up to 6,600 lb along suitable overhead beam systems.
• Maintenance and MRO — controlling trolley movement while servicing and repositioning suspended equipment and components.
• Manufacturing and fabrication — moving assemblies, machinery components, and materials along compatible overhead beams.
• Workshop lifting systems — providing controlled hand-geared travel where precise manual positioning is required.
• Overhead hoist installations — pairing the trolley with compatible manual or powered hoists where the 3.9–8 in. flange range and 3 metric ton capacity are appropriate.

FAQs:

• Q: What is the capacity of the GT030-8-20?
  A: The GT030-8-20 is rated for 3 metric tons, equivalent to 6,600 lb.
• Q: What does the “20” in GT030-8-20 indicate?
  A: The final number identifies the hand chain drop for the GT Series. This configuration has a 20 ft hand chain drop.
• Q: What beam flange width can the GT030-8-20 accommodate?
  A: The specified flange adjustment is 3.9–8 in.
• Q: What type of wheels does the GT030-8-20 use?
  A: The standard configuration uses cast iron wheels with a Universal tread for either flat or tapered beams.
• Q: Can the GT030-8-20 be used with a powered hoist?
  A: Yes. The GT Series is rated for use with both manual and powered hoists and has a 5:1 design factor.
• Q: What is the minimum beam height?
  A: The minimum specified beam height is 7 in.
• Q: What is the minimum curve radius?
  A: The minimum specified curve radius is 42 in.
