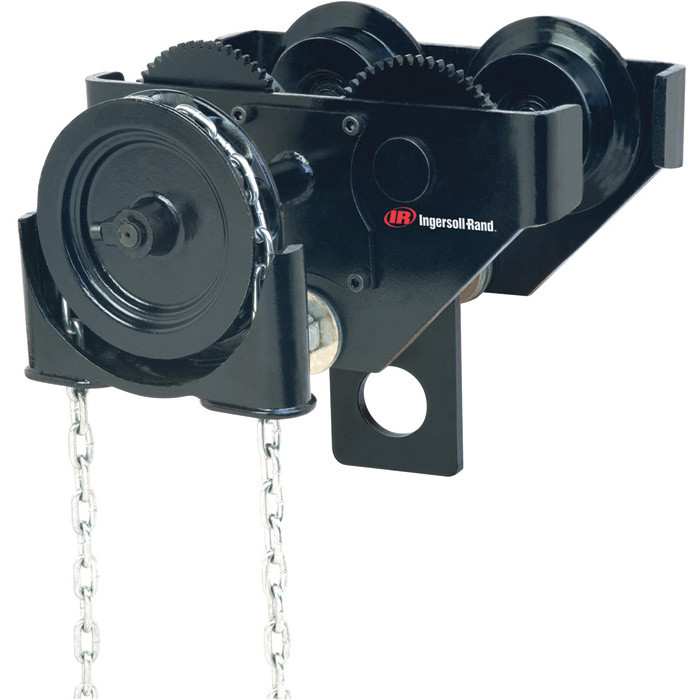

Ingersoll Rand GT030-8-10 Hand-Geared Hook-On Trolley | GT Series | 3 Metric Ton Capacity

Ingersoll Rand GT030-8-10 is a 3 metric ton (6,600 lb capacity) GT Series Hand-Geared Hook-On Trolley designed for controlled movement and positioning of suspended loads along compatible overhead beams. Its hand-geared mechanism allows the operator to move the trolley using the hand chain, providing controlled travel when positioning loads. The trolley accommodates a 3.9–8 in. flange adjustment, requires a 7 in. minimum beam height, and has a 42 in. minimum curve radius.

The GT030-8-10 uses cast iron wheels with a Universal tread suitable for either flat or tapered beams. Sealed, Lube-for-Life ball bearings provide smoother rolling with less effort and maintenance, while cold-formed steel side plates incorporate rail sweeps and drop stops for strength and even load distribution. Rivet-locked wheel axles help prevent loosening during operation. This configuration has a 10 ft hand chain drop and a catalog-listed 86.2 lb weight. The trolley has a 5:1 design factor and is rated for use with both manual and powered hoists.

Type: Hand-Geared Hook-On Trolley | Series: GT Series | Model: GT030-8-10 | Capacity: 3 Metric Tons (6,600 lb) | Wheel Type: Cast Iron | Flange Adjustment: 3.9–8 in. | Minimum Beam Height: 7 in. | Minimum Curve Radius: 42 in. | Hand Chain Drop: 10 ft | Design Factor: 5:1 | Weight: 86.2 lb

Features:

• The hand-geared configuration provides controlled trolley travel for positioning suspended loads along compatible overhead beams.
• The 5:1 design factor allows use with both manual and powered hoists.
• Cold-formed steel side plates provide strength, durability, and even load distribution.
• Rail sweeps and drop stops are incorporated into the side-plate construction.
• Rivet-locked wheel axles help prevent loosening during trolley operation.
• Cast iron wheels use a Universal tread suitable for either flat or tapered beams.
• Sealed, Lube-for-Life ball bearings provide smoother rolling with less effort and maintenance.
• Wide hanger shaft assemblies allow the standard trolley to fit compatible I-beams, H-beams, and patented track beams.
• A separate extension shaft kit is available for compatible applications requiring an 8–13 in. flange adjustment.
• The trolley is painted black for coordination with compatible hoists.

Made in USA:

Applications:

• Industrial material handling — positioning compatible loads up to 6,600 lb along suitable overhead beam systems.
• Maintenance and MRO — controlling trolley movement while servicing and repositioning suspended equipment and components.
• Manufacturing and fabrication — moving assemblies, machinery components, and materials along compatible overhead beams.
• Workshop lifting systems — providing controlled hand-geared travel where precise manual positioning is required.
• Overhead hoist installations — pairing the trolley with compatible manual or powered hoists where the 3.9–8 in. flange range and 3 metric ton capacity are appropriate.

FAQs:

• Q: What is the capacity of the GT030-8-10?
  A: The GT030-8-10 is rated for 3 metric tons, equivalent to 6,600 lb.
• Q: What does the “10” in GT030-8-10 indicate?
  A: The final number identifies the hand chain drop in feet. This configuration has a 10 ft hand chain drop.
• Q: What beam flange width can the GT030-8-10 accommodate?
  A: The specified flange adjustment is 3.9–8 in.
• Q: What type of wheels does the GT030-8-10 use?
  A: The standard trolley uses cast iron wheels with a Universal tread for either flat or tapered beams.
• Q: Can the GT030-8-10 be used with a powered hoist?
  A: Yes. The GT Series has a 5:1 design factor and is rated for use with both manual and powered hoists.
• Q: What is the minimum beam height?
  A: The minimum specified beam height is 7 in.
• Q: What is the minimum curve radius?
  A: The minimum specified curve radius is 42 in.
