Ingersoll Rand GT010-8-22 Hand-Geared Hook-On Trolley | GT Series | 1 Metric Ton Capacity

Ingersoll Rand GT010-8-22 is a 1 metric ton (2,200 lb) capacity GT Series Hand-Geared Hook-On Trolley with a 22 ft hand chain drop. The geared mechanism provides controlled manual trolley travel along a compatible overhead beam, which is useful when positioning suspended loads where precise movement is preferred over manually pushing the trolley. Its 3–8 in. flange adjustment fits compatible beam flanges within that range, and the trolley has a 36 in. minimum curve radius. The manufacturer identifies the GT Series for use with both manual and powered hoists.

The GT010-8-22 uses cast iron wheels with a universal tread for flat or tapered beams and sealed, Lube-for-Life ball bearings for smoother rolling with less maintenance. Cold-formed steel side plates provide strength and load distribution, with rail sweeps and drop stops incorporated into the construction. The trolley has a 5 in. minimum beam height and a published 43.7 lb weight. The PT/GT trolley family uses a 5:1 design factor for use with compatible manual or powered hoists.

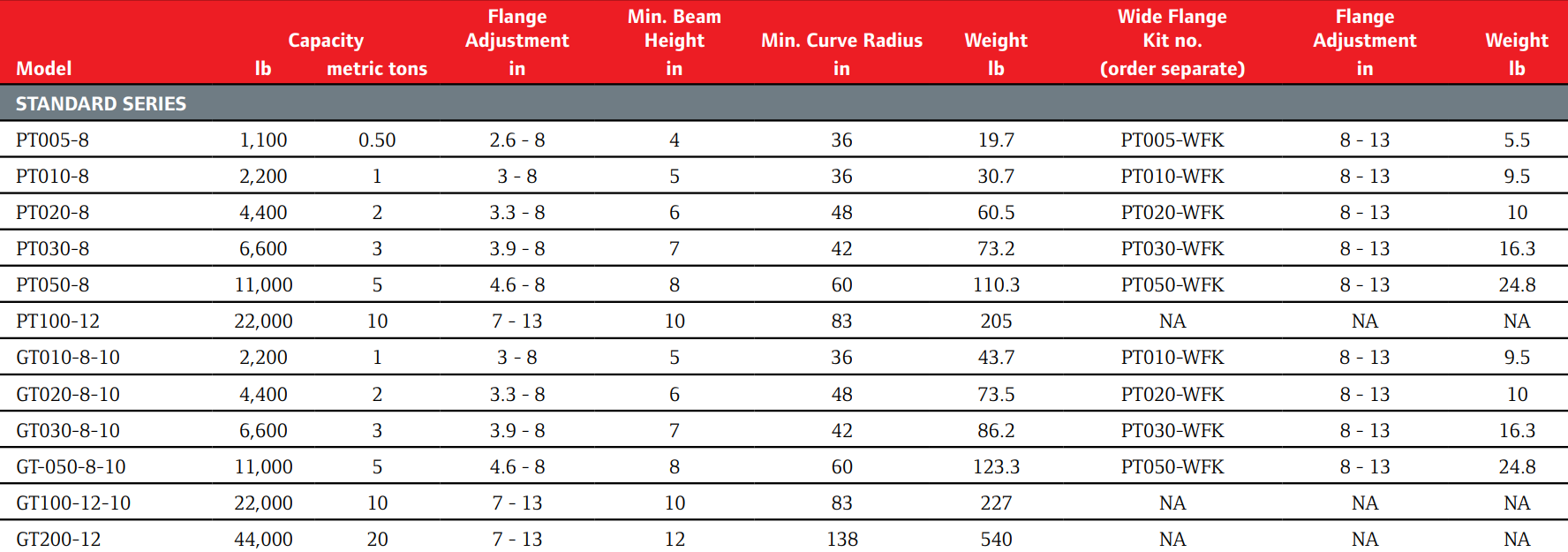

Type: Hand-Geared Hook-On Trolley | Series: GT Series | Model: GT010-8-22 | Capacity: 1 Metric Ton (2,200 lb) | Wheel Type: Cast Iron | Flange Adjustment: 3–8 in. | Minimum Beam Height: 5 in. | Minimum Curve Radius: 36 in. | Hand Chain Drop: 22 ft | Design Factor: 5:1 | Weight: 43.7 lb

Features:

• The hand-geared configuration provides controlled trolley travel for positioning suspended loads along the overhead beam.
• The 5:1 design factor permits use with both manual and powered hoists.
• Cold-formed steel side plates provide strength, durability, and even load distribution.
• Rail sweeps and drop stops are incorporated into the side-plate construction.
• Rivet-locked wheel axles resist loosening during trolley operation.
• Cast iron wheels use a universal tread suitable for flat or tapered beams.
• Sealed, Lube-for-Life ball bearings provide smoother rolling with less effort and maintenance.
• The 3–8 in. flange adjustment accommodates compatible overhead beams within the specified range.
• The GT Series hanger arrangement is designed for compatibility with hoists from different brands.
• The trolley is painted black for coordination with compatible hoists.

Made in USA:

Applications:

• Industrial material handling — positioning compatible loads up to 2,200 lb along suitable overhead beams.
• Maintenance and MRO — moving suspended equipment and components along overhead beams during service and installation work.
• Manufacturing and fabrication — controlled positioning of assemblies and materials with a compatible hoist.
• Workshop lifting systems — providing hand-geared trolley travel where controlled manual positioning is required.
• Overhead hoist installations — pairing the trolley with compatible manual or powered hoists where the 3–8 in. flange range is suitable.

FAQs:

• Q: What is the capacity of the GT010-8-22?
  A: The GT010-8-22 is rated for 1 metric ton, equivalent to 2,200 lb.
• Q: What does the “22” in GT010-8-22 indicate?
  A: For this configuration, the 22 identifies the 22 ft hand chain drop.
• Q: What beam flange width can the GT010-8-22 accommodate?
  A: The trolley has a 3–8 in. flange adjustment range.
• Q: What type of wheels does the GT010-8-22 use?
  A: The standard trolley uses cast iron wheels with a universal tread for flat or tapered beams.
• Q: Can this geared trolley be used with a powered hoist?
  A: Yes. The GT Series is specified for use with both manual and powered hoists.
• Q: What is the minimum curve radius?
  A: The specified minimum curve radius is 36 in.
