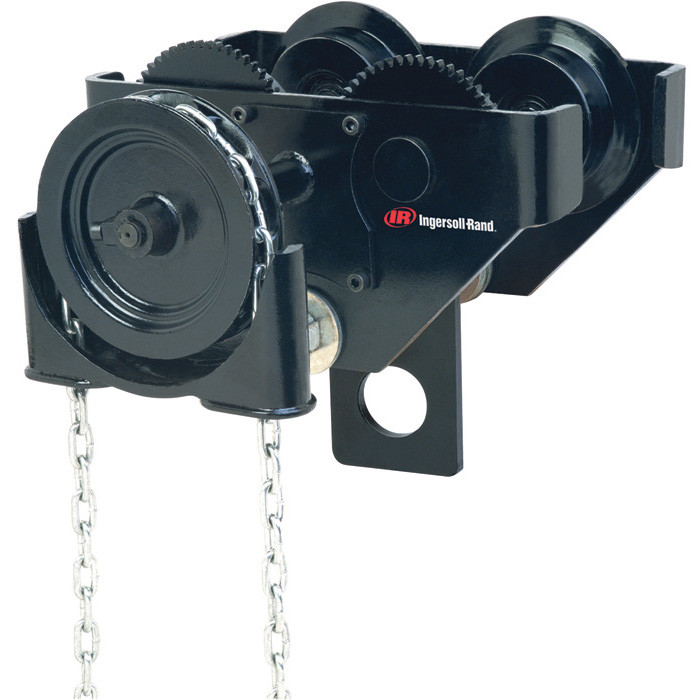

Ingersoll Rand GT010-8-10 Hand-Geared Hook-On Trolley | GT Series | 1 (metric tons) Capacity

Ingersoll Rand GT010-8-10 Hand-Geared Hook-On Trolley provides a 1 metric ton (2,200 lb) capacity for controlled movement of suspended loads along compatible overhead beams. Its hand-geared drive allows the operator to position a load by operating the hand chain rather than pushing the trolley directly. The 3–8 in. flange adjustment accommodates compatible beam widths, while the 36 in. minimum curve radius defines the minimum radius for suitable curved beam travel.

The GT010-8-10 features cast iron wheels with a universal tread that fits either flat or tapered beams, along with sealed, Lube-for-Life ball bearings for smoother rolling with less effort and maintenance. Cold-formed steel side plates incorporate rail sweeps and drop stops for strength and load distribution, while rivet-locked wheel axles resist loosening. The trolley has a 5 in. minimum beam height, a 10 ft hand chain drop, and a manufacturer-listed 43.7 lb weight. Its 5:1 design factor permits use with both manual and powered hoists.

Type: Hand-Geared Hook-On Trolley | Series: GT Series | Model: GT010-8-10 | Capacity: 1 Metric Ton (2,200 lb) | Wheel Type: Cast Iron | Flange Adjustment: 3–8 in. | Minimum Beam Height: 5 in. | Minimum Curve Radius: 36 in. | Hand Chain Drop: 10 ft | Design Factor: 5:1 | Weight: 43.7 lb

Features:

• The 5:1 design factor allows use with both manual and powered hoists.
• The hand-geared configuration provides controlled trolley movement for positioning suspended loads along the beam.
• The side plates, including the rail sweeps and drop stops, are made of cold-formed steel for strength, durability, and even load distribution.
• Wheel axles are rivet-locked in place to resist loosening during operation.
• Cast iron wheels use a Universal tread that fits either flat or tapered beams.
• Sealed, Lube-for-Life ball bearings provide smoother rolling with less effort and maintenance.
• Wide hanger shaft assemblies allow the standard trolley to fit compatible I-beams, H-beams, and patented track beams.
• Shaft extension kits are available separately for compatible standard trolleys requiring an 8–13 in. flange adjustment.
• The trolley is painted black for universal coordination with compatible hoists.

Made in USA:

Applications:

• Industrial material handling — positioning compatible loads up to 2,200 lb along suitable overhead beams.
• Maintenance and MRO — controlling trolley movement while servicing and repositioning suspended equipment and components.
• Manufacturing and fabrication — moving assemblies, machinery components, and materials along compatible overhead beam systems.
• Workshops and maintenance facilities — providing controlled hand-geared travel when precise load positioning is required.
• Overhead hoist installations — pairing the trolley with a compatible manual or powered hoist where the 3–8 in. flange range and 1 metric ton capacity are suitable.

FAQs:

• Q: What is the capacity of the GT010-8-10?
  A: The trolley is rated for 1 metric ton, equivalent to 2,200 lb.
• Q: What does the “10” at the end of GT010-8-10 indicate?
  A: The GT Series model designation uses the final number to identify the hand chain drop in feet. GT010-8-10 therefore has a 10 ft hand chain drop.
• Q: What beam flange width can the GT010-8-10 accommodate?
  A: The standard flange adjustment is 3–8 in.
• Q: What type of wheels does the GT010-8-10 use?
  A: It uses cast iron wheels with a Universal tread that fits either flat or tapered beams.
• Q: Can the GT010-8-10 be used with a powered hoist?
  A: Yes. The 5:1 design factor allows the trolley to be used with both manual and powered hoists.
• Q: What is the minimum curve radius?
  A: The minimum specified curve radius is 36 in.
