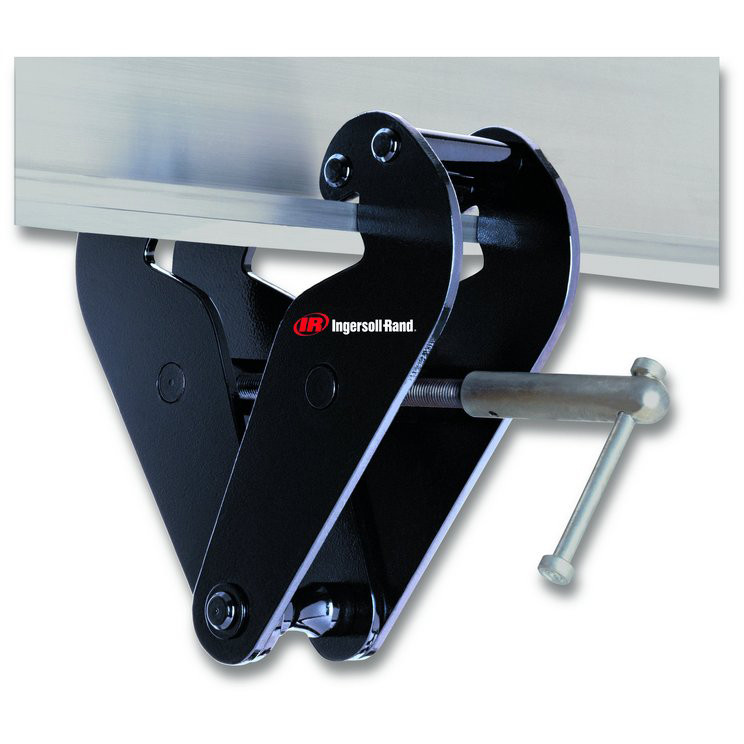

Ingersoll Rand BCT-2 Beam Clamp | BC Series | 2 Ton Capacity

For maintenance teams and rigging crews that need a dependable overhead attachment point without drilling or welding into a beam, the Ingersoll Rand BCT-2 Beam Clamp provides a manually adjustable connection for compatible lifting equipment. Part of the BCT Series, this clamp has a 2 metric ton (4,400 lb / 2,000 kg) rated capacity for appropriate vertical lifting and in-line pulling applications. Its scissor-style clamping mechanism fits suitable flat or tapered beam flanges, allowing technicians to establish a temporary or permanent hoist mounting point. The clamp accommodates hook-mounted manual or powered hoists and load blocks, making it useful for equipment servicing, machinery installation, fabrication shops, and industrial lifting operations.

The BCT-2 accommodates a maximum beam flange width of 8.7 inches (220 mm) and has a net weight of 10.1 lbs (4.6 kg). Its low-headroom arrangement minimizes the space occupied between the supporting beam and the suspended lifting equipment, preserving useful lifting height. Installation is performed by positioning the clamp jaws over the lower beam flange and tightening the hand screw in accordance with the manufacturer's instructions. The jaw geometry applies the load inside the flange edges to help reduce stress concentrations. Ingersoll Rand specifies a minimum 5:1 design factor for the stated vertical lifting applications and identifies the BCT Series as meeting applicable requirements of ASME B30.16 and ASME B30.7. This design factor does not increase the clamp's allowable working load.

Type: Adjustable Beam Clamp | Model: BCT-2 | Brand: Ingersoll Rand | Series: BCT Series | Rated Capacity: 2 Metric Tons (4,400 lbs / 2,000 kg) | Maximum Beam Flange Width: 8.7" (220 mm) | Net Weight: 10.1 lbs (4.6 kg) | Clamp Configuration: Adjustable Scissor-Style | Beam Type: Suitable Flat or Tapered Flanges | Installation: Hand-Operated, No Tools Required | Design Factor: Minimum 5:1 for Vertical Lifting | Applications: Vertical Lifting and In-Line Pulling | Applicable Standards: ASME B30.16 and ASME B30.7

Features:

• Two-metric-ton rated capacity provides a defined overhead attachment point for compatible lifting equipment within the specified working load limit.
• Adjustable scissor-style jaws accommodate suitable flat and tapered beam flanges without requiring permanent beam modifications.
• Hand-operated screw adjustment permits installation and removal without separate installation tools.
• Low-headroom configuration helps preserve lifting clearance beneath overhead support beams.
• Clamp jaws are designed to apply load inside the beam flange edges, helping reduce localized stress at the flange edges.
• Suitable for properly planned temporary or permanent hoist suspension arrangements.
• Designed and verified to achieve a minimum 5:1 design factor for the manufacturer's stated vertical lifting applications.
• Each clamp is serialized and supplied with a manufacturer's test certificate and operating manual to support identification and inspection records.
• Accommodates appropriately rated hook-mounted hoists and load blocks for lifting applications on suitable supporting structures.

NOTE: Older Model BC-2 was superseded by BCT-2

Made in USA:

Applications:

• Industrial machinery maintenance: Establishing a hoist attachment point for removing motors, pumps, gearboxes, and other equipment components within the approved load rating.
• Manufacturing and assembly operations: Supporting compatible lifting equipment above designated workstations and installation areas.
• Mechanical equipment installation: Providing a temporary beam-mounted lifting point for positioning machinery and fabricated assemblies.
• Maintenance workshops: Suspending appropriately rated manual or powered hoists from verified overhead beams.
• Plant shutdowns and equipment repair: Relocating lifting attachment points to support properly planned component removal and replacement work.
• Industrial rigging: Supporting approved vertical lifting or in-line pulling arrangements when the beam, clamp, and connected equipment meet the required loading conditions.

FAQs:

• Q: How much weight can the Ingersoll Rand BCT-2 Beam Clamp support?

  A: The BCT-2 has a rated working capacity of 2 metric tons, equivalent to 2,000 kg or approximately 4,400 lbs. The supporting beam, hoist, rigging, and other load-bearing components must also be rated for the intended lift.

• Q: What beam flange width is compatible with the BCT-2?

  A: Ingersoll Rand specifies a maximum beam flange width of 8.7 inches (220 mm). Compatibility also depends on flange shape, adequate jaw engagement, and the structural capacity of the supporting beam. The manufacturer's published BCT-2 specification does not state a minimum flange width, so suitability should be confirmed before installation.

• Q: Does the BCT-2 require tools, drilling, or welding to install?

  A: No. The clamp is designed for hand installation. Its jaws are positioned over the lower beam flange and secured by tightening the adjustment screw according to the operating manual. The clamp and connected equipment must be inspected before a load is applied.

• Q: What is the difference between the BCT-2 and BCT-1?

  A: The BCT-2 is rated for 2 metric tons and weighs 10.1 lbs, while the BCT-1 is rated for 1 metric ton and weighs 8.4 lbs. Both have a maximum specified beam width of 8.7 inches. Select the correct model according to the intended load and verified supporting structure.

• Q: Can the BCT-2 be used with an electric or manual chain hoist?

  A: Yes. The BCT Series accommodates appropriately rated hook-mounted manual or powered hoists. Confirm the hoist hook connection, clamp capacity, loading direction, and supporting beam strength before use.

• Q: Does a 5:1 design factor mean the clamp can lift 10 tons?

  A: No. The design factor is part of the manufacturer's design and verification criteria, not an additional working load allowance. The BCT-2 must never be loaded beyond its 2 metric ton rated capacity.
