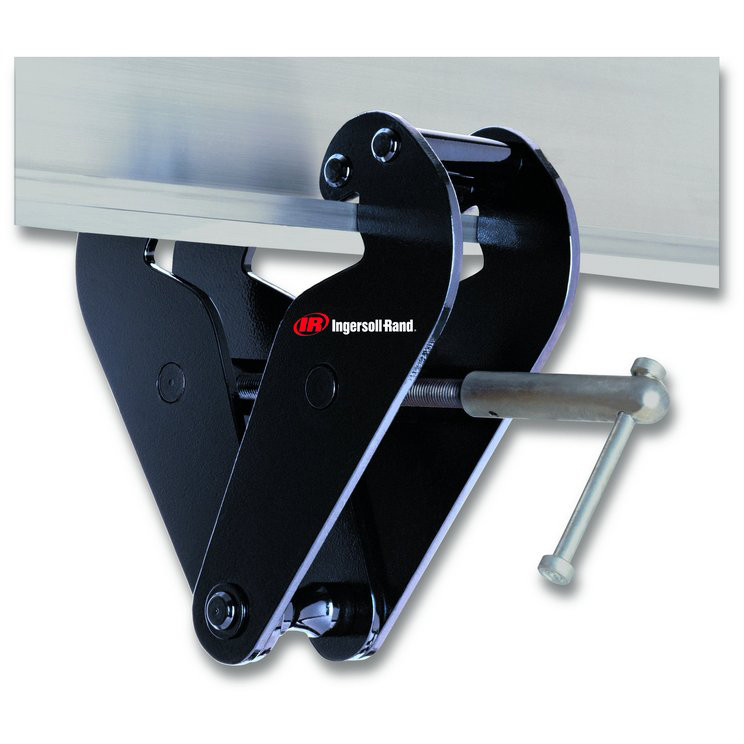

Ingersoll Rand BCT-1 Beam Clamp | BC Series | 1 Ton Capacity

Creating a secure lifting point on an overhead beam does not always require a permanent installation. The Ingersoll Rand BCT-1 Beam Clamp from the BCT Series provides an adjustable attachment point for suspending compatible manual or powered hoists, load blocks, and lifting equipment. Rated for a 1 metric ton (2,200 lb / 1,000 kg) working load capacity, this clamp attaches to suitable flat or tapered beam flanges without drilling or welding. Its hand-operated adjustment mechanism allows tool-free installation, making it a practical rigging solution for workshops, manufacturing plants, construction operations, and equipment maintenance facilities.

The BCT-1 accommodates beam flanges up to 8.7 inches (220 mm) wide and weighs approximately 8.4 lbs (3.8 kg), making it convenient to position and relocate when lifting arrangements change. Its low-headroom design minimizes the vertical space occupied between the supporting beam and the suspended hoist. The clamp jaws apply the load inside the beam flange edges to help reduce localized beam stress. Ingersoll Rand specifies a minimum 5:1 design factor for vertical lifting applications, meaning the clamp is designed and verified against a load multiple of its rated capacity; this does not increase its permissible working load. The BCT Series is designed to meet the applicable requirements of ASME B30.16 and ASME B30.7 for the manufacturer's stated lifting and pulling applications.

Type: Adjustable Beam Clamp | Model: BCT-1 | Brand: Ingersoll Rand | Series: BCT Series | Rated Capacity: 1 Metric Ton (2,200 lbs / 1,000 kg) | Maximum Beam Width: 8.7" (220 mm) | Clamp Weight: 8.4 lbs (3.8 kg) | Installation: Manual, Tool-Free | Beam Compatibility: Suitable Flat or Tapered Flanges | Design Factor: Minimum 5:1 for Vertical Lifting | Applications: Vertical Lifting and In-Line Pulling | Applicable Standards: ASME B30.16 and ASME B30.7

Features:

• One-metric-ton rated capacity provides an attachment point for compatible hoists and lifting equipment within the specified working load limit.
• Hand-operated clamping mechanism allows installation and removal without separate installation tools.
• Adjustable scissor-style clamp fits suitable flat or tapered beam flanges within the manufacturer's approved dimensions.
• Low-headroom configuration helps preserve usable lifting height beneath overhead support beams.
• Clamp jaw geometry places the applied load inside the flange edges to help reduce stress concentrations at the beam edges.
• Designed and verified to achieve a minimum 5:1 design factor for the manufacturer's specified vertical lifting applications.
• Suitable for properly engineered temporary or permanent lifting attachment arrangements.
• Each unit is serialized and supplied with a manufacturer's test certificate and operating manual for equipment identification and documentation.
• Compact, manually adjustable construction supports relocation between suitable lifting positions when operational requirements change.

NOTE: Older Model BC-1 was superseded by BCT-1

Made in USA:

Applications:

• Industrial maintenance and MRO: Establishing a lifting point for removing and positioning motors, pumps, gearboxes, and other equipment components.
• Manufacturing facilities: Supporting compatible hook-mounted hoists at designated assembly, installation, and maintenance stations.
• Construction and mechanical installation: Providing a temporary attachment point on an approved structural beam for suitable lifting operations.
• Workshops and repair facilities: Suspending compatible manual or powered hoists where overhead beam support is available.
• Equipment relocation and servicing: Supporting controlled lifting of machinery components within the clamp and supporting structure's rated capacity.
• Industrial rigging operations: Providing an approved attachment arrangement for vertical lifting or in-line pulling when all components and supporting structures are suitable.

FAQs:

• Q: What is the lifting capacity of the Ingersoll Rand BCT-1 Beam Clamp?

  A: The BCT-1 is rated for 1 metric ton, equivalent to 1,000 kg or approximately 2,200 lbs. This is the working load limit and must not be exceeded. The capacity of the supporting beam, hoist, and other lifting components must also be verified.

• Q: What beam size can the BCT-1 accommodate?

  A: Ingersoll Rand specifies a maximum beam flange width of 8.7 inches (220 mm). The supporting beam must also meet the manufacturer's requirements for flange geometry, minimum engagement, structural strength, and safe load support. Do not determine compatibility from maximum width alone.

• Q: Does the BCT-1 require drilling or welding during installation?

  A: No. The clamp is designed for hand installation onto a suitable beam flange. The operator positions the jaws over the lower flange and tightens the hand screw according to the manufacturer's instructions. The connection must be checked before any load is applied.

• Q: Can the BCT-1 be used with a manual chain hoist or powered hoist?

  A: Yes. Ingersoll Rand identifies the BCT Series for use with appropriately rated manual or powered hoists. The hoist hook or load block must connect correctly to the clamp, and the complete lifting arrangement must comply with the manufacturer's instructions and applicable safety requirements.

• Q: What does the 5:1 design factor mean?

  A: It describes the minimum design factor used by the manufacturer to verify the clamp's lifting design. It is not permission to lift five times the rated load. The BCT-1 remains limited to its 1 metric ton working load capacity.

• Q: Is the BCT-1 the same as the older BC-1 beam clamp?

  A: They are related Ingersoll Rand beam clamp models, but their published dimensions and weights differ. The current BCT-1 specification lists an 8.7-inch maximum beam width and 8.4 lb weight. Do not use older BC-1 dimensions to determine BCT-1 fitment.
