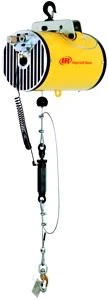

Ingersoll Rand BAW015080 Zimmerman Air Pneumatic Balancer with Single Control | 150 (lbs.) Capacity

Ingersoll Rand Zimmerman BAW015080 Air Pneumatic Balancer is a compressed-air-operated load-balancing system built for suspending and manually positioning constant-weight tools, fixtures, and components. Part of the Balance Air (BA) Series, this model provides a 150 lbs load capacity at 100 PSI and 80 inches of vertical travel. Its single balance control uses a self-relieving air regulator that automatically supplies or exhausts air to maintain the desired load position. Unlike pendant-operated balancers, this configuration allows operators to raise, lower, and position a balanced load directly by hand, making it suitable for repetitive workstation operations where controlled load movement and consistent positioning are required.

The BAW015080 features a single-wire-rope configuration with constant-tension balancing throughout its range of motion. The regulator can be adjusted to balance a specific load, allowing the operator to reposition suspended equipment with minimal resistance or maintain it at a selected working height. Its construction includes an all-steel housing, engineered plastic components, aircraft-grade wire rope, and a self-closing cast safety hook. The balancer also incorporates a pre-lubricated piston chamber and supports continuous-duty pneumatic operation. With a 6.5-inch balancer diameter and 50 lbs net weight, this model provides a compact handling solution for tool suspension, weld gun positioning, and assembly fixture support.

Type: Air Pneumatic Balancer | Model: BAW015080 | Series: Balance Air (BA) Series | Control Type: Single Balance Control | Load Capacity: 150 lbs at 100 PSI | Vertical Travel: 80 in. | Wire Rope Configuration: Single Wire Rope | Balancer Diameter: 6.5 in. | Net Weight: 50 lbs | Operation: Pneumatic

Note: Suspension Kit/Mounting Hardware is sold separately.

Features:

• 150 lbs rated lifting capacity at 100 PSI for suspending and balancing constant-weight loads.
• 80-inch vertical travel allows manual adjustment of suspended tools and components between working positions.
• Single balance control maintains constant tension throughout the full range of motion.
• Self-relieving air regulator automatically adds or exhausts compressed air to balance the suspended load.
• Direct manual load positioning eliminates the need for up/down pendant controls during normal balancing operations.
• All-steel housing, engineered plastic components, aircraft-grade wire rope, and self-closing cast safety hook provide a durable balancer assembly.
• Pre-lubricated piston chamber supports clean pneumatic operation with reduced routine lubrication requirements.
• Continuous-duty operation supports repeated positioning tasks at manufacturing and assembly workstations.

Made in USA:

Applications:

• Tool balancing: Suspending constant-weight tools at assembly stations to reduce the effort required for repeated handling.
• Weld gun suspension: Supporting welding equipment while allowing operators to manually adjust working positions.
• Fixture suspension: Balancing assembly fixtures that require controlled vertical movement and consistent positioning.
• Automotive manufacturing: Supporting tools and handling equipment used during repetitive vehicle assembly operations.
• Industrial production workstations: Suspending constant-weight equipment for accessible and repeatable manual positioning.

FAQs:

• Q: What is the maximum load capacity of the Ingersoll Rand Zimmerman BAW015080?
  A: The BAW015080 has a rated capacity of 150 lbs at 100 PSI. Actual operating capacity depends on the available compressed-air pressure. For lifting applications, Ingersoll Rand recommends keeping the working load within 80% of the operating capacity, including the weight of any handling device.
• Q: How does the single balance control operate?
  A: The single balance control uses a self-relieving air regulator to automatically add or exhaust air as the load is raised or lowered. It maintains balance for a constant-weight load, allowing manual positioning with minimal resistance.
• Q: Does the BAW015080 use a pendant control?
  A: No. The Balance Air Series uses single balance control rather than a pendant. Operators move the balanced load directly by hand.
• Q: What type of equipment can this pneumatic balancer support?
  A: The BAW015080 is suited to constant-weight equipment such as weld guns, assembly tools, and fixtures, provided the total supported weight is within the applicable working capacity.
• Q: How much vertical movement does the BAW015080 provide?
  A: This model provides 80 inches of vertical travel, allowing the suspended load to be manually raised, lowered, and positioned within its operating range.

Looking for more information about Ingersoll Rand Balancer? Click here to view the Catalog.

For help selecting the correct Ingersoll Rand Balancers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
