Ingersoll Rand 9001 Pneumatic Rivet Buster is designed for demanding demolition, concrete breaking, rivet removal, and heavy industrial maintenance applications that require dependable impact performance. Equipped with a 9" stroke, 900 blows per minute (BPM), and a 1.06" bore, this pneumatic rivet buster delivers the long piston travel and controlled striking action needed for challenging material removal tasks. Its air-powered design makes it well suited for continuous-duty operation in construction, fabrication, rail maintenance, shipyards, and industrial facilities equipped with compressed air systems.
The 9001 combines a long-stroke piston with a controlled blow rate to provide efficient impact energy for breaking concrete, removing rivets, and separating heavy materials. Designed for professional industrial users, this pneumatic tool offers reliable performance for repetitive demolition work while eliminating the need for electrical power at the point of use.
Type: Pneumatic Rivet Buster | Model: 9001 | Stroke Length: 9" | Blow Rate: 900 BPM | Bore: 1.06"
Features:
- Long 9-inch piston stroke helps generate powerful impact energy for demanding demolition and rivet removal applications.
- 900 blows per minute provide consistent striking performance for efficient material removal.
- 1.06-inch bore supports reliable pneumatic operation in industrial environments.
- Pneumatic design is well suited for continuous-duty applications where compressed air is available.
- Designed for heavy-duty demolition, maintenance, fabrication, and construction work.
- Durable construction supports dependable operation in demanding industrial environments.
Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)
Applications:
- Heavy rivet removal in structural and industrial applications.
- Concrete breaking and demolition projects.
- Bridge, rail, and infrastructure maintenance.
- Shipbuilding and marine repair operations.
- Industrial maintenance and heavy fabrication work.
FAQs:
- Q: What applications is the 9001 designed for?
A: It is intended for heavy-duty rivet removal, demolition, concrete breaking, and industrial material separation applications. - Q: What advantage does the 9-inch stroke provide?
A: The long piston stroke helps deliver strong impact energy for demanding demolition and breaking tasks. - Q: What does the 900 BPM rating indicate?
A: It represents the tool's blow rate, providing controlled, repeated impacts for efficient demolition and material removal. - Q: Is the 9001 suitable for continuous industrial use?
A: Yes. Its pneumatic design is intended for demanding industrial applications where compressed air systems are available. - Q: Does the catalog specify tool weight, air consumption, or tool shank size?
A: No. Those specifications were not confirmed in the provided source and have therefore been omitted.

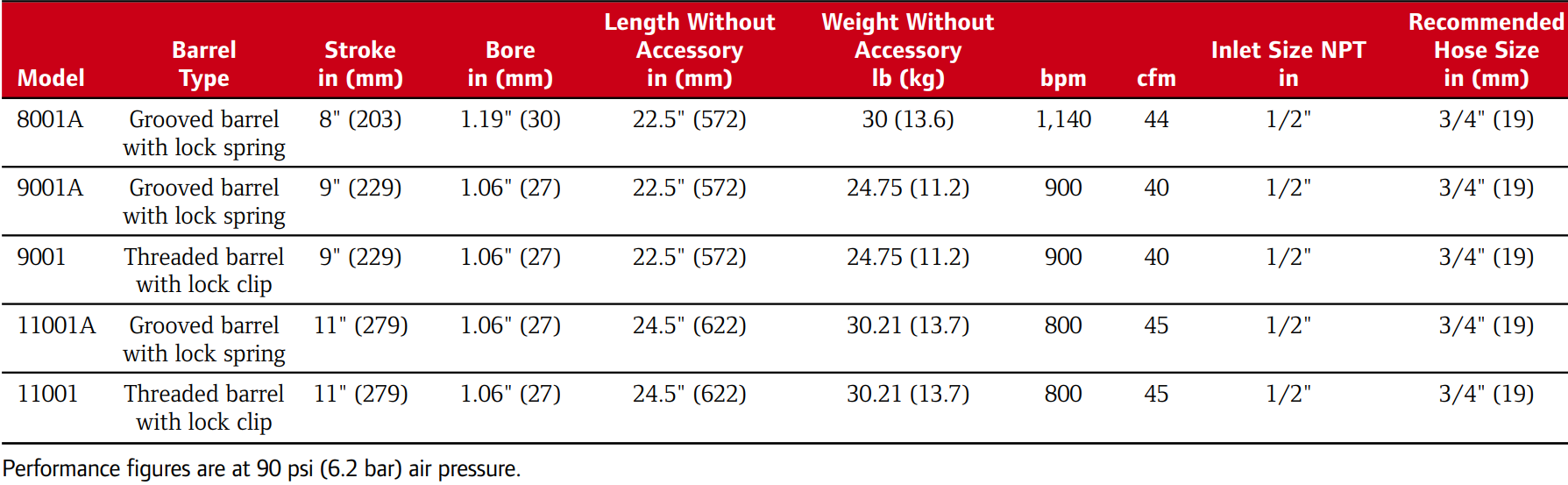

| SKU | Barrel Type | Stroke | Bore | Length Without Accessory | Weight Without Accessory | BPM | CFM | Inlet Size NPT | Recommended Hose Size |
|---|---|---|---|---|---|---|---|---|---|
| IN (MM) | IN (MM) | IN (MM) | LB (KG) | IN | IN (MM) | ||||
| 8001A | Grooved barrel with lock spring | 8” (203) | 1.19” (30) | 22.5” (572) | 30 (13.6) | 1,140 | 44 | 1/2” | 3/4” (19) |
| 9001A | Grooved barrel with lock spring | 9” (229) | 1.06” (27) | 22.5” (572) | 24.75 (11.2) | 900 | 40 | 1/2” | 3/4” (19) |
| 9001 | Threaded barrel with lock clip | 9” (229) | 1.06” (27) | 22.5” (572) | 24.75 (11.2) | 900 | 40 | 1/2” | 3/4” (19) |
| 11001A | Grooved barrel with lock spring | 11” (279) | 1.06” (27) | 24.5” (622) | 30.21 (13.7) | 800 | 45 | 1/2” | 3/4” (19) |
| 11001 | Threaded barrel with lock clip | 11” (279) | 1.06” (27) | 24.5” (622) | 30.21 (13.7) | 800 | 45 | 1/2” | 3/4” (19) |
Looking for more information about Ingersoll Rand Rivet Buster? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Rivet Busters, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Rivet Buster
- Handle Type
- Swan Neck Handle
- Barrel Type
- Threaded barrel with lock clip
- Bore (in.)
- 1.06
- Stroke (in.)
- 9
- Length (in.)
- 22.5
- Blows Per Minute (BPM)
- 900
- Air Consumption (CFM)
- 40
- Air Inlet
- 1/2" NPT
- Hose Size (in.)
- 3/4
