Ingersoll Rand 8670-47-3AM Self-Feed Air Drill | High-Thrust | 3" Stroke | 5/8" Capacity | 1.25 HP | 4,700 RPM

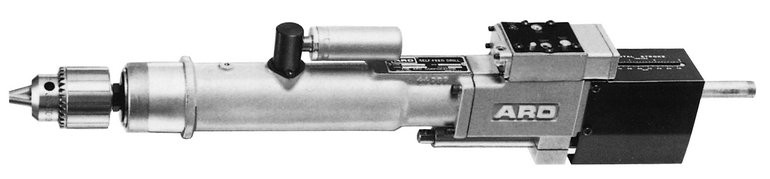

Ingersoll Rand 8670-47-3AM Pneumatic Self-Feed Drill

Feed drills are known for their reliability. Ingersoll Rand feed drill provides the freedom and a superior degree of precision to automate a wide range of secondary machining applications simply and economically. It utilizes compressed air for both the spindle rotation and feed/controls functions. The reliable rotary vane air motor offers high power-to-size performance, minimizing tool size and weight for added machine design flexibility. Double-acting air piston provides smooth, controlled forward and retract strokes. Needle valve controls allow adjustment of forward and retract strokes. The adjustment screw provides infinite stroke length settings. Ball bearing spindle support offers precision and long service life. Muffled exhaust for a quieter work environment. The tool is easily installed, requiring only simple pneumatic circuitry. May be used individually or in conjunction with other Ingersoll Rand electric and pneumatic tools.

Type: Feed Drill | Capacity (in.): 5/8 | Power (HP): 1.25 | Free Speed (RPM): 4,700 | Stroke (in.): 3 | Standard Chuck Capacity (in.): 3/4 | Air Inlet Size (in.): 3/8 NPT Male | Recommended Hose Size ID (in.): 5/8

Industry Applications: Aerospace: Rivet holes, e.g., wing frame mounting holes Appliances: Panel / frame holes, e.g., shipping bases Furniture: Dowel holes for chair seats, frames or backs Metal Fabrication: Sheet metal, e.g., cast components Recreational Vehicles: ATVs, snowmobiles, trailers Vehicle Components: Engine mounts or hinges Vehicle Frame: Holes for body components, e.g., firewall Windows / Doors / Cabinets: Hinge, pilot or dowel holes

NON RETURNABLE. MADE TO ORDER.

Looking for more information about Ingersoll Rand Self-Feed Air Drill? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Self-Feed Air Drills for your application, please call (800) 608-5210 or email info@intlairtool.com
