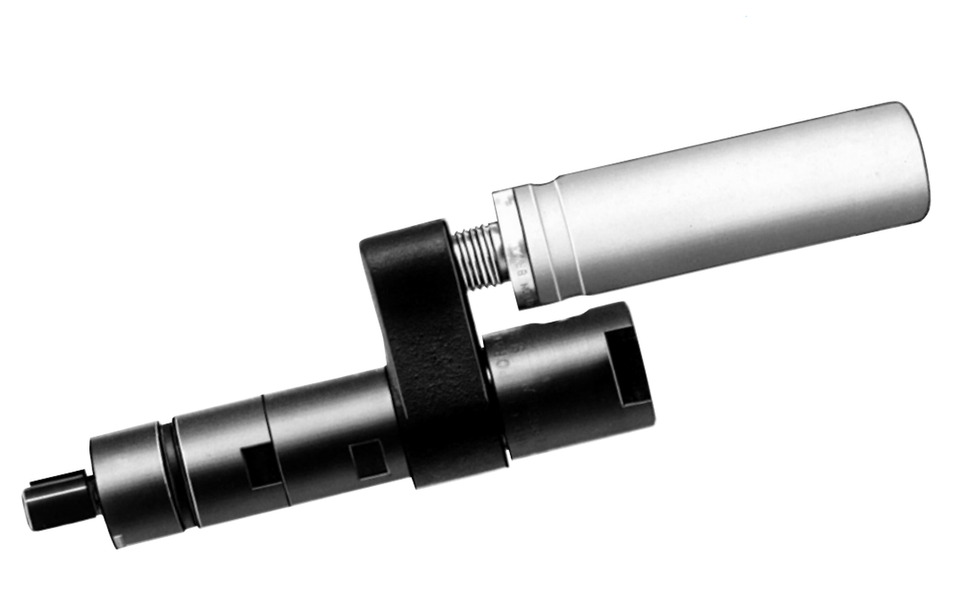

Ingersoll Rand 8617-A Non-Reversible Multi-Vane Air Motor | Planetary Gear | 0.10 HP | 5,000 RPM | 0.42 (ft-lbs) Stall Torque | Single Gear Reduction

Designed for machinery, fixtures, and production equipment requiring higher-speed pneumatic rotary power, the Ingersoll Rand 8617-A Non-Reversible Multi-Vane Air Motor delivers 0.10 HP with a 5,000 RPM free speed. Its 3/8"-24 threaded spindle provides a defined mounting interface for compatible driven components, while the single gear reduction supports this model's higher-speed operating characteristics.

At maximum horsepower, the 8617-A operates at 2,500 RPM and produces 0.21 lb-ft (0.3 Nm) of torque, with stall torque rated at 0.42 lb-ft (0.6 Nm). Free-speed air consumption is 9.5 SCFM (4.5 L/s), giving equipment designers and maintenance teams a practical value for sizing the compressed-air supply.

Type: Multi-Vane Air Motor | Model: 8617-A | Configuration: Non-Reversible | Power: 0.10 HP | Spindle: 3/8"-24 Threaded | Free Speed: 5,000 RPM | Load Speed at Max. HP: 2,500 RPM | Torque Output at Max. HP: 0.21 lb-ft (0.3 Nm) | Stall Torque: 0.42 lb-ft (0.6 Nm) | Air Consumption at Free Speed: 9.5 SCFM (4.5 L/s) | Sound Level at Free Speed: 80 dB(A) | Weight: 0.80 lb (0.36 kg) | Gear Reduction: Single

Features:

• Multi-vane pneumatic motor supplies rotary power for compatible machinery, fixtures, and production equipment.
• 5,000 RPM free speed supports applications requiring faster pneumatic motor output.
• 2,500 RPM load speed at maximum horsepower provides a more practical operating reference when matching the motor to a driven load.
• 3/8"-24 threaded spindle provides a threaded mechanical connection for compatible components.
• Single gear reduction supports the higher-speed output characteristics of this configuration.
• Non-reversible design provides single-direction rotary operation.
• 0.42 lb-ft (0.6 Nm) stall torque identifies the torque available as motor speed approaches zero.
• 0.80 lb (0.36 kg) weight supports installations where compact equipment weight is an important consideration.

Made in USA:

Applications:

• Production machinery requiring higher-speed pneumatic rotary power.
• Automation equipment and fixtures designed for single-direction motor operation.
• Mechanical systems designed around a 3/8"-24 threaded spindle connection.
• Equipment where a 2,500 RPM operating speed at maximum horsepower matches the driven load requirements.
• Compressed-air-powered machinery where the specified speed, torque, and airflow characteristics suit the application.

FAQs:

• Q: What is the free speed of the Ingersoll Rand 8617-A?
  A: The 8617-A has a free speed of 5,000 RPM. At maximum horsepower, its specified load speed is 2,500 RPM.
• Q: How much torque does the 8617-A produce?
  A: The motor produces 0.21 lb-ft (0.3 Nm) at maximum horsepower and has a stall torque rating of 0.42 lb-ft (0.6 Nm).
• Q: What spindle configuration does the 8617-A use?
  A: The 8617-A uses a 3/8"-24 threaded spindle. The mating component should be compatible with this spindle size and thread configuration.
• Q: What is the air consumption of the 8617-A?
  A: Ingersoll Rand specifies free-speed air consumption at 9.5 SCFM (4.5 L/s). This value should be considered when sizing the compressed-air supply for the installation.
• Q: How does the 8617-A differ from the 8616-A?
  A: Both are non-reversible 0.10 HP motors with 3/8"-24 threaded spindles. The 8617-A uses single gear reduction and runs at 5,000 RPM free speed, while the 8616-A uses double gear reduction and runs at 1,000 RPM, resulting in different speed and torque characteristics.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
