Ingersoll Rand 8616-A Non-Reversible Multi-Vane Air Motor | Planetary Gear | 0.10 HP | 1,000 RPM | 1.8 (ft-lbs) Stall Torque | Double Gear Reduction

Designed for machinery and equipment requiring controlled pneumatic rotary power, the Ingersoll Rand 8616-A Non-Reversible Multi-Vane Air Motor delivers 0.10 HP with a 1,000 RPM free speed. Its 3/8"-24 threaded spindle provides a defined connection for compatible driven components, while double gear reduction supports the lower-speed, higher-torque characteristics of this model.

At maximum horsepower, the 8616-A operates at 500 RPM and produces 1.05 lb-ft (1.4 Nm) of torque, with stall torque reaching 1.8 lb-ft (2.4 Nm). Air consumption at free speed is 9.5 SCFM (4.5 L/s), an important consideration when sizing the compressed-air supply for continuous equipment operation.

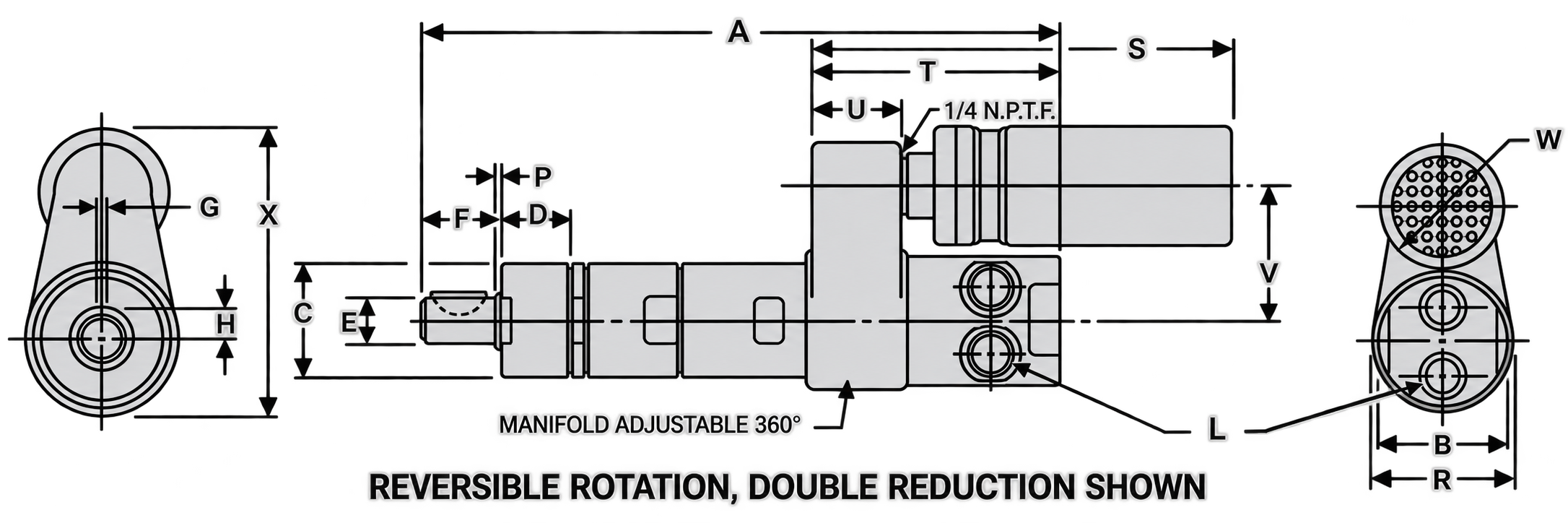

Type: Multi-Vane Air Motor | Model: 8616-A | Configuration: Non-Reversible | Power: 0.10 HP | Spindle: 3/8"-24 Threaded | Free Speed: 1,000 RPM | Load Speed at Max. HP: 500 RPM | Torque Output at Max. HP: 1.05 lb-ft (1.4 Nm) | Stall Torque: 1.8 lb-ft (2.4 Nm) | Air Consumption at Free Speed: 9.5 SCFM (4.5 L/s) | Sound Level at Free Speed: 80 dB(A) | Weight: 0.90 lb (0.40 kg) | Gear Reduction: Double

Features:

• Multi-vane pneumatic design provides rotary power for compatible machinery, fixtures, and equipment.
• 1,000 RPM free speed and 500 RPM load speed at maximum horsepower provide a controlled operating range for lower-speed applications.
• Double gear reduction supports increased torque output while reducing rotational speed.
• 3/8"-24 threaded spindle provides a threaded mechanical interface for compatible driven components.
• Non-reversible configuration provides single-direction rotary operation.
• 1.8 lb-ft (2.4 Nm) stall torque indicates the torque developed as motor speed approaches zero.
• 0.90 lb (0.40 kg) weight supports integration into equipment where motor weight is an important design consideration.
• 9.5 SCFM (4.5 L/s) free-speed air consumption provides a reference for compressed-air system sizing.

Made in USA:

Applications:

• Production machinery requiring controlled pneumatic rotary power.
• Automation equipment and fixtures designed for single-direction motor operation.
• Mechanical systems compatible with a 3/8"-24 threaded spindle connection.
• Equipment requiring lower operating speed with increased torque from a geared air motor.
• Compressed-air-powered machinery where the specified speed and torque characteristics match the driven load.

FAQs:

• Q: What spindle connection does the Ingersoll Rand 8616-A use?
  A: The 8616-A uses a 3/8"-24 threaded spindle. The mating component should be compatible with this spindle size and thread configuration.
• Q: What torque does the 8616-A produce under load?
  A: At maximum horsepower, torque output is 1.05 lb-ft (1.4 Nm). Stall torque is rated at 1.8 lb-ft (2.4 Nm).
• Q: What is the loaded operating speed of the 8616-A?
  A: The motor has a 1,000 RPM free speed and operates at 500 RPM at maximum horsepower. The loaded value is particularly useful when matching the motor to driven equipment.
• Q: How much compressed air does the 8616-A consume?
  A: The manufacturer specifies 9.5 SCFM (4.5 L/s) at free speed. The air system should be sized to provide adequate airflow for the intended installation.
• Q: What is the difference between the 8616-A and 8610-A?
  A: The supplied manufacturer table shows the same power, speed, torque, airflow, weight, and double gear reduction for both models. The key difference is the spindle: the 8616-A uses a 3/8"-24 threaded spindle, while the 8610-A uses a 3/8" keyed spindle.
