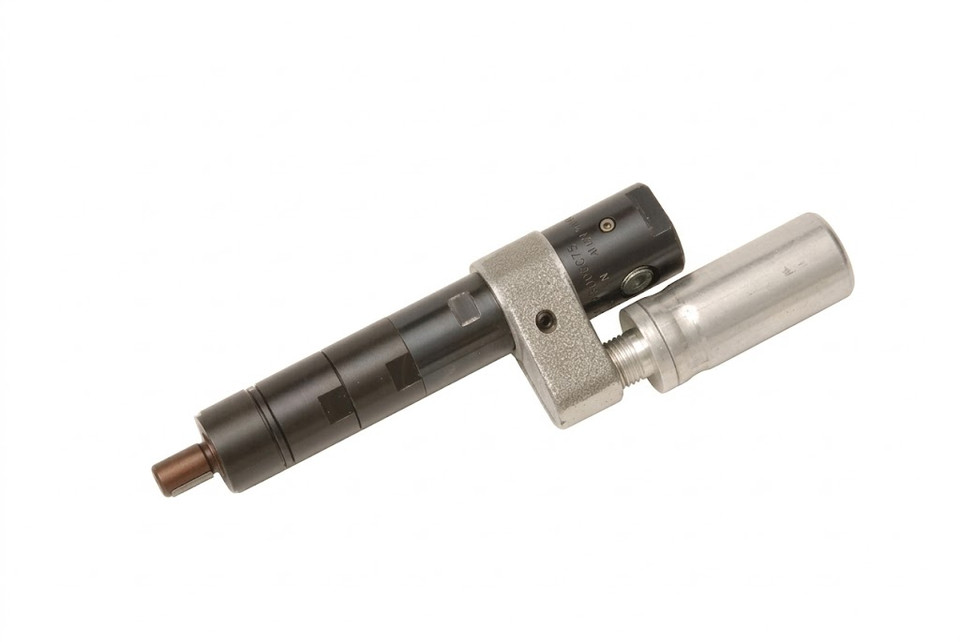

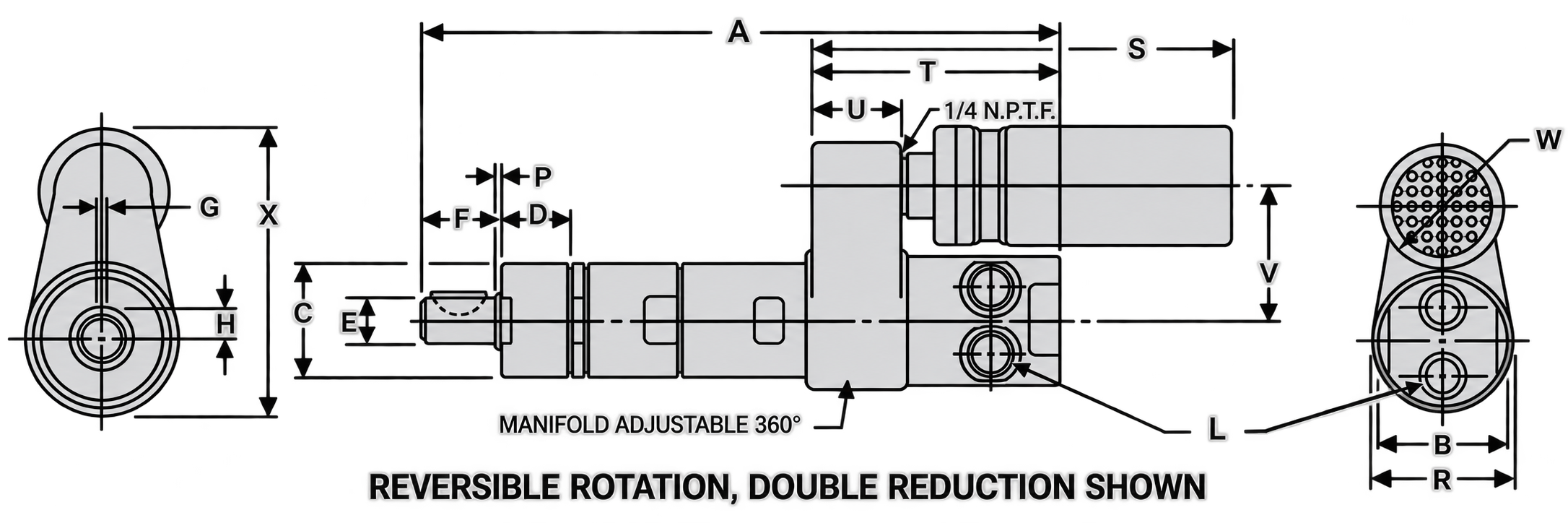

Ingersoll Rand 8613-A Reversible Multi-Vane Air Motor | Planetary Gear | 0.10 HP | 1,000 RPM | 1.8 (ft-lbs) Stall Torque | Double Gear Reduction

Designed for machinery, fixtures, and production equipment that require bidirectional pneumatic rotary power, the Ingersoll Rand 8613-A Reversible Multi-Vane Air Motor delivers 0.10 HP with a 1,000 RPM free speed. Its 3/8" keyed spindle provides a defined connection for compatible driven components, while double gear reduction supports the motor's lower-speed, higher-torque operating characteristics.

At maximum horsepower, the 8613-A operates at 500 RPM and produces 1.05 lb-ft (1.4 Nm) of torque, while stall torque is rated at 1.8 lb-ft (2.6 Nm). Free-speed air consumption is 11.5 SCFM (5.4 L/s), providing an important reference when sizing the compressed-air supply for the installation.

Type: Multi-Vane Air Motor | Model: 8613-A | Configuration: Reversible | Power: 0.10 HP | Spindle: 3/8" Keyed | Free Speed: 1,000 RPM | Load Speed at Max. HP: 500 RPM | Torque Output at Max. HP: 1.05 lb-ft (1.4 Nm) | Stall Torque: 1.8 lb-ft (2.6 Nm) | Air Consumption at Free Speed: 11.5 SCFM (5.4 L/s) | Sound Level at Free Speed: 80 dB(A) | Weight: 0.90 lb (0.40 kg) | Gear Reduction: Double

Features:

• Reversible multi-vane design provides bidirectional rotary operation for compatible machinery and equipment.
• 1,000 RPM free speed is paired with a 500 RPM load speed at maximum horsepower for controlled operation under load.
• Double gear reduction supports the lower-speed, higher-torque output characteristics of this motor.
• 3/8" keyed spindle provides a mechanical interface for connecting compatible driven components.
• 1.05 lb-ft (1.4 Nm) torque output at maximum horsepower provides a useful value for matching the motor to the driven load.
• 1.8 lb-ft (2.6 Nm) stall torque indicates the torque developed as motor speed approaches zero.
• 0.90 lb (0.40 kg) weight supports integration where motor mass is an important equipment-design consideration.
• 11.5 SCFM (5.4 L/s) free-speed air consumption provides a reference for compressed-air system sizing.

Made in USA:

Applications:

• Production machinery requiring reversible pneumatic rotary power.
• Automation equipment and fixtures where rotation must be available in either direction.
• Mechanical systems designed around a 3/8" keyed spindle connection.
• Equipment requiring controlled operating speed with the torque characteristics of a double-reduction air motor.
• Compressed-air-powered machinery where the specified speed, torque, and airflow match the driven load.

FAQs:

• Q: Is the Ingersoll Rand 8613-A reversible?
  A: Yes. The 8613-A is a reversible 0.10 HP multi-vane air motor, allowing bidirectional rotary operation in compatible equipment.
• Q: What is the loaded operating speed of the 8613-A?
  A: Free speed is 1,000 RPM, while load speed at maximum horsepower is 500 RPM. The loaded speed is especially useful when matching the motor to the operating requirements of driven equipment.
• Q: How much torque does the 8613-A produce?
  A: Torque output at maximum horsepower is 1.05 lb-ft (1.4 Nm), and the manufacturer table lists stall torque at 1.8 lb-ft (2.6 Nm).
• Q: What is the air consumption of the 8613-A?
  A: Air consumption at free speed is 11.5 SCFM (5.4 L/s). This value should be considered when sizing the compressed-air supply for the motor.
• Q: What spindle configuration does the 8613-A use?
  A: The motor uses a 3/8" keyed spindle. The driven component and coupling arrangement should be compatible with this spindle configuration.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
