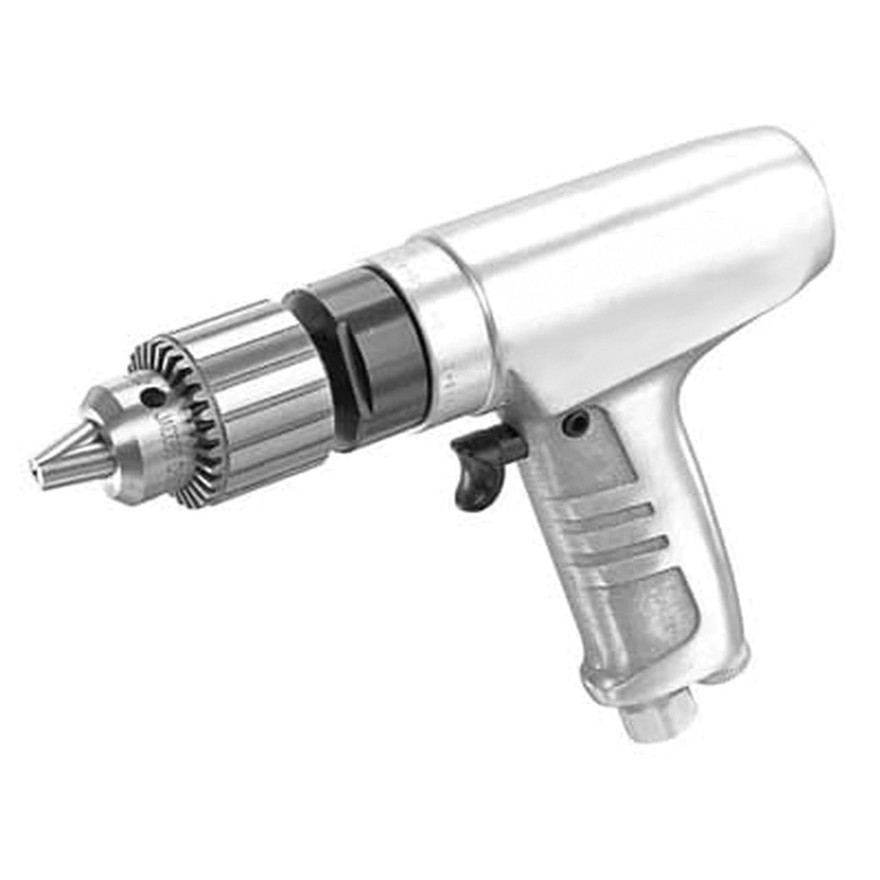

Ingersoll Rand 7849-E Pneumatic Drill | 7800 Series | 0.70 HP | 350 RPM | 654 (in-lbs) Max Torque | Trigger-Start

Ingersoll Rand 7849-E Pneumatic Drill is engineered for demanding industrial drilling applications that require exceptional torque at lower operating speeds. As part of the 7800 Series, it combines a 0.70 HP air motor, 350 RPM free speed, and an impressive 654 in-lbs maximum torque to deliver the controlled power needed for drilling larger holes and working with tougher materials. The trigger-start throttle provides responsive speed control, allowing operators to maintain accuracy and confidence throughout each drilling operation.

Designed for continuous-duty production and maintenance environments, the 7849-E delivers reliable pneumatic performance for fabrication, aerospace, heavy equipment, and industrial assembly applications. Its high-torque, low-speed configuration makes it well suited for drilling tasks that demand greater turning force while maintaining consistent, repeatable results.

Type: Pneumatic Drill | Series: 7800 Series | Power: 0.70 HP | Free Speed: 350 RPM | Maximum Torque: 654 in-lbs | Throttle: Trigger-Start

Features:

• 0.70 HP pneumatic motor delivers dependable power for continuous-duty industrial drilling applications.
• 350 RPM free speed provides excellent control for demanding drilling operations requiring high torque.
• 654 in-lbs maximum torque supports drilling larger holes and working with tougher materials.
• Trigger-start throttle allows convenient one-handed operation with responsive speed modulation.
• Designed for repetitive production, fabrication, and maintenance drilling applications.
• Pneumatic operation provides dependable performance without the heat buildup associated with electric motors in continuous-duty environments.
• Part of the Ingersoll Rand 7800 Series of industrial pneumatic drills.

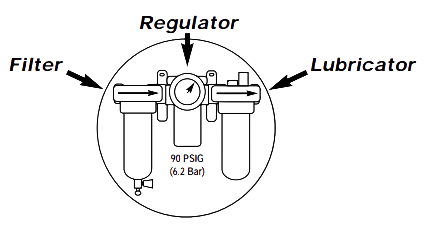

Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)

Made in USA:

Applications:

• Heavy-duty industrial production drilling.
• Aerospace manufacturing and structural assembly.
• Metal fabrication and machine shop operations.
• Plant maintenance and equipment repair.
• Manufacturing applications requiring controlled, high-torque pneumatic drilling performance.

FAQs:

• Q: Why does the 7849-E operate at only 350 RPM?
  A: The lower operating speed allows the drill to deliver significantly higher torque, making it better suited for demanding drilling applications that require increased turning force.
• Q: What is the advantage of the trigger-start throttle?
  A: The trigger-start design provides responsive speed control and allows the operator to easily regulate drilling speed for improved accuracy.
• Q: What types of applications is this drill designed for?
  A: It is intended for industrial production, fabrication, aerospace manufacturing, maintenance, and other applications requiring dependable high-torque pneumatic drilling.
• Q: What benefit does the 654 in-lbs maximum torque provide?
  A: The high torque output helps the drill maintain performance during demanding drilling operations involving larger drill bits or more resistant materials.

Looking for more information about the Ingersoll Rand Drill? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Drills for your application, please call (800) 608-5210 or email info@intlairtool.com
