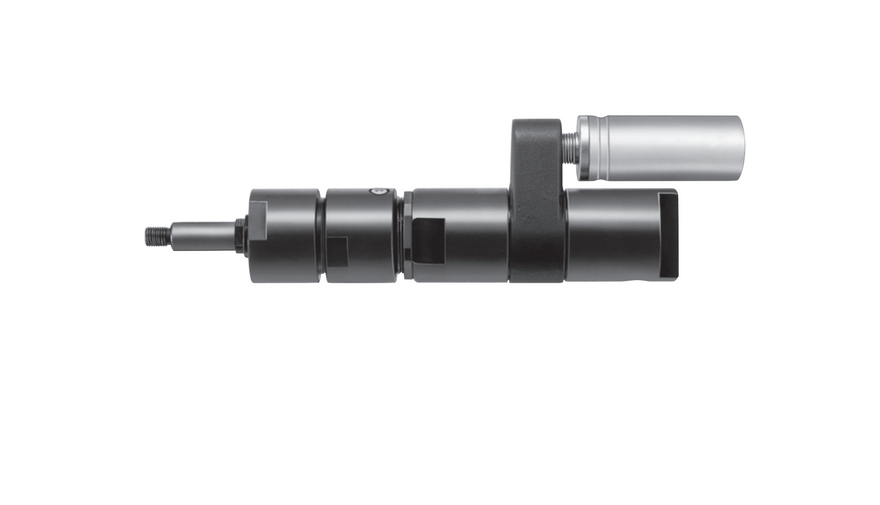

Ingersoll Rand 7804-3B Non-Reversible Milling Motor | Forward-Rotation | 0.85 HP | 650 RPM | 30.00 (ft-lbs) Stall Torque | Double Gear Reduction

Ingersoll Rand 7804-3B Non-Reversible Milling Motor is designed to provide controlled pneumatic rotary power for milling machinery and other industrial equipment requiring dedicated forward rotation. This 0.85 HP air motor operates at a 650 RPM free speed and delivers 30.00 ft-lbs of stall torque. Its double gear reduction configuration provides reduced output speed and increased torque capability for compatible applications where controlled rotation and substantial torque are required.

The 7804-3B uses a non-reversible, forward-rotation configuration for equipment designed to operate in one direction. Its gear-reduced pneumatic design combines 0.85 HP of power with a controlled 650 RPM free speed and high stall torque, making it suitable for compatible milling and industrial machinery applications where output speed and torque requirements favor a double-reduction motor.

Product Type: Non-Reversible Milling Motor | Rotation: Forward-Rotation | Power: 0.85 HP | Free Speed: 650 RPM | Stall Torque: 30.00 ft-lbs | Gear Reduction: Double

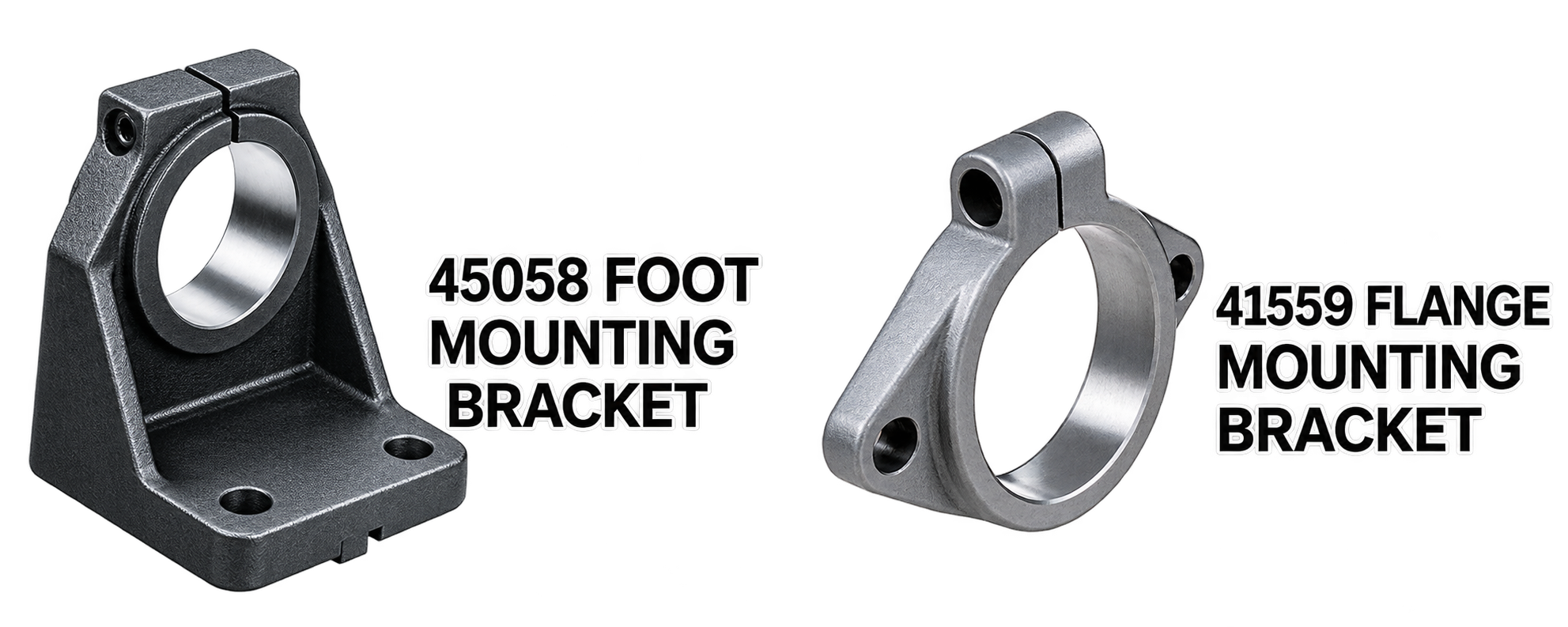

Equipment Options:

45058 - Foot Bracket
41559 - Flange Bracket

Features:

• Forward-only rotation provides dedicated directional operation for compatible milling equipment.
• 0.85 HP pneumatic motor provides dependable rotary power for industrial machinery.
• 650 RPM free speed provides controlled, low-speed operation for compatible equipment.
• Double gear reduction provides a reduced output speed and increased torque capability compared with a direct-drive arrangement.
• 30.00 ft-lbs stall torque provides substantial torque capability when the motor is stopped under load.
• Pneumatic operation provides an alternative drive source for compatible milling and industrial equipment.

Made in USA:

Applications:

• Milling machinery requiring controlled forward-only rotation.
• Industrial production equipment requiring low-speed, gear-reduced pneumatic rotary power.
• OEM machinery and equipment integration.
• Custom machinery where reduced output speed and higher torque capability are required.
• Equipment applications where pneumatic power is preferred over an electric motor.

FAQs:

• Q: Is the 7804-3B reversible?
  A: No. The 7804-3B is a non-reversible milling motor designed for forward rotation.
• Q: What does double gear reduction mean?
  A: It indicates that the motor uses two stages of gear reduction to reduce output speed and provide increased torque capability compared with a direct-drive arrangement.
• Q: What is the free speed of the 7804-3B?
  A: The published free speed is 650 RPM.
• Q: What does the 30.00 ft-lbs stall torque rating indicate?
  A: Stall torque is the torque available when the motor is stopped under load. The 7804-3B has a published stall torque of 30.00 ft-lbs.
• Q: What type of equipment can use this milling motor?
  A: It is intended for compatible milling machinery and other industrial equipment requiring forward-only pneumatic rotation with low output speed and substantial torque capability. The motor's mounting, shaft, speed, torque, and air requirements should be matched to the equipment before installation.

Looking for more information about Ingersoll Rand Milling Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Milling Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
