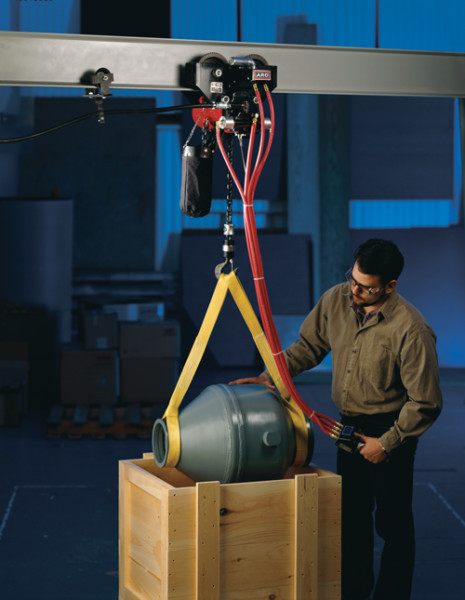

Ingersoll Rand 7792A-3A26-C22S ARO Series Air Chain Hoist | 2 Ton Capacity | 26 ft Lift | 22 ft Drop | Steel Snap Hook | 2 Motor Pendent Control

Designed for demanding industrial lifting applications, the Ingersoll Rand 7792A-3A26-C22S ARO Series Air Chain Hoist delivers a 4,400 lb (2 Metric Ton) lifting capacity with a 26 ft lift and 22 ft Pendent drop. Powered by compressed air, this pneumatic chain hoist is engineered for reliable overhead material handling in manufacturing facilities, maintenance departments, assembly operations, and industrial production environments where continuous-duty performance and precise load positioning are essential.

Built on the proven ARO 7792A platform, this configuration features 2 Motor Pendent Control and steel snap hooks for secure suspension and load attachment. A self-cooling rotary air motor, compact planetary gear transmission, and spring-applied, air-released automatic disc brake work together to provide dependable lifting performance while securely holding suspended loads whenever the air supply is interrupted.

Type: Air Chain Hoist | Series: ARO 7792A Series | Model: 7792A-3A26-C22S | SKU: 7792A-3A26-C22S | Capacity: 4,400 lb (2 Metric Ton) | Lift: 26 ft | Pendent Drop: 22 ft | Control Type: 2 Motor Pendent Control | Top Suspension: Steel Snap Hook | Bottom Suspension: Steel Snap Hook | Chain Falls: 2 | Rated Lift Speed: 13 ft/min (4.0 m/min) | No Load Lift Speed: 20 ft/min (6.1 m/min) | Rated Lowering Speed: 30 ft/min (9.1 m/min) | No Load Lowering Speed: 18 ft/min (5.5 m/min) | Hook Mount Headroom: 22.4 in (569 mm) | Trolley Mount Headroom: 18.5 in (470 mm) | Chain Size: 0.312 x 0.858 in | Chain Weight: 0.9 lb/ft (0.4 kg/ft) | Working Pressure: 70–100 PSI (5–7 bar) | Air Consumption @ Rated Load: 70 CFM (1.98 m³/min) | Air Inlet: 1/2 in NPT | Sound Level: 85 dBA

Features:

• 4,400 lb (2 metric ton) lifting capacity for demanding industrial overhead lifting applications.
• 26 ft lift provides extended vertical travel for high-reach material handling.
• 22 ft Pendent drop allows convenient operation from extended working distances.

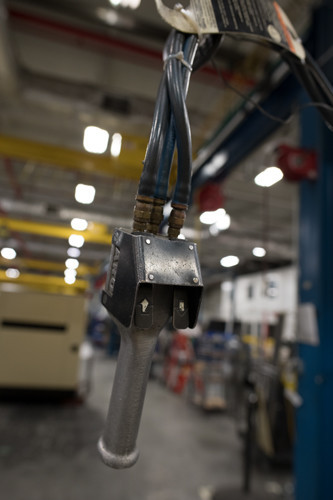

• 2 Motor Pendent Control provides responsive and accurate lifting and lowering control.
• Steel snap hooks provide secure upper suspension and lower load attachment.
• Two-fall load chain configuration delivers the required lifting capacity for heavier loads.
• Planetary gear transmission provides dependable power transfer and smooth lifting performance.
• Spring-applied, air-released automatic disc brake securely holds suspended loads whenever the air supply is interrupted.
• 100% duty cycle supports continuous industrial operation.
• Operates on standard industrial compressed air systems from 70–100 PSI.

Made in USA:

Applications:

• Manufacturing facilities.
• Heavy assembly operations.
• Industrial maintenance departments.
• Machine shops and fabrication facilities.
• Overhead lifting applications requiring 2-ton capacity with 2 Motor Pendent Control.

FAQs:

• Q: What is the lifting capacity of this hoist?
  A: This model is rated to lift 4,400 lb (2 metric tons).
• Q: What lift height and Pendent drop does this configuration provide?
  A: This hoist includes a 26 ft lift and a 22 ft Pendent drop.
• Q: What type of control does this hoist use?
  A: This model features 2 Motor Pendent Control for precise lifting and lowering operations.
• Q: How many chain falls does this hoist use?
  A: The 7792A Series utilizes a two-fall load chain configuration.
• Q: What operating air pressure is recommended?
  A: Operate the hoist using clean, dry compressed air between 70 and 100 PSI (5–7 bar).

 Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
