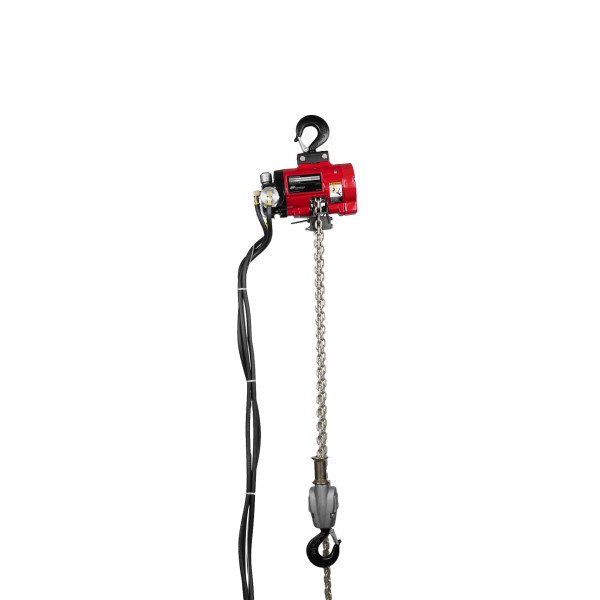

Ingersoll Rand 7790A-4HD14-C10 ARO Series Air Chain Hoist | 1 Ton Capacity | 14 ft Lift | 10 ft Drop | Steel Snap Hook | 3 Motor Pendent Control

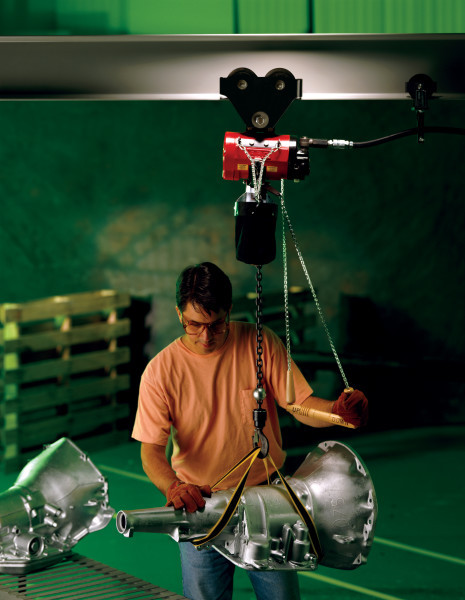

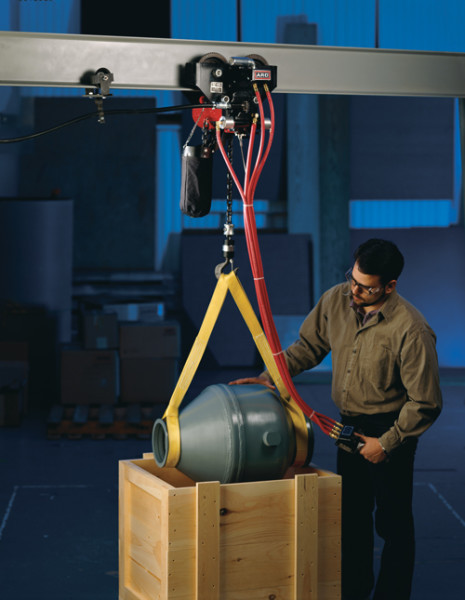

Designed for demanding industrial lifting applications, the Ingersoll Rand 7790A-4HD14-C10 ARO Series Air Chain Hoist provides a 2,200 lb (1 Metric Ton) lifting capacity with a 14 ft lift and 10 ft Pendent drop. Powered by compressed air, this pneumatic chain hoist is engineered for reliable overhead material handling in manufacturing plants, assembly operations, maintenance facilities, and industrial production environments where accurate load positioning and continuous-duty performance are essential.

This configuration features 3 Motor Pendent Control and steel snap hooks for secure suspension and load handling. Built on the proven ARO 7790A platform, it incorporates a self-cooling rotary air motor, planetary gear transmission, and a spring-applied, air-released automatic disc brake that securely holds suspended loads whenever the air supply is interrupted, providing dependable performance in demanding applications.

Type: Air Chain Hoist | Series: ARO 7790A Series | Model: 7790A-4HD14-C10 | SKU: 7790A-4HD14-C10 | Capacity: 2,200 lb (1 Metric Ton) | Lift: 14 ft | Pendent Drop: 10 ft | Control Type: 3 Motor Pendent Control | Top Suspension: Steel Snap Hook | Bottom Suspension: Steel Snap Hook | Chain Falls: 1 | Rated Lift Speed: 26 ft/min (7.9 m/min) | No Load Lift Speed: 37 ft/min (11.3 m/min) | Rated Lowering Speed: 44 ft/min (13.4 m/min) | No Load Lowering Speed: 31 ft/min (9.5 m/min) | Hook Mount Headroom: 18.9 in (480.1 mm) | Trolley Mount Headroom: 15 in (381 mm) | Chain Size: 0.312 x 0.858 in | Chain Weight: 0.9 lb/ft (0.4 kg/ft) | Working Pressure: 70–100 PSI (5–7 bar) | Air Consumption @ Rated Load: 70 CFM (1.98 m³/min) | Air Inlet: 1/2 in NPT | Sound Level: 85 dBA

Features:

• 2,200 lb (1 metric ton) lifting capacity for industrial overhead material handling.
• 14 ft lift provides additional vertical travel for production and maintenance operations.
• 10 ft Pendent drop offers convenient floor-level operation.
• 3 Motor Pendent Control enables precise control of lifting and lowering functions.

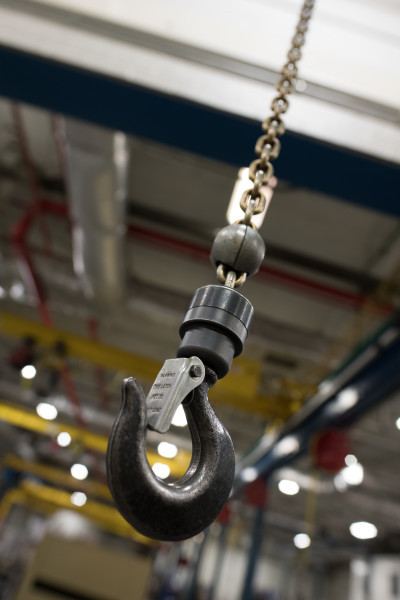

• Steel snap hooks provide secure upper suspension and lower load attachment.
• Single-fall load chain design minimizes headroom requirements while maintaining efficient lifting performance.
• Planetary gear transmission provides smooth, dependable power transfer.
• Spring-applied, air-released automatic disc brake securely holds suspended loads whenever air pressure is interrupted.
• 100% duty cycle supports continuous industrial operation.
• Operates on standard industrial compressed air systems from 70–100 PSI.

Made in USA:

Applications:

• Manufacturing facilities.
• Assembly and production lines.
• Industrial maintenance operations.
• Machine shops and fabrication facilities.
• Overhead lifting applications requiring 1-ton capacity with 3 Motor Pendent Control.

FAQs:

• Q: What is the lifting capacity of this hoist?
  A: This model is rated to lift 2,200 lb (1 metric ton).
• Q: What lift height and Pendent drop does this model include?
  A: This configuration includes a 14 ft lift and a 10 ft Pendent drop.
• Q: What type of control does this hoist use?
  A: This model features 3 Motor Pendent Control for accurate load handling.
• Q: How many chain falls does this hoist use?
  A: The 7790A Series utilizes a single-fall load chain configuration.
• Q: What operating air pressure is recommended?
  A: Operate the hoist using clean, dry compressed air between 70 and 100 PSI (5–7 bar).

 Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
