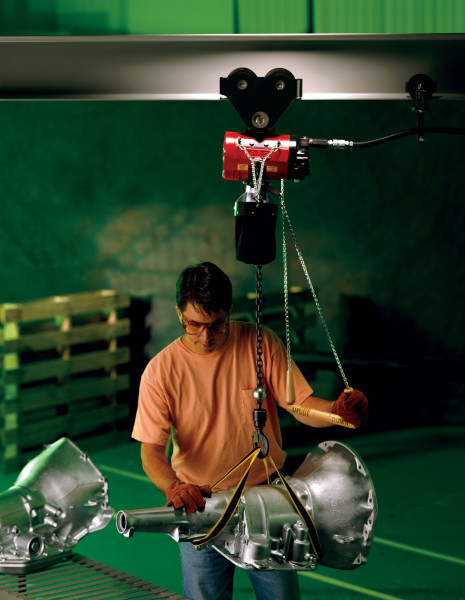

Ingersoll Rand 7790A-2DA10-C6U ARO Series Air Chain Hoist | 1 Ton Capacity | 10 ft Lift | 6 ft Drop | Steel Snap Hook | Pendent Control

Designed for demanding industrial lifting applications, the Ingersoll Rand 7790A-2DA10-C6U ARO Series Air Chain Hoist provides a 2,200 lb (1 Metric Ton) lifting capacity with a 10 ft lift and 6 ft Pendent drop. Powered by compressed air, this pneumatic chain hoist is designed for reliable overhead material handling in manufacturing plants, assembly lines, maintenance facilities, and industrial production environments where smooth, precise lifting is essential.

This configuration features Pendent Control, steel snap hooks, a canvas chain container, and the DA configuration as designated by the manufacturer. Built on the proven ARO 7790A platform, it utilizes a self-cooling rotary air motor, planetary gear transmission, and a spring-applied, air-released automatic disc brake that securely holds suspended loads whenever the air supply is interrupted.

Type: Air Chain Hoist | Series: ARO 7790A Series | Model: 7790A-2DA10-C6U | SKU: 7790A-2DA10-C6U | Capacity: 2,200 lb (1 Metric Ton) | Lift: 10 ft | Pendent Drop: 6 ft | Control Type: Pendent Control | Top Suspension: Steel Snap Hook | Bottom Suspension: Steel Snap Hook | Chain Container: Canvas | Chain Falls: 1 | Rated Lift Speed: 26 ft/min (7.9 m/min) | No Load Lift Speed: 37 ft/min (11.3 m/min) | Rated Lowering Speed: 44 ft/min (13.4 m/min) | No Load Lowering Speed: 31 ft/min (9.5 m/min) | Hook Mount Headroom: 18.9 in (480.1 mm) | Trolley Mount Headroom: 15 in (381 mm) | Chain Size: 0.312 x 0.858 in | Chain Weight: 0.9 lb/ft (0.4 kg/ft) | Net Weight (10 ft Lift): 62 lb (28.1 kg) | Working Pressure: 70–100 PSI (5–7 bar) | Air Consumption @ Rated Load: 70 CFM (1.98 m³/min) | Air Inlet: 1/2 in NPT | Sound Level: 85 dBA

Features:

• 2,200 lb (1 metric ton) lifting capacity for demanding industrial material handling.
• 10 ft lift provides dependable vertical lifting for production and maintenance applications.
• 6 ft Pendent drop allows comfortable floor-level operation.
• Pendent Control enables accurate lifting and lowering of suspended loads.
• Factory-installed canvas chain container stores excess load chain during operation.
• Single-fall load chain design minimizes headroom requirements.
• Planetary gear transmission delivers efficient power transfer and dependable operation.
• Spring-applied, air-released automatic disc brake securely holds suspended loads if the air supply is interrupted.
• Operates on standard industrial compressed air systems from 70–100 PSI.
• 100% duty cycle supports continuous industrial operation.

Made in USA:

Applications:

• Manufacturing facilities.
• Assembly operations.
• Industrial maintenance departments.
• Machine shops and fabrication facilities.
• General overhead lifting requiring 1-ton capacity with precise Pendent Control.

FAQs:

• Q: What is the lifting capacity of this hoist?
  A: This model is rated for 2,200 lb (1 metric ton).
• Q: What lift height and Pendent drop does this model include?
  A: This configuration includes a 10 ft lift and a 6 ft Pendent drop.
• Q: Does this hoist include a chain container?
  A: Yes. The "U" suffix designates a factory-installed canvas chain container.
• Q: How many chain falls does this hoist use?
  A: The 7790A Series utilizes a single-fall load chain configuration.
• Q: What operating air pressure is recommended?
  A: Operate the hoist using clean, dry compressed air between 70 and 100 PSI (5–7 bar).

 Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
