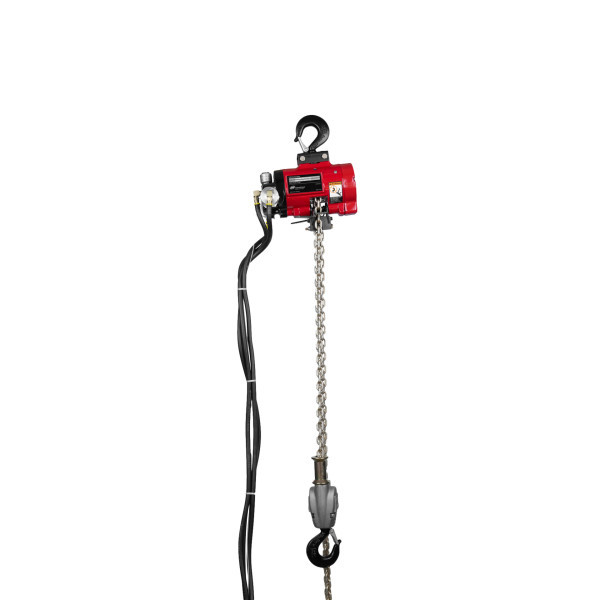

Ingersoll Rand 7790A-2C10-C6 ARO Series Air Chain Hoist | 1 Ton Capacity | 10 ft Lift | 6 ft Drop | Steel Snap Hook | Pendent Control

Designed for demanding industrial lifting applications, the Ingersoll Rand 7790A-2C10-C6 ARO Series Air Chain Hoist delivers a 2,200 lb (1 Metric Ton) lifting capacity with a 10 ft lift and 6 ft Pendent drop. Powered by compressed air, this pneumatic chain hoist is well suited for manufacturing, assembly, maintenance, and production facilities where reliable, continuous-duty lifting and precise load positioning are required.

Built on the proven ARO 7790A platform, this configuration features Pendent Control and steel snap hooks for secure suspension and load attachment. A compact planetary gear transmission, self-cooling rotary air motor, and spring-applied, air-released automatic disc brake provide dependable lifting performance while securely holding suspended loads whenever the air supply is interrupted.

Type: Air Chain Hoist | Series: ARO 7790A Series | Model: 7790A-2C10-C6 | SKU: 7790A-2C10-C6 | Capacity: 2,200 lb (1 Metric Ton) | Lift: 10 ft | Pendent Drop: 6 ft | Control Type: Pendent Control | Top Suspension: Steel Snap Hook | Bottom Suspension: Steel Snap Hook | Chain Falls: 1 | Rated Lift Speed: 26 ft/min (7.9 m/min) | No Load Lift Speed: 37 ft/min (11.3 m/min) | Rated Lowering Speed: 44 ft/min (13.4 m/min) | No Load Lowering Speed: 31 ft/min (9.5 m/min) | Hook Mount Headroom: 18.9 in (480.1 mm) | Trolley Mount Headroom: 15 in (381 mm) | Chain Size: 0.312 x 0.858 in | Chain Weight: 0.9 lb/ft (0.4 kg/ft) | Net Weight (10 ft Lift): 62 lb (28.1 kg) | Working Pressure: 70–100 PSI (5–7 bar) | Air Consumption @ Rated Load: 70 CFM (1.98 m³/min) | Air Inlet: 1/2 in NPT | Sound Level: 85 dBA

Features:

• 2,200 lb (1 metric ton) lifting capacity for industrial overhead lifting applications.
• 10 ft lift accommodates routine production, maintenance, and assembly operations.
• 6 ft Pendent drop provides convenient operator access from floor level.

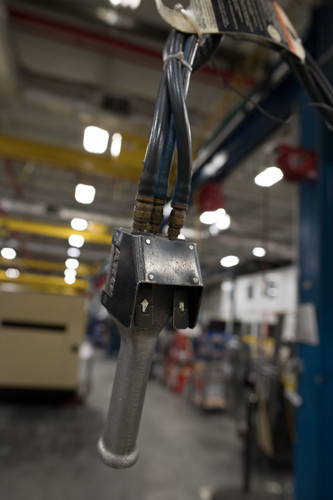

• Pendent Control delivers smooth and accurate load positioning.

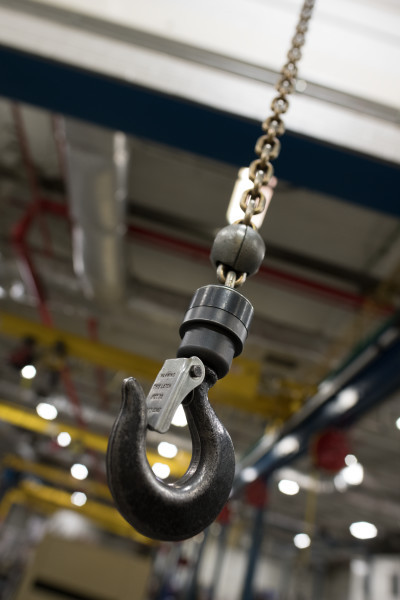

• Steel snap hooks provide secure upper suspension and lower load attachment.
• Single-fall load chain design minimizes headroom while maintaining lifting efficiency.
• Planetary gear transmission provides efficient power transfer and reliable operation.
• Spring-applied, air-released automatic disc brake securely holds suspended loads if air pressure is interrupted.
• 100% duty cycle supports continuous industrial service.
• Operates on standard 70–100 PSI compressed air systems.

Made in USA:

Applications:

• Manufacturing facilities.
• Production and assembly lines.
• Maintenance and repair operations.
• Machine shops and fabrication facilities.
• General industrial overhead lifting requiring 1-ton capacity and Pendent Control.

FAQs:

• Q: What is the lifting capacity of this hoist?
  A: This model is rated for 2,200 lb (1 metric ton).
• Q: What lift height and Pendent drop are supplied?
  A: This configuration includes a 10 ft lift and a 6 ft Pendent drop.
• Q: How many chain falls does the 7790A Series use?
  A: The 7790A Series utilizes a single-fall load chain configuration.
• Q: What size load chain does this hoist use?
  A: The load chain size is 0.312 × 0.858 in.
• Q: What operating air pressure is recommended?
  A: Operate the hoist using clean, dry compressed air between 70 and 100 PSI (5–7 bar).
