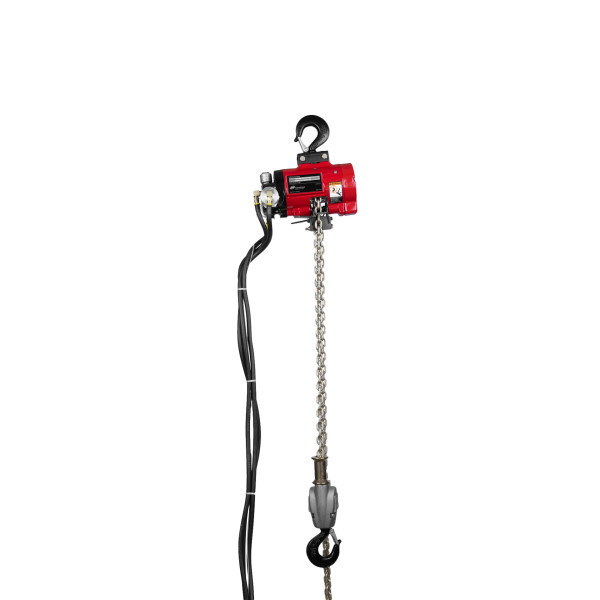

Ingersoll Rand 7776E-2C21-C17U ARO Series Air Chain Hoist | 1 Ton Capacity | 21 ft Lift | 17 ft Drop | Steel Snap Hook | Pendent Control

Designed for demanding industrial lifting applications, the Ingersoll Rand 7776E-2C21-C17U ARO Series Air Chain Hoist delivers a 2,200 lb (1 Metric Ton) lifting capacity with a 21 ft lift and 17 ft Pendent drop. Powered by compressed air, this pneumatic chain hoist provides dependable lifting performance without requiring electrical power, making it ideal for manufacturing, maintenance, assembly, and production environments where continuous-duty operation and precise load positioning are essential.

This configuration features Pendent control, steel snap hooks, and a canvas chain container for organized chain storage during operation. The ARO 7776E Series incorporates a compact planetary gear transmission, a powerful self-cooling rotary air motor, and a self-adjusting, spring-applied, air-released disc brake that securely holds suspended loads whenever the air supply is interrupted. Its rugged modular construction simplifies maintenance while delivering dependable long-term service.

Type: Air Chain Hoist | Series: ARO 7700 Series | Model: 7776E-2C21-C17U | SKU: 7776E-2C21-C17U | Capacity: 2,200 lb (1 Metric Ton) | Lift: 21 ft | Pendent Drop: 17 ft | Control Type: Pendent Control | Top Suspension: Steel Snap Hook | Bottom Suspension: Steel Snap Hook | Chain Container: Canvas | Chain Falls: 2 | Rated Lift Speed: 21 ft/min (6.4 m/min) | No-Load Lift Speed: 36 ft/min (11 m/min) | Rated Lowering Speed: 56 ft/min (17.1 m/min) | No-Load Lowering Speed: 30 ft/min (9.1 m/min) | Hook Mount Headroom: 21.7 in (551 mm) | Trolley Mount Headroom: 20.5 in (521 mm) | Chain Size: 0.25 x 0.75 in | Chain Weight: 0.6 lb/ft (0.3 kg/ft) | Working Pressure: 70–100 PSI (5–7 bar) | Air Consumption @ Rated Load: 70 CFM (1.98 m³/min) | Air Inlet: 1/2 in NPT

Features:

• 2,200 lb (1 metric ton) lifting capacity for demanding industrial material handling applications.
• 21 ft lift provides extended vertical travel for high-reach lifting tasks.
• 17 ft Pendent drop allows comfortable operation from floor level.
• Canvas chain container safely stores excess load chain during operation.
• Steel snap hooks provide secure upper suspension and lower load attachment.
• 100% duty cycle supports continuous industrial operation.
• Planetary gear transmission delivers efficient power transfer and dependable lifting performance.
• Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads whenever the air supply is interrupted.
• Operates on 70–100 PSI (5–7 bar) compressed air systems with a 1/2 in NPT air inlet.

Made in USA:

Applications:

• Manufacturing and production facilities.
• Assembly operations requiring dependable overhead lifting.
• Industrial maintenance departments.
• Machine shops and fabrication facilities.
• General overhead lifting applications requiring extended lift height and organized chain storage.

FAQs:

• Q: What is the lifting capacity of the 7776E-2C21-C17U?
  A: This model is rated to lift 2,200 lb (1 metric ton).
• Q: What lift and Pendent drop does this configuration provide?
  A: This model is configured with a 21 ft lift and a 17 ft Pendent drop.
• Q: What does the "U" suffix indicate?
  A: The "U" designation indicates the hoist is supplied with a factory-installed canvas chain container.
• Q: How many chain falls does this hoist use?
  A: This 1-ton model utilizes a two-fall load chain configuration.
• Q: What operating air pressure is required?
  A: The recommended operating pressure is 70–100 PSI (5–7 bar).
