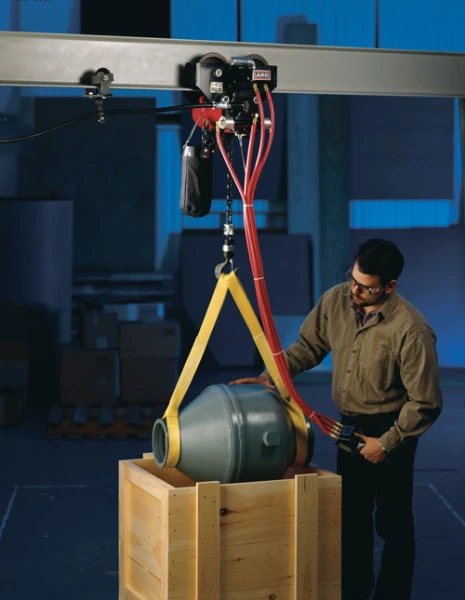

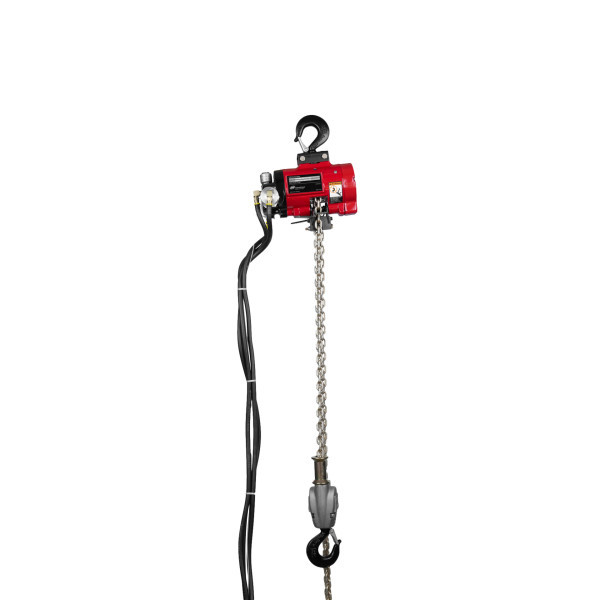

Designed for demanding industrial lifting applications, the Ingersoll Rand 7776E-2C10-C6U ARO Series Air Chain Hoist delivers a 2,200 lb (1 Metric Ton) lifting capacity with a 10 ft lift and 6 ft Pendent control drop. Powered by compressed air, this pneumatic chain hoist is engineered for continuous-duty service, providing smooth, precise load handling without electrical power. Its rugged design makes it well suited for manufacturing, assembly, maintenance, and production environments where reliability and uptime are critical.
The 7776E Series features a compact planetary gear transmission, powerful self-cooling rotary motor, and a self-adjusting air-released disc brake for dependable load holding. This configuration includes Pendent control, steel snap hooks, and a canvas chain container (U option) for safe chain storage during operation.
Type: Air Chain Hoist | Series: ARO 7700 Series | Model: 7776E-2C10-C6U | SKU: 7776E-2C10-C6U | Capacity: 2,200 lb (1 Metric Ton) | Lift: 10 ft | Pendent Control Drop: 6 ft | Control: Pendent Control | Top Suspension: Steel Snap Hook | Bottom Suspension: Steel Snap Hook | Chain Falls: 2 | Hook Mount Headroom: 21.7 in | Trolley Mount Headroom: 20.5 in | Rated Lift Speed: 21 ft/min (6.4 m/min) | No-Load Lift Speed: 36 ft/min (11 m/min) | Rated Lowering Speed: 56 ft/min (17.1 m/min) | No-Load Lowering Speed: 30 ft/min (9.1 m/min) | Chain Size: 0.25 x 0.75 in | Working Pressure: 70–100 PSI (5–7 bar) | Air Consumption @ Rated Load: 70 CFM (1.98 m³/min) | Air Inlet: 1/2 in NPT | Net Weight: 53 lb (24.1 kg) | Chain Container: Canvas
Features:
- 2,200 lb (1 metric ton) lifting capacity for demanding industrial material handling.
- 10 ft lift with 6 ft Pendent control for accurate and convenient operation.
- The canvas chain container keeps the excess load chain organized during lifting.
- Exceptional slow-speed control provides precise load spotting.
- Powerful self-cooling rotary motor maintains consistent performance during continuous-duty operation.
- Planetary gear transmission provides efficient power transfer with reduced maintenance.
- Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads.
- Motor and gearing deliver fast lifting speeds while maintaining low air consumption.
Made in USA:
Applications:
- Manufacturing and production facilities.
- Assembly line material handling.
- Industrial maintenance operations.
- Machine shops and fabrication facilities.
- Warehousing and general overhead lifting applications.
FAQs:
- Q: What is the lifting capacity of the 7776E-2C10-C6U?
A: This hoist is rated for 2,200 lb (1 metric ton). - Q: What does the "U" suffix indicate?
A: The "U" option designates a factory-supplied canvas chain container. - Q: How many chain falls does this hoist use?
A: This 1-ton model utilizes 2 chain falls. - Q: What operating air pressure is required?
A: The recommended operating pressure is 70–100 PSI (5–7 bar). - Q: What type of suspension does this model use?
A: It is equipped with steel snap hooks for both the top and bottom suspension points.
| SKU | Capacity | Hook Mount Headroom | Trolley Mount Headroom | Lifting Speed | Lowering Speed | Chain Size | Chain Weight (per foot of lift) | Net Weight w/10 ft of lift | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lb | metric tons | # Falls | in | mm | in | mm | Rated Load | No Load | Rated Load | No Load | lb | kg | lb | kg | ||||||
| ft/min | m/min | ft/min | m/min | ft/min | m/min | ft/min | m/min | |||||||||||||
| 7770E | 275 | 0.125 | 1 | 17 | 431.8 | 16.9 | 429.3 | 110 | 33.5 | 192 | 58.5 | 275 | 83.8 | 159 | 48.5 | 0.25 x 0.75 | 0.6 | 0.3 | 41 | 18.6 |
| 7718E | 550 | 0.25 | 1 | 17 | 431.8 | 16.9 | 429.3 | 82 | 25 | 184 | 56.1 | 224 | 68.3 | 153 | 46.6 | 0.25 x 0.75 | 0.6 | 0.3 | 41 | 18.6 |
| 7756E | 1,100 | 0.50 | 1 | 17 | 431.8 | 16.9 | 429.3 | 41 | 12.5 | 72 | 22 | 112 | 34.1 | 60 | 18.3 | 0.25 x 0.75 | 0.6 | 0.3 | 41 | 18.6 |
| 7776E | 2,200 | 1 | 2 | 21.7 | 551.2 | 20.5 | 520.7 | 21 | 6.4 | 36 | 11 | 56 | 17.1 | 30 | 9.1 | 0.25 x 0.75 | 1.7 | 0.5 | 53 | 24 |
| 7790A | 2,200 | 1 | 1 | 18.9 | 480.1 | 15 | 381 | 26 | 7.9 | 37 | 11.3 | 44 | 13.4 | 31 | 9.5 | 0.312 x 0.858 | 0.9 | 0.4 | 62 | 28.1 |
| 7792A | 4,400 | 2 | 2 | 22.4 | 569 | 18 | 457.2 | 12 | 3.7 | 20 | 6.1 | 24 | 7.3 | 17 | 5.2 | 0.312 x 0.858 | 1.8 | 0.8 | 81 | 36.7 |
Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog
Need more feet of chain or a longer Pendent hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
