Ingersoll Rand 7776E-0C10-C6 ARO Series Air Chain Hoist | 1 Ton Capacity | 10 ft Lift | 6 ft Drop | Steel Snap Hook

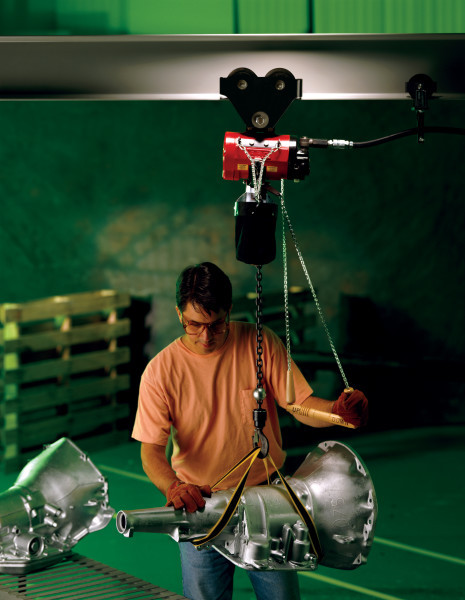

Ingersoll Rand 7776E-0C10-C6 ARO Series Air Chain Hoist is designed for reliable overhead lifting in manufacturing plants, maintenance facilities, assembly operations, and industrial production environments. Featuring a 2,200 lb (1 Metric Ton) lifting capacity, a 10 ft lift, and steel snap hook suspension, this pneumatic chain hoist delivers dependable performance for repetitive material handling applications while eliminating the need for electrical power. The 0C configuration is supplied without a pull chain or Pendent control and is intended for applications utilizing remote or custom control arrangements as specified by the manufacturer.

Built with the proven ARO 7776E platform, this hoist incorporates a compact planetary gear transmission, a self-cooling rotary air motor, and a self-adjusting, spring-applied, air-released disc brake that securely holds suspended loads whenever the air supply is interrupted. Its rugged modular construction simplifies maintenance while providing long-lasting performance in demanding industrial environments.

Type: Air Chain Hoist | Series: ARO 7700 Series | Model: 7776E-0C10-C6 | SKU: 7776E-0C10-C6 | Capacity: 2,200 lb (1 Metric Ton) | Lift: 10 ft | Control Type: No Control (0C Configuration) | Top Suspension: Steel Snap Hook | Bottom Suspension: Steel Snap Hook | Chain Falls: 2 | Rated Lift Speed: 21 ft/min (6.4 m/min) | No-Load Lift Speed: 36 ft/min (11 m/min) | Rated Lowering Speed: 56 ft/min (17.1 m/min) | No-Load Lowering Speed: 30 ft/min (9.1 m/min) | Hook Mount Headroom: 21.7 in (551 mm) | Trolley Mount Headroom: 20.5 in (521 mm) | Chain Size: 0.25 x 0.75 in | Chain Weight: 0.6 lb/ft (0.3 kg/ft) | Net Weight (10 ft Lift): 53 lb (24.1 kg) | Working Pressure: 70–100 PSI (5–7 bar) | Air Consumption @ Rated Load: 70 CFM (1.98 m³/min) | Air Inlet: 1/2 in NPT

Features:

• 2,200 lb (1 metric ton) lifting capacity for demanding industrial material handling.
• 10 ft lift accommodates a wide variety of overhead lifting applications.
• 0C configuration supplied without pull chain or Pendent control for specialized installations.

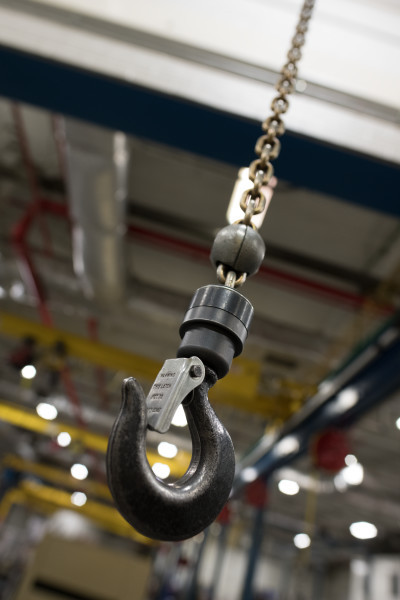

• Steel snap hooks provide secure upper suspension and lower load attachment.
• 100% duty cycle supports continuous industrial operation.
• Planetary gear transmission delivers efficient power transfer and dependable lifting performance.
• Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads whenever air supply is interrupted.
• Operates on 70–100 PSI (5–7 bar) compressed air systems with a 1/2 in NPT air inlet.

Made in USA:

Applications:

• Manufacturing and production facilities.
• Machine shops and fabrication operations.
• Industrial maintenance departments.
• Custom lifting systems utilizing remote or specialized controls.
• General overhead material handling requiring 1-ton lifting capacity.

FAQs:

• Q: What is the lifting capacity of the 7776E-0C10-C6?
  A: This model is rated to lift 2,200 lb (1 metric ton).
• Q: What does the 0C configuration indicate?
  A: According to the manufacturer model designation, this configuration is supplied without pull chain or Pendent control and is intended for applications requiring an alternate control arrangement.
• Q: How many chain falls does this hoist use?
  A: This 1-ton model utilizes a two-fall load chain configuration.
• Q: What operating air pressure is required?
  A: The recommended operating pressure is 70–100 PSI (5–7 bar).
• Q: What type of suspension is supplied?
  A: This model includes steel snap hooks for both the upper suspension and lower load hook.
