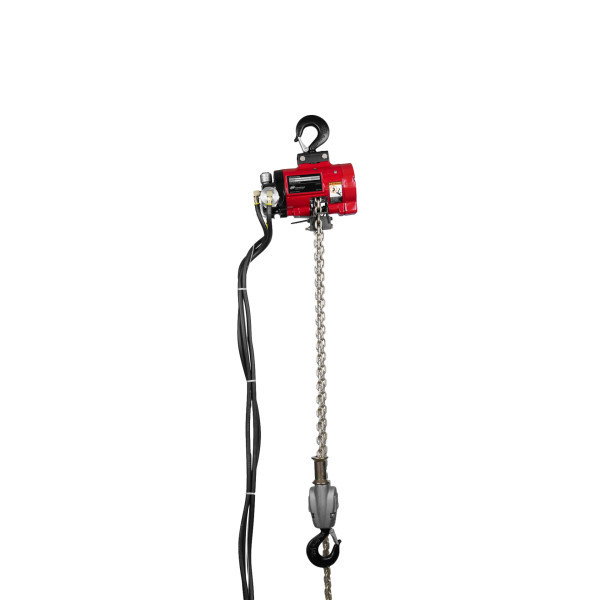

Designed for dependable light-duty material handling in manufacturing facilities, maintenance departments, assembly workstations, and industrial production environments, the Ingersoll Rand 7770E-2C10-K6S ARO Series Air Chain Hoist delivers a 275 lb (125 kg / 0.125 Metric Ton) lifting capacity with a 10 ft lift and 6 ft Pendent drop. Powered by compressed air, this compact pneumatic hoist provides fast lifting speeds, smooth operation, and precise load control, making it an ideal solution for repetitive lifting applications where compressed air is readily available.
This ARO 7700 Series configuration is equipped with a Bullard hook with manual close latch for secure load attachment and a Pendent control for responsive lifting and lowering. Its lightweight construction, compact footprint, and dependable pneumatic motor make it well suited for handling tools, fixtures, components, and other light industrial loads in production and maintenance environments.
Type: Air Chain Hoist | Series: ARO 7700 Series | Model: 7770E-2C10-K6S | Capacity: 275 lb (125 kg / 0.125 Metric Ton) | Lift: 10 ft | Pendent Drop: 6 ft | Control: Pendent Control | Bottom Hook: Bullard Hook, Manual Close | Chain Falls: 1 | Rated Lift Speed: 110 ft/min (33.5 m/min) | No-Load Lift Speed: 192 ft/min (58.5 m/min) | Rated Lowering Speed: 275 ft/min (83.8 m/min) | No-Load Lowering Speed: 159 ft/min (48.5 m/min) | Hook Mount Headroom: 17 in (431.8 mm) | Trolley Mount Headroom: 16.9 in (429.3 mm) | Chain Size: 0.25 × 0.75 in | Chain Weight: 0.6 lb/ft (0.3 kg/ft) | Net Weight (10 ft Lift): 41 lb (18.6 kg)
Features:
- 275 lb (125 kg / 0.125 Metric Ton) lifting capacity for handling lightweight industrial equipment, tools, fixtures, and components.
- Pendent control provides smooth and responsive lifting and lowering for accurate load positioning.
- Bullard hook with manual close latch provides a secure attachment point for specialized lifting applications.
- High rated lifting speed of 110 ft/min (33.5 m/min) improves productivity during repetitive lifting operations.
- Compact pneumatic design delivers dependable operation using compressed air.
- Single-fall load chain configuration delivers efficient lifting performance for light-duty service.
- Compact, lightweight construction simplifies installation where overhead space is limited.
- Suitable for manufacturing, maintenance, assembly, and general industrial material handling applications.
Made in USA:
Applications:
- Assembly workstations handling lightweight parts and subassemblies.
- Manufacturing facilities requiring rapid overhead lifting and positioning.
- Maintenance operations lifting pumps, motors, valves, and replacement components.
- Machine shops positioning tooling, fixtures, and workpieces.
- General industrial material handling utilizing compressed-air lifting equipment.
FAQs:
- Q: What is the lifting capacity of this hoist?
A: The 7770E model is rated for 275 lb (125 kg / 0.125 Metric Ton). - Q: What type of hook is supplied with this configuration?
A: This model is equipped with a Bullard hook featuring a manual close latch for secure load engagement. - Q: What type of control does this hoist use?

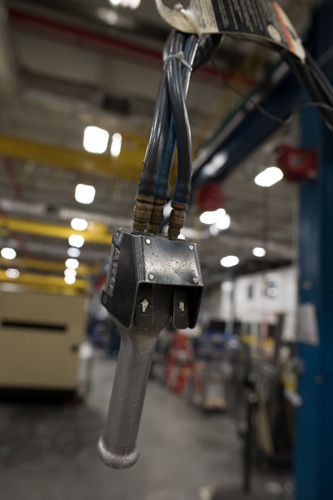

A: This configuration features a Pendent control that allows accurate raising and lowering of loads. - Q: What is the lifting height of this model?
A: This hoist is supplied with a 10 ft lift and a 6 ft Pendent drop for light-duty overhead lifting applications.
| SKU | Capacity | Hook Mount Headroom | Trolley Mount Headroom | Lifting Speed | Lowering Speed | Chain Size | Chain Weight (per foot of lift) | Net Weight w/10 ft of lift | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lb | metric tons | # Falls | in | mm | in | mm | Rated Load | No Load | Rated Load | No Load | lb | kg | lb | kg | ||||||
| ft/min | m/min | ft/min | m/min | ft/min | m/min | ft/min | m/min | |||||||||||||
| 7770E | 275 | 0.125 | 1 | 17 | 431.8 | 16.9 | 429.3 | 110 | 33.5 | 192 | 58.5 | 275 | 83.8 | 159 | 48.5 | 0.25 x 0.75 | 0.6 | 0.3 | 41 | 18.6 |
| 7718E | 550 | 0.25 | 1 | 17 | 431.8 | 16.9 | 429.3 | 82 | 25 | 184 | 56.1 | 224 | 68.3 | 153 | 46.6 | 0.25 x 0.75 | 0.6 | 0.3 | 41 | 18.6 |
| 7756E | 1,100 | 0.50 | 1 | 17 | 431.8 | 16.9 | 429.3 | 41 | 12.5 | 72 | 22 | 112 | 34.1 | 60 | 18.3 | 0.25 x 0.75 | 0.6 | 0.3 | 41 | 18.6 |
| 7776E | 2,200 | 1 | 2 | 21.7 | 551.2 | 20.5 | 520.7 | 21 | 6.4 | 36 | 11 | 56 | 17.1 | 30 | 9.1 | 0.25 x 0.75 | 1.7 | 0.5 | 53 | 24 |
| 7790A | 2,200 | 1 | 1 | 18.9 | 480.1 | 15 | 381 | 26 | 7.9 | 37 | 11.3 | 44 | 13.4 | 31 | 9.5 | 0.312 x 0.858 | 0.9 | 0.4 | 62 | 28.1 |
| 7792A | 4,400 | 2 | 2 | 22.4 | 569 | 18 | 457.2 | 12 | 3.7 | 20 | 6.1 | 24 | 7.3 | 17 | 5.2 | 0.312 x 0.858 | 1.8 | 0.8 | 81 | 36.7 |
Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog
Need more feet of chain or a longer Pendent hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
- Type
- Air Chain Hoist
- Series
- ARO Series
- Capacity (tons)
- 1/8
- Capacity (lbs)
- 275
- Lift (ft.)
- 10
- Drop (ft.)
- 6
- Control
- Pendent Control
- Top Suspension
- Steel Snap Hook
- Bottom Suspension
- Bullard Hook, Manual Close
- Chain Falls
- 1
- Hook Mount Headroom (in.)
- 17
- Trolley Mount Headroom (in.)
- 16.9
- Lifting Speed Rated Load (ft/min)
- 110
- Lifting Speed Rated Load (m/min)
- 33.5
- Lifting Speed No Load (ft/min)
- 192
- Lifting Speed No Load (m/min)
- 58.5
- Lowering Speed Rated Load (ft/min)
- 275
- Lowering Speed Rated Load (m/min)
- 83.8
- Lowering Speed No Load (ft/min)
- 159
- Lowering Speed No Load (m/min)
- 48.5
- Chain Size
- 0.25 x 0.75
