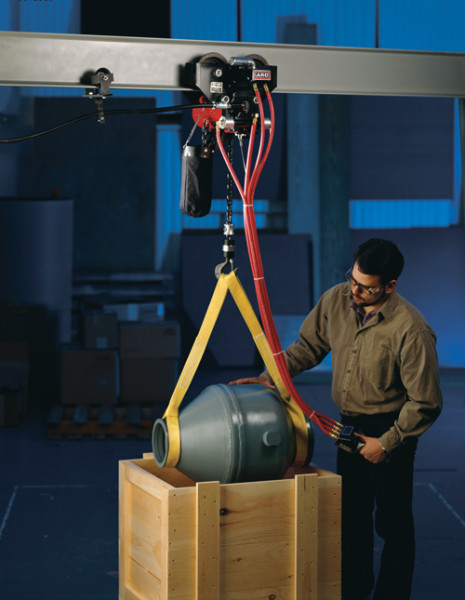

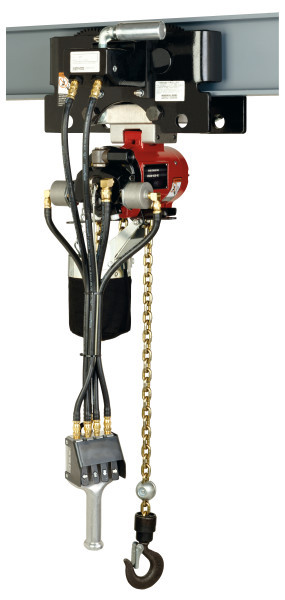

Designed for dependable light-duty material handling in manufacturing facilities, maintenance departments, assembly workstations, and industrial production environments, the Ingersoll Rand 7770E-2C10-C6U ARO Series Air Chain Hoist delivers a 275 lb (125 kg / 0.125 metric ton) lifting capacity with a 10 ft lift and 6 ft Pendent drop. Powered by compressed air, this compact pneumatic hoist provides fast lifting speeds, smooth operation, and precise load control, making it ideal for repetitive lifting applications where electrical power is not preferred.
Part of the Ingersoll Rand ARO 7700 Series, this air chain hoist features a lightweight, compact design for easy installation and operation in confined workspaces. Equipped with a steel snap hook and Pendent control, it allows operators to safely lift, lower, and position components with excellent speed and accuracy. Its pneumatic motor is engineered for dependable industrial service, helping improve productivity in continuous material handling applications.
Type: Air Chain Hoist | Series: ARO 7700 Series | Model: 7770E-2C10-C6U | Capacity: 275 lb (125 kg / 0.125 Metric Ton) | Lift: 10 ft | Pendent Drop: 6 ft | Control: Pendent Control | Bottom Hook: Steel Snap Hook | Chain Falls: 1 | Rated Lift Speed: 110 ft/min (33.5 m/min) | No-Load Lift Speed: 192 ft/min (58.5 m/min) | Rated Lowering Speed: 275 ft/min (83.8 m/min) | No-Load Lowering Speed: 159 ft/min (48.5 m/min) | Hook Mount Headroom: 17 in (431.8 mm) | Trolley Mount Headroom: 16.9 in (429.3 mm) | Chain Size: 0.25 × 0.75 in | Chain Weight: 0.6 lb/ft (0.3 kg/ft) | Net Weight (10 ft Lift): 41 lb (18.6 kg)
Features:
- 275 lb (125 kg / 0.125 metric ton) lifting capacity for handling light industrial equipment, tools, fixtures, and components.
- Compact pneumatic design provides dependable lifting performance using compressed air.
- High rated lifting speed of 110 ft/min helps improve productivity during repetitive lifting operations.
- Pendent control enables smooth, accurate raising and lowering for precise load positioning.

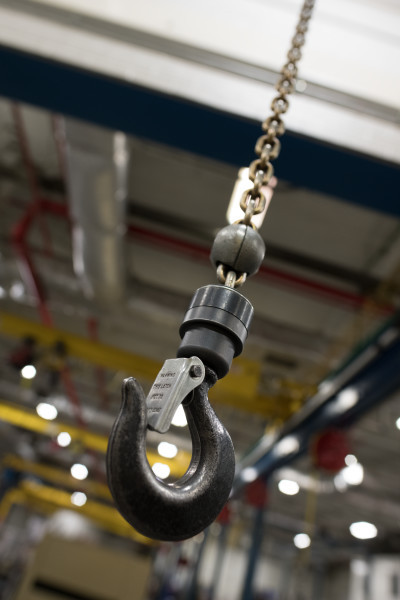

- Steel snap hook provides a secure attachment point for overhead lifting applications.
- Single-fall load chain configuration delivers efficient lifting performance for light-duty material handling.
- Lightweight construction simplifies installation and operation in confined workspaces.
- Designed for continuous industrial material handling and assembly applications.
Made in USA:
Applications:
- Assembly workstations handling lightweight components and subassemblies.
- Manufacturing facilities requiring rapid lifting and positioning of production parts.
- Maintenance departments lifting pumps, valves, motors, and replacement components.
- Machine shops and fabrication facilities handling tooling and fixtures.
- General industrial material handling using compressed-air systems.
FAQs:
- Q: What is the lifting capacity of this hoist?
A: The 7770E is rated to lift 275 lb (125 kg / 0.125 metric ton). - Q: What is the lifting height of this configuration?
A: This model is supplied with a 10 ft lift for overhead material handling applications. - Q: What does the 6 ft Pendent drop indicate?
A: The Pendent control extends approximately 6 feet below the hoist, allowing the operator to comfortably control lifting and lowering operations. - Q: What industries commonly use this hoist?
A: The 7770E is commonly used in manufacturing, assembly, maintenance, machine shops, and general industrial material handling applications requiring a lightweight pneumatic hoist.
| SKU | Capacity | Hook Mount Headroom | Trolley Mount Headroom | Lifting Speed | Lowering Speed | Chain Size | Chain Weight (per foot of lift) | Net Weight w/10 ft of lift | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lb | metric tons | # Falls | in | mm | in | mm | Rated Load | No Load | Rated Load | No Load | lb | kg | lb | kg | ||||||
| ft/min | m/min | ft/min | m/min | ft/min | m/min | ft/min | m/min | |||||||||||||
| 7770E | 275 | 0.125 | 1 | 17 | 431.8 | 16.9 | 429.3 | 110 | 33.5 | 192 | 58.5 | 275 | 83.8 | 159 | 48.5 | 0.25 x 0.75 | 0.6 | 0.3 | 41 | 18.6 |
| 7718E | 550 | 0.25 | 1 | 17 | 431.8 | 16.9 | 429.3 | 82 | 25 | 184 | 56.1 | 224 | 68.3 | 153 | 46.6 | 0.25 x 0.75 | 0.6 | 0.3 | 41 | 18.6 |
| 7756E | 1,100 | 0.50 | 1 | 17 | 431.8 | 16.9 | 429.3 | 41 | 12.5 | 72 | 22 | 112 | 34.1 | 60 | 18.3 | 0.25 x 0.75 | 0.6 | 0.3 | 41 | 18.6 |
| 7776E | 2,200 | 1 | 2 | 21.7 | 551.2 | 20.5 | 520.7 | 21 | 6.4 | 36 | 11 | 56 | 17.1 | 30 | 9.1 | 0.25 x 0.75 | 1.7 | 0.5 | 53 | 24 |
| 7790A | 2,200 | 1 | 1 | 18.9 | 480.1 | 15 | 381 | 26 | 7.9 | 37 | 11.3 | 44 | 13.4 | 31 | 9.5 | 0.312 x 0.858 | 0.9 | 0.4 | 62 | 28.1 |
| 7792A | 4,400 | 2 | 2 | 22.4 | 569 | 18 | 457.2 | 12 | 3.7 | 20 | 6.1 | 24 | 7.3 | 17 | 5.2 | 0.312 x 0.858 | 1.8 | 0.8 | 81 | 36.7 |
Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog
Need more feet of chain or a longer Pendent hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
